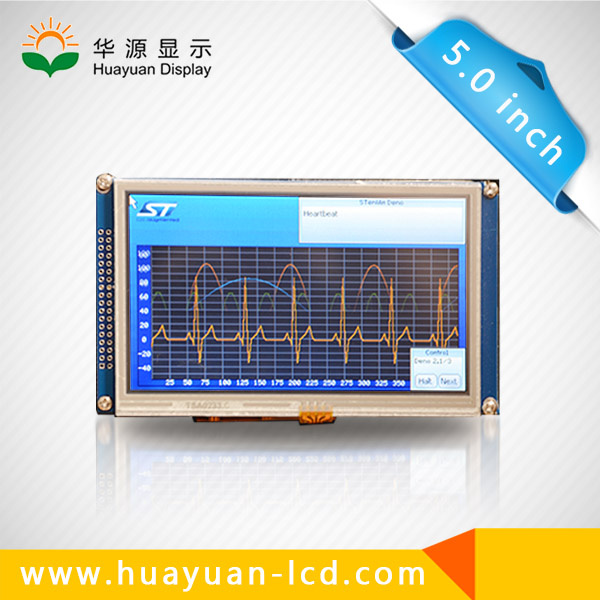

| Prod Model: |
TFT103A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| ODM: |
OEM Product Design/ Production |
| Certification: |
RoHS and ISO 9001:2008 Certification |
| LCD Type: |
TFT |
| Active Area(W×h): |
108.00X64.80 |
| Number Of Dots: |
800×480 |
| Controller: |
Ili6122+Ili5960 |
| Interface: |
RGB888 |
| Application: |
Mobile Phone |
| Aspect Ratio: |
16:9 |
| Feature: |
LED Backlight Display |
| Type: |
TFT |
| Widescreen: |
Not Widescreen |
| Response Time: |
10ms |
| 3D: |
Not 3D |
| Screen Size: |
5" |
| Optimum Resolution: |
800*480 |
| Interface Type: |
RGB |
Product Description
LCD Type TFT
Display color 16.7M
Viewing Direction 12 O'Clock
Operating temperature -20~+70 ºC
Storage temperature -30~+80 ºC
Active Area(W×H) 108.00X64.80 mm
Number of Dots 800×480 dots
Controller ILI6122+ILI5960
Power Supply Voltage 3.3 V
Backlight 10X2 LEDs (white) pcs
Interface RGB888
| Model NO. | TFT103A |
| lcd size | 5.0 inch |
| Size:Length*Width*Highth: | 120.7*75.8*3.1 |
| Interface | RGB |
| Resolution | 800*480 |
| (luminance)cd/m² | 1000 cd/m² |
| with or without touch panel (TP) | / |
| LED light | 20LED |
| FPC PINs | 40 |
| Diver IC | ILI6122+ILI5960 |
| Supply Voltage Of Logic | VDD -0.3 To 3.6V |
| Work Temp | -20 To +70c |
| Storage Temp | -30 To +80c |
| Viewing Angle | 12 O' Clock |
| Related products | 2.8" 3.2" 3.5" 4.3" 5" 5.6" 7" 8" 9" 10.1" 17" |
| LCD Module application | Game Machine.Car Audio DVD.GPS.cash register.Industial Automation.Office Automation.MedicalEquipment.LCD Monitor.DVDPlayer.POS machine. etc. |
| FAQ |
| Q1: Are you a factory or trading company? |
| A1: We are manufacturer. |
| Please refer to our company show |
| Q2: Where is your factory located? How can I visit there? |
A2: Our factory is located in Hunan Province, China.
Welcome to visit our factory. We could pick you up in Changsha Huanghua Airport, or High-speed train Zhuzhou Xi station. |
| Q3: How can I get some samples? |
A3: We don't provide free one, but we will minus the extra price when you reorder with the suitable quantity.
And you will win the 3% discount. |
| Q4: How does your factory do regarding quality control? |
A4: Quality is the priority. We always attach great importance to quality controlling from the start to the end.
Our factory has gained ISO9001, RoHS, SGS certification. |
| Packaging Details: In an anti-statics bag packed in carton or according to the customer's requirement |
| Delivery time: 5-7 days for sample and 25-30 days for mass production. |
| Cooperate Supplier: Tianma, Innolux, Sumsung, Varitronix, CPT, BOE, HSD, Chi mei |
| Exhibition information: Our company will participate 2016 electronics exhibition in Munich, Germany. |
| Related products: |
Character lcd (8x1, 8x2, 16x1, 16x2, 16x4, 20x2, 20x4, etc. )
Graphic lcd (122x32, 128x64, 192x64, 240x128, 320x240, etc. )
TFT LCD (1.44", 1.77", 2", 2.2", 2.4", 2.8", 3", 3.2", 3.5", 4", 4.3", 5", 5.5", 5.7", 6.2", 7", 8", 9", 9.7", 10.1", 10.2", 10.4", 17" and so on.
TN/STN/HTN/VA segment customized lcd
LED backlight panel
All kinds of LCD Module can customized. |
| Application: |
Autoelectronics, 3D&Shutter, Meters&Instrument, Telecommunication,
Domestic electrical appliance(Household appliance), Fuel dispensers, Office equipment,
Medical &health equipment, Business related facility, Education electronics. |
