| Prod Model: |
KT-616&KT-902 |
| Video System: |
NTSC/PAL Auto |
| Video Input: |
AV1/AV2 |
| Work Voltage: |
12V/24V Option |
| Function: |
DVR Option |
| Size: |
7inch(16:9) |
| Pixels: |
800*480*RGB |
| Warranty: |
14months |
| Camera Sensor: |
CMOS/CCD |
| Waterproof Rate: |
IP68~IP69k |
| TV Lines: |
480TV/560TV/700TV |
| Combination: |
MP3/MP4 Player |
| Placement: |
Dashboard |
| Certification: |
FCC |
| Voltage: |
12/24V |
| Audio Output: |
L/R Channel |
| Video Output: |
2 RCA |
Product Description
Reverse Camera In Car audio Video Surveillance Forklift Vehicle Car Camera Security Systems

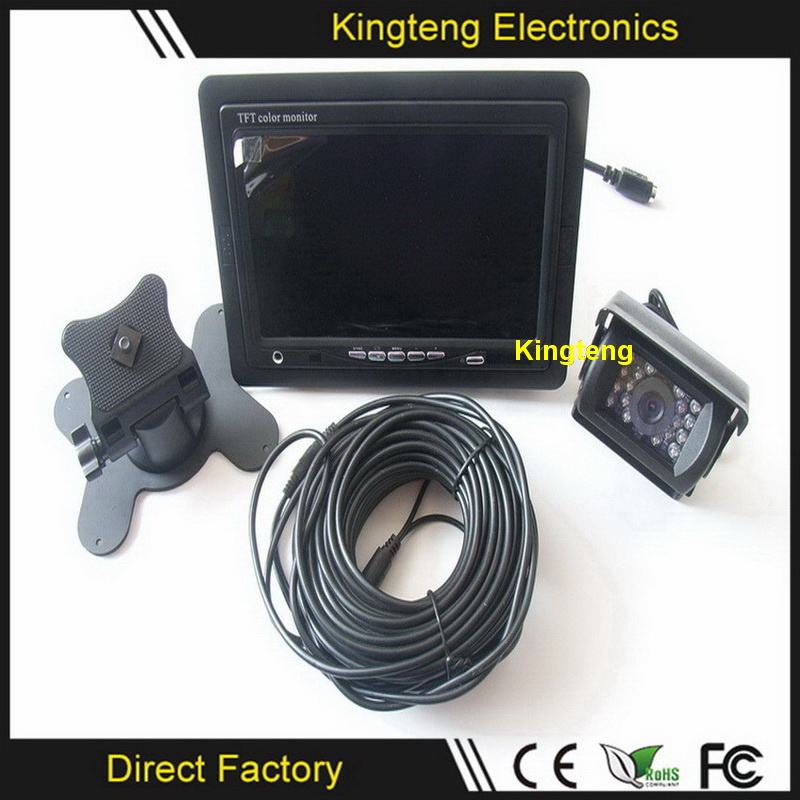

complete Kits include 1pcs 7 inch monitor+1pcs cameras+1pcs 10M video cables
Screen Specification
1.Screen Size:7Inch car rearview monitor
2.Power Supply:4W
3.Display Format:16:9/4:3
4.Resolution:800*480Pixels
5.Four video input AV1/AV2/AV3/AV4,Turn off on no signal
6.Consumption:About 4W
7.Work Temperature:-20degrees~70degrees
8.Storage Temperature:-30degrees~80degrees
9.Work Voltage DC12V~DC24V
10.Fit Position:Dashboard On
11.SD/USB/MP3/MP4/MP5 Function Option
Camera Specification
1/3 SONY CCD
Ip rating Ip69K
Images Sensors 1/3 Sony CCD
TV System PAL/NTSC
Effective Pixels 728X582/728X480
Sensing Area(mm) 4.9X3.7
Resolution(TV Lines)700
Min.IIIumination(Lua/F1.2)0
Horizontal Sync.Frequency(KHZ) 15.625/15.734
Vertical Sync.Frequency(HZ) 50/60
Video Output:75 Ohm
Gamma Consumption:0.45
AGC:Auto
BLC :Auto
S/N ratio :Better than 48dB
Lens:F=1.9mm/F=2.0
Lens Angle(Deg.) : 120°
Current Consumption(mA) :300
Power Supply(DCV)12
Operating Temperature(Deg.C):-20+75(RH95% Max.)
Storage Temperature(Deg.C) :-40+85(RH95% Max .)
High resolution rearview camera that works at night or day Easy install the camera with a dvd player,sunvisor,monitor.NTS System and PAL system both can make.
Good night vision with color distance reference lines,can work with taillights even dark night
competitive advantage
1.Stable quality
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:14months
7.OEM,ODM welcome
Field of Application of Our Product:
Our products are mainly fit for the field of reversing,security and entertainment and widely used in Car,Bus,Coach,Truck,Fire engine,Mail car,Police car,Camper,Garbage truck,Agricultural vehicles etc.
Our Quality: All our products must test very serious one by one before shipping.Most of our products are supply for bus,Coach manufacture.
Our Warranty: 14 Month.Once the product have any quality problem from ours within 14 months,we will send brand new product to you after you sent defective product to us,so that you can resell it.About freiht cost,currently let's meet each other half-way.If the product have any problem after 14months,you also can send back them to us.We will free repair them for your,and send them to you together with your next order.Of course,we will charge cost if replace new part.
We should always tell the truth to our customers and honesty do business with our customers.All our customers are happy to do business and setup long-term business relatoinship with us.
Guangzhou Kingteng Electronics Co., Ltd. Was established in Guangzhou in 2003. We are a hi-tech enterprise engaged in the R&D, production, and sale of car rear view camera, private design camera and monitor, unversal camera, Japan camera, Korea camera, USA frame camera, car special camera, car mirror monitor, car headrest, car LCD monitor, car rearview system, bus&truck rear view system, car camera and travel bus camera. Our products have been exported to Japan, South Korea, Europe, the United States, Russian and other countries and regions.
All of our products have passed IQC, QC, and QA tests strictly. To maintain our product qualification rate of 99.5%, before the products are dispatched, they all need to go through all kinds of tests, such as aging test, high-pressure waterproof test in Machine, quiver test, high temperature and low temperature test, and drop test. Welcome to visit our factory and face to face do business. OEM/ODM Welcome. Every month put new design products on market.
Holding the tenet of "the best administration, advanced technique, the best quality, first-class service", we guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.
Note: Waterproof, shockproof, high temperature resistance, humidity resistance, high definition
Installation: Loading position is of unity, the structure does not destroy the original car, combined with the car perfectly. Good hiding in the car could barely see the rear camera(Subject to loading the actual effect)
Competitive advantage
1. Stable quality
2. Most competitive price
3. On time delivery
4. Good aftersales service
5. All products must test one by one wartproof resistance and high/low temperature resistance
6. Warranty: 14months
7. OEM, ODM welcome
We should always tell the truth to our customers and honesty do business with our customers. All our customers are happy to do business and setup long-term business relatoinship with us.
