| Prod Model: |
KT-615W |
| Video System: |
NTSC/PAL Auto |
| Video Input: |
AV1/AV2/AV3/AV4 |
| Size: |
7 Inch(16:9) |
| Support: |
1camera/2cameras/3cameras/4cameras |
| Work Voltage: |
DC9V~DC32V Wide Voltage |
| Image Sensor: |
1/3 Sony CCD |
| TV Lines: |
700tvl |
| Waterproof Rate: |
IP68~IP69k |
| View Angle: |
120degrees |
| Warranty: |
14months |
| Placement: |
Dashboard |
| Certification: |
FCC |
| Voltage: |
9-36V |
| Audio Output: |
Digital Audio Coaxial |
| Video Output: |
Video |
| Combination: |
Wireless |
Product Description

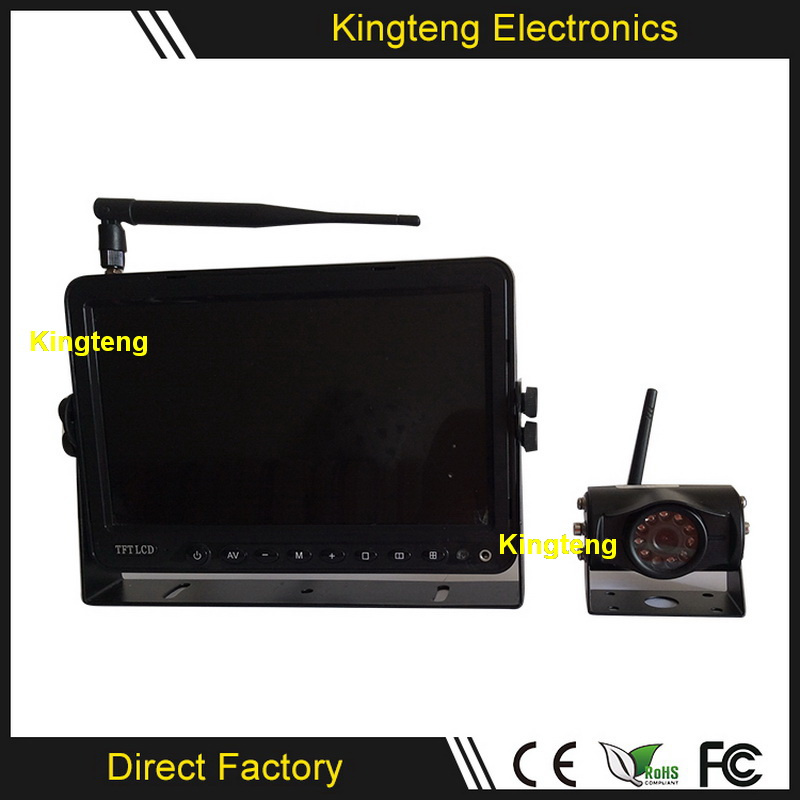

2.4G Digital Wireless Car Monitor +Wireless Rear View Camera System For Buses Trucks
Feature:
1.Wide Voltage DC9V~32V
2.Split 2CH,3CH,4CH are available
3.TV Antenna Amplifier help the wireless transimttion signal more stronger
4.CCD Wireless Camera
1.Package installation Details:
1.Wireless Monitor(1CH/2CH/3CH/4CH For choose)
2.Wireless bus/truck camera
3.Stand Holder bracket for Monitor
4.Trasformation Line
5.Remote Control
6.2.4G Indoor TV Antenna For Camera
7.2.4G Indoor TV Antenna For Monitor
8.2.4G Outdoor TV Antenna For Monitor
9.DC Power Line
2.Wireless Car Monitor Specification
Monitor Digital Screen TFT LCD Color
Size 7Inch
Connector Digital TTL
Resolution 800(RGB)×480
Max Display Range (mm) 153.60×86.64
Visible Angle (LR/UD) 140 / 110
Contrast 500:1
Volume (nits) 300
Response Time (ms) 25
Wireless Frequency( GHZ) CAM B:2.510G CAM L:2.468G
CAM R:2.370G CAM F:2.414G
Color System PAL/NTSC (AUTO)
Support Four Camera Inputs 1.0Vp-p75Ω
Audio Output(W) ≤1W
Loudspeaker φ4. 0cm,16Ω/1W
Connector DVI24+1
Power Source DC11-32V Free Power Input
Consumption MIN8W,MAX12W(with four wireless receivers ON)
External dimensions(mm) 185XW124XT48(without mounting
Weight 400g
3.Wireless Camera Specification
Image pick-up Device 1/3" SHARP COLOR CCD
Number of Pixels NTSC:510(H)×492(V);PAL:500(H)×582(V)
Horizontal Resolution 420 TV Lines
Auto Gain Control On/Off
S/N Ratio ≥48dB(AGC Off)
Usable Illumination 1 Lux(F:2.0)
Video Output 1.0Vp-p 75 ohm
Electronic Shutter Time Auto:NTSC 1/60~1/100,000Sec,PAL 1/50~100,000Sec;
Operation Temperature -10°C~+50°C RH95%Max
Storage Temperature -20°C~+60°C RH95%Max
Gamma Characterlstic 0.45
Usable IIIumination 0Lux(Built-in 18pcs IR LED)
White Balance ON/OFF
Water resistance Ip66
Scanning System NTSC:525Lines,60Field/sec,PAL:625 Lines 50 Field/sec
Sync System Internal Synchronization
Power Supply DC12-24V±10%
2.4GHZ Transmitter With 2.414/2.432/2.450/2.468GHZ Wireless Transmitter
Transmission power 10mW/CE;2mW/FCC
Shockproof Grade 10G
Viewing Angle 130°
Weight 280g
competitive advantage
1.Stable quality
2.Most competitive price
3.On time delivery
4.Good aftersales service
5.All products must test one by one wartproof resistance and high/low temperature resistance
6.Warranty:14months
7.OEM,ODM welcome
Guangzhou Kingteng Electronics Co., Ltd. was established in Guangzhou in 2003. We are a hi-tech enterprise engaged in the R&D, production, and sale of car rear view camera,car special camera,car bus camera.we guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.
We should always tell the truth to our customers and honesty do business with our customers.All our customers are happy to do business and setup long-term business relatoinship with us.
Guangzhou Kingteng Electronics Co., Ltd. Was established in Guangzhou in 2003. We are a hi-tech enterprise engaged in the R&D, production, and sale of car rear view camera, private design camera and monitor, unversal camera, Japan camera, Korea camera, USA frame camera, car special camera, car mirror monitor, car headrest, car LCD monitor, car rearview system, bus&truck rear view system, car camera and travel bus camera. Our products have been exported to Japan, South Korea, Europe, the United States, Russian and other countries and regions.
All of our products have passed IQC, QC, and QA tests strictly. To maintain our product qualification rate of 99.5%, before the products are dispatched, they all need to go through all kinds of tests, such as aging test, high-pressure waterproof test in Machine, quiver test, high temperature and low temperature test, and drop test. Welcome to visit our factory and face to face do business. OEM/ODM Welcome. Every month put new design products on market.
Holding the tenet of "the best administration, advanced technique, the best quality, first-class service", we guarantee punctual delivery, competitive price and prompt response. We welcome your inquiries and look forward to establishing long-term business relationships with you in the near future.
Note: Waterproof, shockproof, high temperature resistance, humidity resistance, high definition
Installation: Loading position is of unity, the structure does not destroy the original car, combined with the car perfectly. Good hiding in the car could barely see the rear camera(Subject to loading the actual effect)
