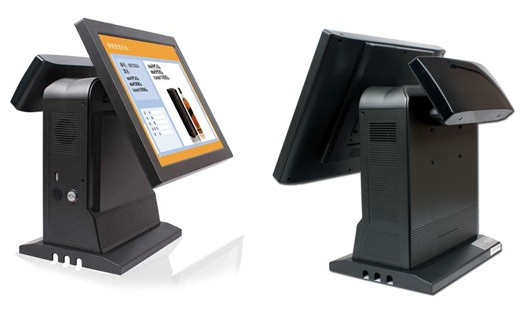

| Prod Model: |
AIO-1580 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Main Board: |
Intel® Processor D525 Biostar Taiwan Branded |
| Chipset: |
Intel D525+Ich8 Chipset |
| Memory: |
2 GB |
| Storage: |
320 GB HDD |
| Brightness: |
250CD/M2 |
| Resolution: |
1024X768 |
| Touch Panel: |
5-Wire Resistive |
| Type: |
Fixed |
| Touch Screen: |
Touch Screen |
| Printer: |
Thermal |
| Certification: |
FCC |
| System: |
Windows |
| CPU: |
Intel® Atom D525 CPU Core 1.8g |
Product Description
Features:
AIO-1580 is designed for the High Quality standard required clients of branded chain stores. By using the main board and touch panel imported from Taiwan directly. It adapts the Intel video and audio card. Product after-service 3 years.
Specification:
Optional Peripherals ISO Track 1/2/3 Magnetic Stripe Reader &WiFi& built-in speaker out
Main Board Intel® Processor D525 BIOSTAR Taiwan BRANDED
CPU Intel® Atom D525 CPU core 1.8G
Chipset Intel D525+ICH8 chipset
Video card Intel Graphics Media Accelerator3150(256MB/Intel)
Sound Card RTL ALC662 @INTEL 82801G(ICH7)High Definition Audio
Memory Support DDRIII 1066/1333X1 2GB (Max: Up to 4GB)
Storage Standard 320G HDD SATA interface
LCD panel Size 15 inch TFT LCD
Brightness 250CD /m2
Resolution 1024X768(max)
Touch Screen 5 wire resistive touch screen made in Taiwan BRANDED
5-wires resistive 20, 000, 000 times touch life
View Angle Horizon: 140 Vertical: 130
Tilting Angle 0-90 degrees
I/O port 1X power button
PS2 mouse X1 PS2 key boardx1
Serial: On mother board, COM portx3 dB-9
Parallel: 1xtwo way Parallel port
VGA(15Pin D-SUB)X1
LAN: RJ-45 X1
USB(2.0)X5
Audio out X1; 2xInternal Speaker(option)
MIC IN X1,
Operating temp 0~40ºC
Storage Temp: -40~50ºC
Power Consumption 35W(max)
Operating System Windows XP Professional, Windows XP Embedded, WEPOS, Linux
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1xCD disk for motherboard and touch function
Power adaptor 100-240V/ 3.5A 47~63Hz
Wall Mount Kit Bracket and screws for wall mount included.
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
Car parks, hotels, aviation, subway, station
