| Prod Model: |
WZ60Y-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |

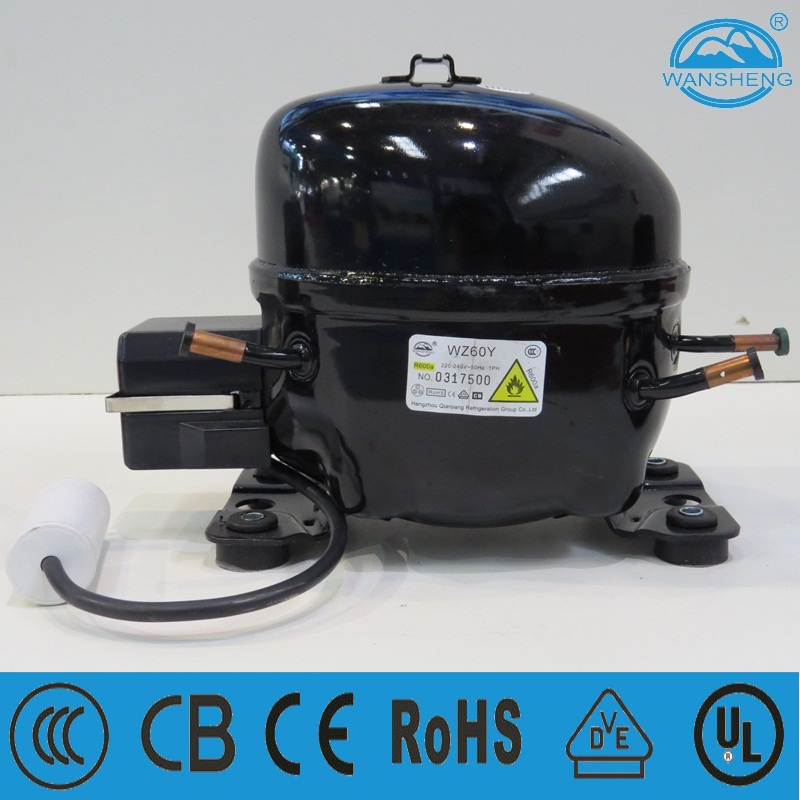

Product Description
Especially suitable for refrigerators.
LBP compressor
Low noise
Small vibration
High stability and reliability
RSCR Motor
The height of WZ60Y compressor is 179MM.
WZ60Y has passed CCC /CB certification
Several general requirements as below
Compressor should be stored in a dry and drafty place.
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
Match the proper evaporating temperatures according to the low, middle and high back pressure requirements. Pay attention to the admitted ranges of voltage and frequency for the different models.
Starting relay is e-PTC
Frequency only for 50HZ
Voltage application from 220 to 240V
WT/WS Series WZ60Y is R600a refrigerant compressor
| R600a-LBP COMPRESSOR PERFORMANCE PARAMETER |
| Wansheng R600a low back pressure(LBP) compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type |
Starting Capacitor
(μF) |
Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WT/WS series 220-240V/50Hz |
| WZ60Y | 220-240V~50Hz | 6.0 | 98 | 52 | 1/14 | 1.88 | RSCR | / | 3 | e-PTC | S |
