| Prod Model: |
Refrigerator Thermostatic Expansion |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Media: |
R22, R134A, R407c and R404A/ R507 |
| Safe Working Pressure: |
3MPa |
| Max.Operating Pressure: |
Supply with Mop |
| Evaporating Temperature Range: |
-40c~+10c |
| Maximum Bulb Temperature: |
75c |
| Connection Type: |
SAE External Thread |
| Cage: |
Interchangeable |
| Capillary Length: |
1m |
| Diaphragm: |
Rugged Stainless Steel |
| Weight: |
0.5kg |
Product Description

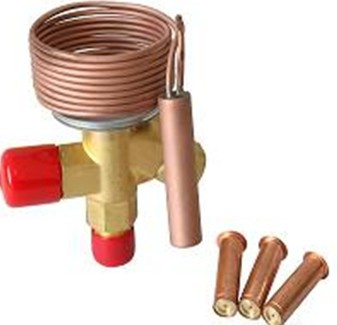

SM Thermastatic Expansion Valve
General Characteristics
l Constant superheat adjusting performance with MOP function
l Rugged stainless steeldiaphragm
l Interchangeable cage
l Inlet strainer assembly
l For use on refrigerants R22,R134a,R407c and R404A/ R507
l Safe working pressure of 3.0 Mpa
Maximum bulb temperature is 75ºC
Superheat adjusting
Factory setting :superheat 3.5K,static superheat adjusting range is between 2~8K.Take off cap and turn adjusting stem .Turn adjusting stem clockwise one round ,reduces superheat 1.5K.
| Orifice | Model | Refrigerant | Connection size | Capillary length | Weight |
| R22 | R134a | R407c | R404A/R507 | Inlet | Outlet | External equalizer |
| Type | (KW)
Nominal
ca pacity
(KW) | Type | (KW)
Nominal
ca pacity
(KW) | Type | (KW)
Nominal
ca pacity
(KW) | Type | (KW)
Nominal ca pacity
(KW) |
| 0 | SM(E)
ST(E)
| 1/3H | 1.12 | 1/5M | 0.65 | 1/3N | 1.07 | 1/4S | 0.83 | 3/8
OR
φ10
SAE
or
ODF | 1/2
OR
φ12
SAE
or
ODF | 1/4
OR
φ6
SAE
or
ODF | 1m | 0.5kg |
| 1 | 3/4H | 2.53 | 2/5M | 1.50 | 3/4N | 2.68 | 1/2S | 1.94 |
| 2 | 1H | 3.37 | 1/2M | 2.50 | 1N | 3.35 | 1S | 3.30 |
| 3 | 1.5H | 5.06 | 1-1/3M | 4.0 | 1.5N | 5.28 | 1-1/2S | 5.28 |
| 4 | 2.5H | 8.43 | 2M | 6.2 | 2.5N | 8.80 | 2-1/3S | 8.4 |
| 5 | 4H | 13.49 | 2.5M | 8.20 | 4N | 14.1 | 3S | 10.60 |
| 6 | 5H | 16.87 | 3M | 9.50 | 5N | 16.4 | 3-1/2S | 12.16 |
