| Prod Model: |
WV65YV-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description

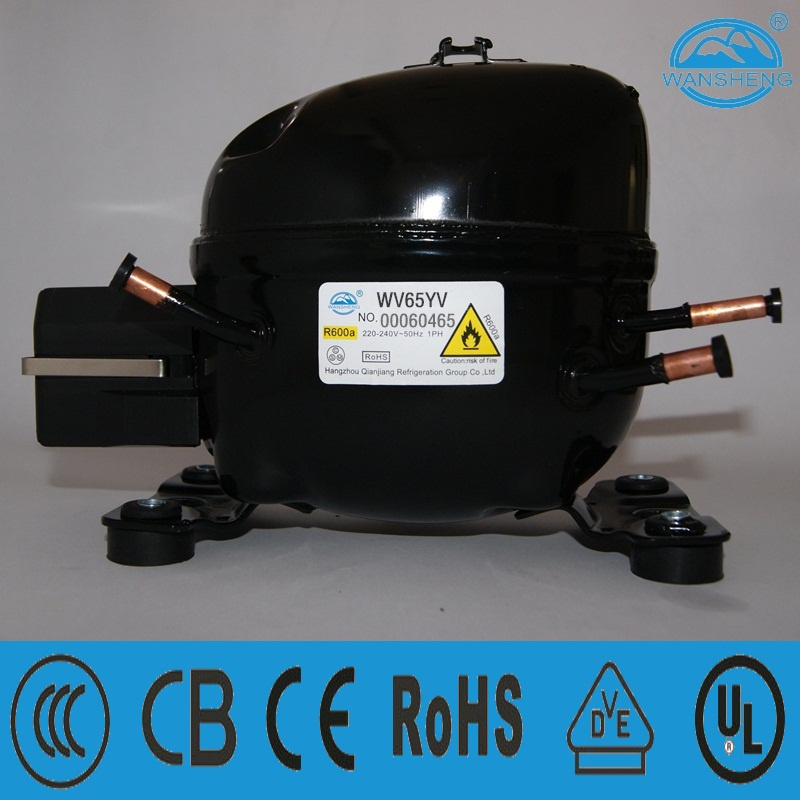

WANSHENG R600a Low Back Pressure (LBP) Compressor |
Test Conditions | LBP ASHRAE | Subcooling Temp.: 32.2°C |
| Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 32.2°C |
Model |
Nominal Power
(HP) | Cooling Capacity
(W) |
COP Power Efficiency
COP (W/W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
| WV Series 220-240V~50Hz |
|
| WV65YV | 1/13 | 110 | 1.70 | RSCR | PTC | / | 3 | S |
1. On time delivery
2. Starting device is PTC
3. Frequency only for 50HZ
4. Voltage application from220 to 240V
5. Application in refrigerator, freezer and other refrigeration equipments.
6. Good reliability
7. High efficiency
8. Low sound
9. Light vibration
10. COP is 1.7
11. The cooling capacity 110W
12. RSCR Motor
13. Cooling type Static
14. With running capacitor
15. Copeland wire refrigeration compressor
16. WV65YV has passed CCC/CE/CB/VDE certification
17. LBP
18. Compressor should be stored in a dry and drafty place.
19. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
20. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
21. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
22. Don't use the compressor as vacuum-pumping. The oxygen injection should be used for leak detection of refrigeration system, or it would possibly cause accidents.
23. The oil return in system has been fully taken into consideration in design.
24. WV series WV65YV is freezer refrigeration compressor
25. Use R600a refrigerant
26. OEM is welcome
27. Cheap price provided for the compressorWV65YV makes the customers better choice

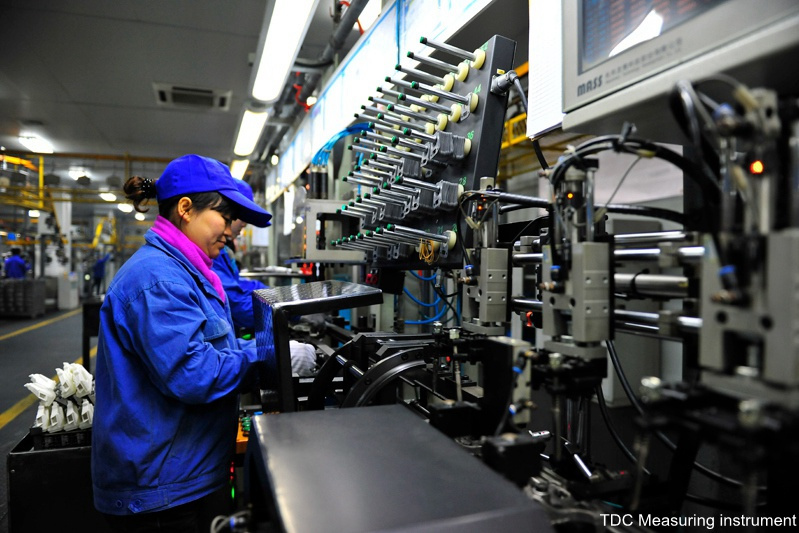

28. Experienced staff ensure produce of the compressors with good quality
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
