| Prod Model: |
opt-1224 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty: |
5years |
| Life Cycles: |
2000 Times |
| Application: |
E-Car,E-Bike ,Scooter,E-Walker,UPS,Solar... |
| Certificate: |
UL ,CE ,RoHS ,ISO9001 ,Ts16949 ,SGS ,BV , IEC62133 |
| Advantages: |
Safety,Long Life Cycles,High Energy Density |
| Lead Time: |
15-20days |
| Installation:Packaged: |
Packaged |
| Color: |
Black, Grey, White, Yellow, Green |
| Maintenance Type: |
Free |
| Export Markets: |
Global |
| Type: |
Lithium-Ion Batteries |
| Usage: |
Boat |
| Nominal Voltage: |
12V |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Cylindrical Battery |
| Rechargeable: |
Chargeable |
| Electrolyte: |
LiFePO4 |
Product Description

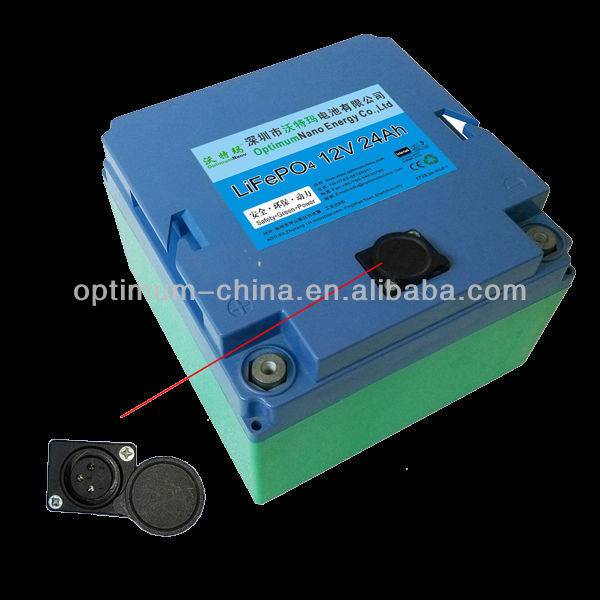

Rechargeable lithium battery 12V 24ah UPS Battery with charger
Product Features
1. Safe: Rigid aluminum alloy housing protection, BMS or PCB built inside to protect the battery over charge or discharge.
2. Environmental-friendly: Accredited with RoHS, without any hazardous and noxious substances.
3. Lighter and smaller: 1/3 weight of lead acid battery, 70% size/weight of Ni-MH/Ni-Cd battery.
4. Powerful: Able to discharge at -20 and 65° C max.
5. Long cycle life: Over 2000 cycles with capacity staying at minium 80%. Lead battery and other Li-ion batteries only have 300-500 cylces, such as Ni-Cd battery, Ni-MH battery.
6. Wide temperature range: Available for use when the temperature ranges from -20° C to 70° C.
7. Quality assurance: BV and SGS approved supplier, with TS16949 and ISO9001 quality management certificates and UL, CE, IEC62133, RoHS certificates.
Our Advantages
1. Specialized in production of lithium iron phosphate batteries for over 4 years.
2. Providing tailor-made high-standard energy solutions in accordance to client's demands.
3. With technical of over 2 years in on-site installation and debugging for more than 1000 HEV and EV.
4. Having made and implemented energy solutions for over 100 styles of EV.
5. With rich experience in drawing up and executing new energy solutions such as special energy-storage systems like wind-solar hybrid power generation and UPS for military and hospital.
6. Whole-journey nanny service after sale.
Applications
1. Large-scale electric vehicles: Electric bus, electric car, E-Tour Car
2. Light electric car: E-bike, electric scooter, e-motor, electric golf car, forklift, cleanness car, electric wheelchairs
3. E-tool: Electric drill, electric saw, lawn mower and so on
4. Remote control cars, boat, aircraft, toys
5. Solar and wind power generation energy storage devices
6. Small medical equipment and portable equipment
| Standard capacity0.2C |
24Ah |
| Rated voltage |
12v |
| Max. Charge voltage |
14.6V |
| Cut-off voltage |
10V |
| Continuous charge current |
0.5C |
| Continuous discharge current |
1.0C |
| Max. constant discharge current |
1.5C |
