| Prod Model: |
OPT-48-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue, Black or Gray |
| Weight: |
Smaller and Lighter as Soon as Possible |
| Long Life Cycle (100%Dod): |
More Than 2000times at 1c |
| Shipping: |
Customized |
| Certification: |
CE, UL, RoHS, SGS, Ts/16949 and ISO9001-2008 |
| Type: |
Lithium-Ion Battery Pack |
| Connection Mode: |
Series and Parallel |
| Electrolyte: |
Lithium Iron Phosphote |
Product Description

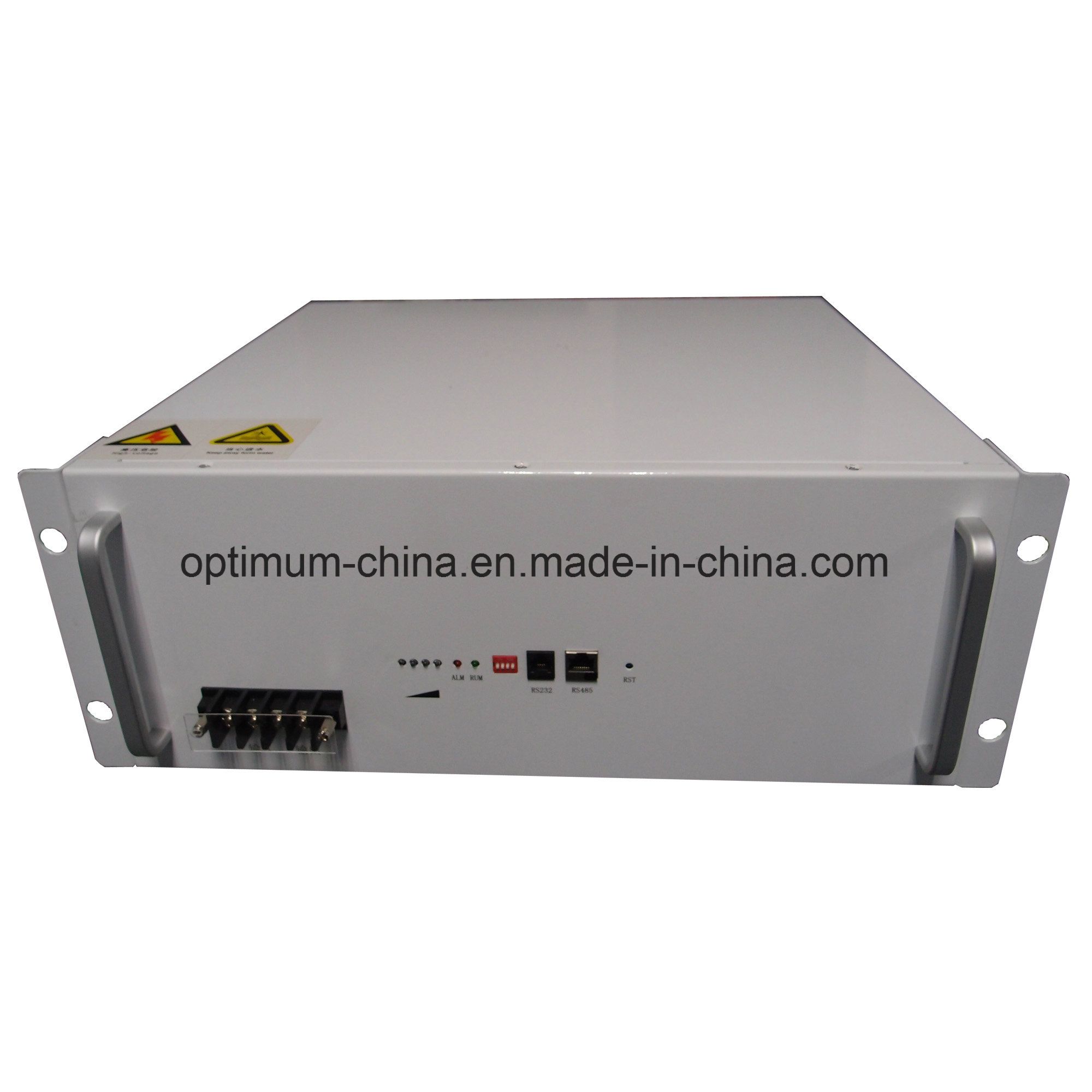

48V 100Ah lithium ion battery for forklift
Technical details of lithium ion battery
lithium ion battery |
| Model | lithium ion battery |
| Nominal Capacity (Ah) | 100Ah |
| Nominal Voltage (V) | 48V |
| Standard Charge Current (A) | 20A |
| Continuous Discharge Current (A) | 100A |
| Pulse Discharge Current (A) | 200A |
| Dimension (mm) | 557(L) x 360(W) x 193(H) |
| Weight (kg) | 65kg |
| Charge Temperature Range(°C) | 0~45°C; 32oF~113oF |
| Discharge Temperature Range(°C) | -20~60°C; -4oF~149oF |
| Storage Temperature Range(°C) | -20~45°C; -4oF~113oF |
Advantage
1. Very safe
CE,UL approved, it has the best safety and steady performance.
2. Long Cycle life
With more than 2000 times life cycle.
3. Less self-discharge
Self-discharge<3%(month), while the monthly self discharge of sealed lead acid battery is 10%.
4. Light weight and smaller dimension
The dimension is about 1/2-2/3 weight of lead acid
5.Great capacity and more powerful,rechargeable battery
We can install the single battery cells in series and in parallet and it can fully discharge
OptimumNano single Cell
Application of lithium ion battery
Electric vehicles, EV cars, hybrid buses, e-bikes, electric scooters, e-bus, golf trollery,caravan |
| Electric boats, ships, catamarans, submarines |
| Mobile homes, campers and trailers |
| Small solar applications |
| Large PV installations - off grid power supplies |
| Smart-grid solutions - energy storage and balancing |
| Backup systems, UPS, generators |
| High power chargers |
| Telecommunication equipment, mobile phone operator base stations, networking power supplies |
| Civil, public and military emergency energy supplies |
Product Features
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Light weight, small size
9.Quality and security guaranted,with CE,ROHS approval.
Packing and shipping
The LiFePO4 Battery has passed the UN38.3, according to the report ID: W10173003116D~1.
Separate Lithium lron Phosphate Batteries when shipping to prevent short circuits.
All the OptimumNano LiFePO4 Batteries are packed in strong packaging according to the General Packing Requirements of 5.0.2.
Transport Fashion: Be applicable to transport by air, by shipped, by Passenger and Cargo Aircraft.
More information can be obtained from Label with an indication including packed with lithium batteries, handled with care and the special procedures with a telephone number that should be followed when the package is damaged.
Brief introduction of company
OptimumNano Energy co., ltd, one of the biggest manufacturers for lifepo4 battery, has specialized in producing battery for more than 12years, with SGS,NQA,UL. CE. RoHS, ISO9001,TS16949 certification ,80,000 square meters factory, more than 2000 workers ,300 professional engineers.
>>>>>>>>>>>>>>>>>>>>>>>>.
