| Prod Model: |
WS75YT-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
Product Description
1. Low vibration
2. High efficiency
3. High reliability
4. Cheap price and experienced staff to ensure a great competition for the product.
5. Use R600a refrigerant
6. Copeland compressor
7. Starting device is e-PTC
8. Frequency only 50HZ
9. Voltage application from220 to 240V
10. Compressor should be stored in a dry and drafty place.
11. Application in Medium-Large size refrigerator, freezer, cabinet, liquor cabinet, vending machine, etc.
12. RSCR Motor
13. Static cooling
14. Low Back Pressure
15. CCC/CB/CE/VDE certification
16. OEM is welcome
17. Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
18. Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
19. The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
20. Wangsheng Brand compressor
21. WS75YT compressor with superior quality
22. Strong load capacity
23. Reliable starting performance
24. Low sound

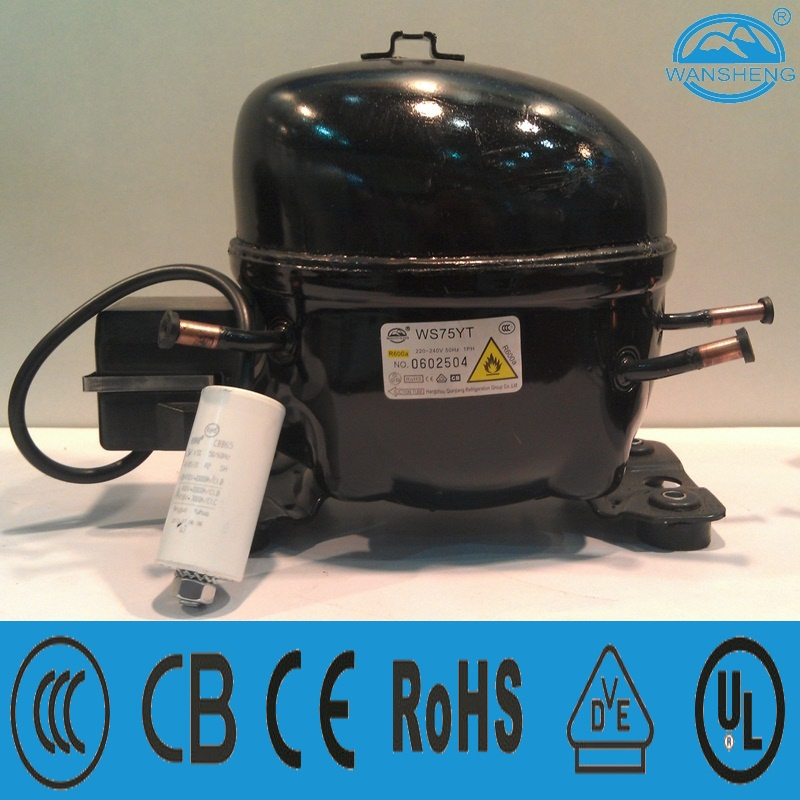

| R600a WANSHENG Low Back Pressure (LBP) Compressor |
| R600a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| V series 220-240V~50Hz |
| WS75YT | 7.5 | 130 | 93 | 1/10 | 1.41 | RSCR | / | 3 | e-PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
