| Prod Model: |
WS80YV-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description

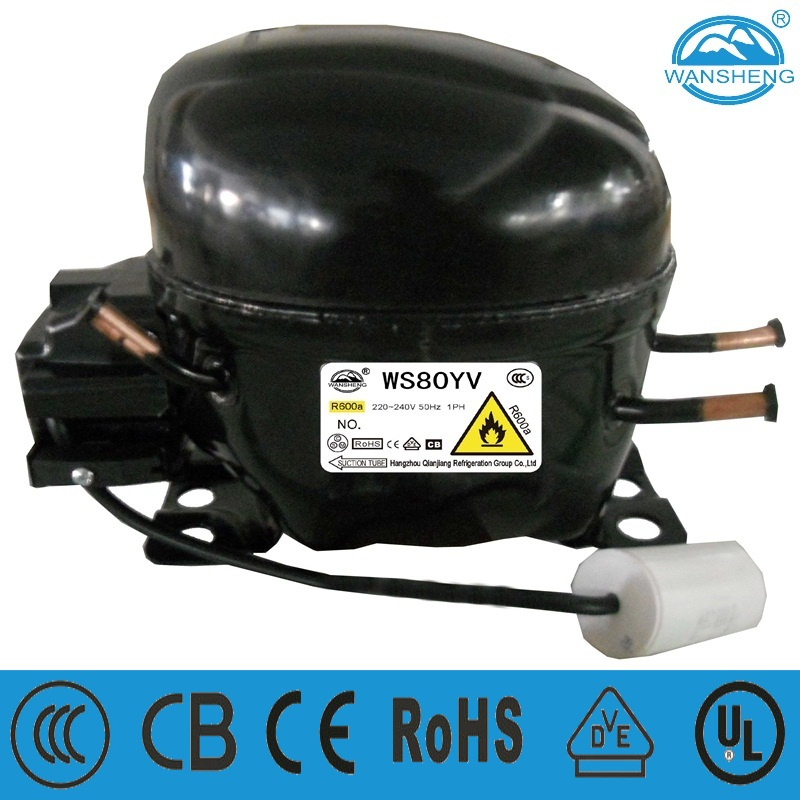

R600a compressor WS80YV
Frequency only for 50HZ
Voltage application from 220 to 240V
WT Series WS80YV have high efficiency
Good reliability
Good startup performance
Low sound
Low vibration
Use R600a refrigerant
Compressor working condition: Wansheng R600a series compressors can start and run under the 0.25Mpa(gauge) balance pressure and 85% rated voltage; Under special conditions voltage low to 165V and high to 242 is allowable.
RSCR Motor
WS80YV has passed CCC/CE/CB/VDE certification
Low Back Pressure
Application in refrigerator, freezer, display cabinet, wine chests and other medium and small -sized refrigeration equipment
Our company is the manufacturer and the trading company of popular household compressor WS80YV
Starting device is PTC
|
R600a WANSHENG Low Back Pressure(LBP) Compressor |
|
Wansheng R600a Low Back Pressure(LBP) compressor |
Test Conditions |
Evap. Temp.: 7.2°C |
|
|
Cond. Temp.: 54.4°C |
|
|
|
|
Amb. Temp.: 32.2°C |
|
|
Suction. Temp.: 35°C |
|
|
|
|
Subcooling Temp.: 46.1°C |
|
|
LBP ASHRAE |
|
|
|
|
Model |
Power Supply |
Displacement (cm³) |
Cooling Capacity (W) |
Rated Power (W) |
Nominal power (HP) |
COP (W/W) |
Motor Type |
Capacitor (μF) |
Starting Relay |
Cooling Type |
|
WT Series |
|
WS80YV |
220-240V/50Hz |
8 |
140 |
82.3 |
1/9 |
1.7 |
RSCR |
4 |
PTC |
S |
