| Prod Model: |
QM61U-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
Main Feature
1.Use R290 refrigerant
2.Good service after sale
3.Competitive price in this line
| Wansheng R290 Low Back Pressure(LBP) compressor | Test Conditions | Evap. Temp.: 7.2°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 35°C |
|
|
|
|
|
|
| Subcooling Temp.: 46.1°C |
|
| LBP ASHRAE |
|
|
|
|
|
|
| Model | Power Supply | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type | Packing (Pcs/pallet) | 1×20'FCL (pcs) |
Ceritification |
| WS/WQ series |
|
|
|

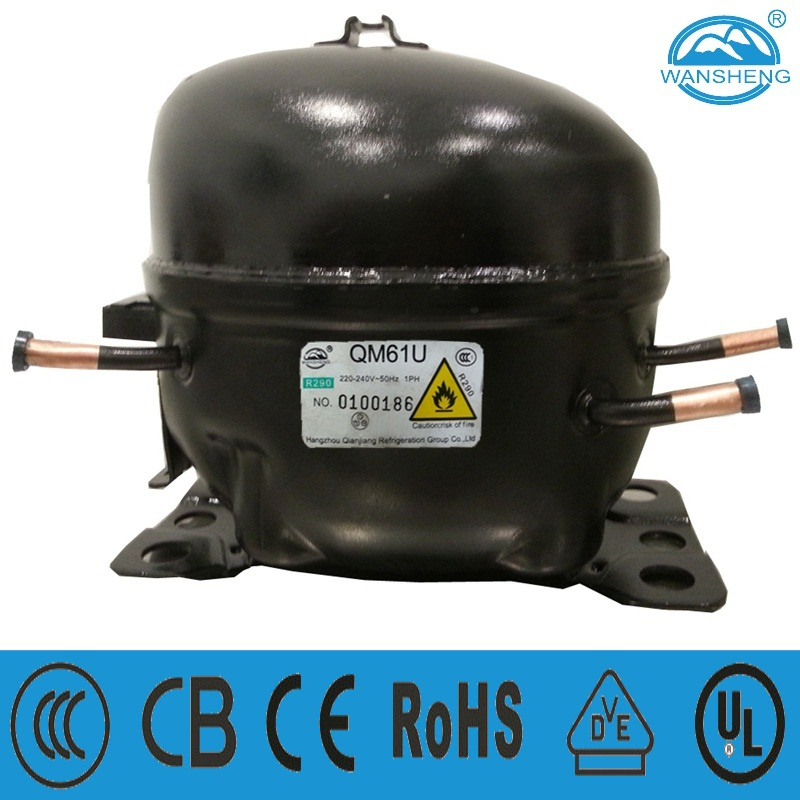

| QM61U | 220-240V/50Hz | 6.03 | 300 | 200 | 1/4+ | 1.5 | CSIR | 50 | PTC | S | 80 | 1600 | CCC |
Reliable performance
Low starting voltage
Cooling effect is better than HFC refrigerant with the same charge volume
Lower noise
No damages to the ozone layer with zero ODP
GWP less than 20 to avoid the greenhouse effect
CSIR Motor
QM61U has passed CCC certification
Low Back Pressure
Application in commercial refrigerator, freezer, display cabinet, island showcase and other medium-sized refrigeration equipments.
Several general requirements as below
Compressor should be stored in a dry and drafty place
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.
Starting device is PTC
Frequency only for 50HZ
Voltage application from 220 to 240V
R290 compressor
Efficient application in commercial refrigerator
Strong load capacity
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
