| Prod Model: |
WS8511H-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Reciprocating |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
Company Information1. Qianjiang Compressor Company LTD produce and research and develop refrigeration compressors that becomes largest manufacturer and the trading company of Fridge Compressor WS8511H
2. The company's scale and strength has been one of the top three in China
Product Description
3. WS8511H with UL Certification wins good reputation all over the world
4. Starting relay is PTC
5. Use R134a refrigerant
6. R134a is Qianjiang injection compressor refrigeration approved for lipid oil, are not allowed to randomly pour or add
7. R134a refrigerant system should strictly control the moisture, impurities ,paraffin wax ,such as silicone oil ,and the content of chloride
8. Frequency only for 60HZ
9. Voltage application from 100 to 120V,so can run at low voltage
10. WS Series WS8511H has Strong load capacity
11. High efficiency & reliability
12. Reliable starting performance
13. Low sound & vibration
14. RSCR Motor
15. Static Cooling
16. Low Back Pressure
17. Application in medium-large size refrigerator, freezer, cabinet, liquor cabinet, vending machine, ice-making machine, etc.
Packaging & Shipping
1PC/Carton, 120PCS/Pallet,2160PCS/FCL(1*20GP)

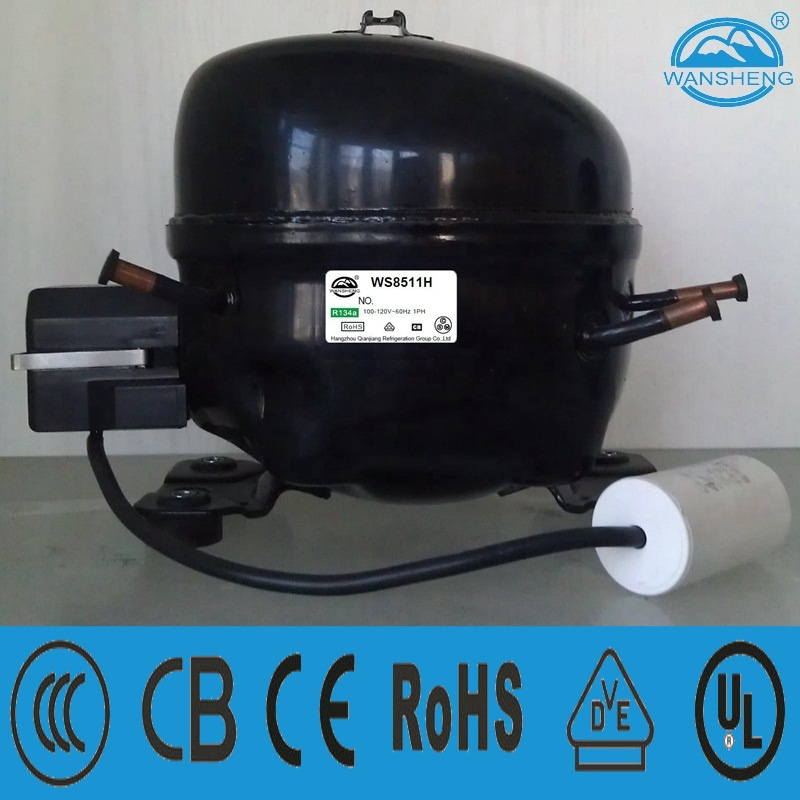

| R134a WANSHENG Low Back Pressure (LBP) Compressor |
| R134a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WS series 100-120V~60Hz |
| WS8511H | 8.5 | 290 | 196 | 2/7 | 1.40 | RSCR | / | 12 | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
