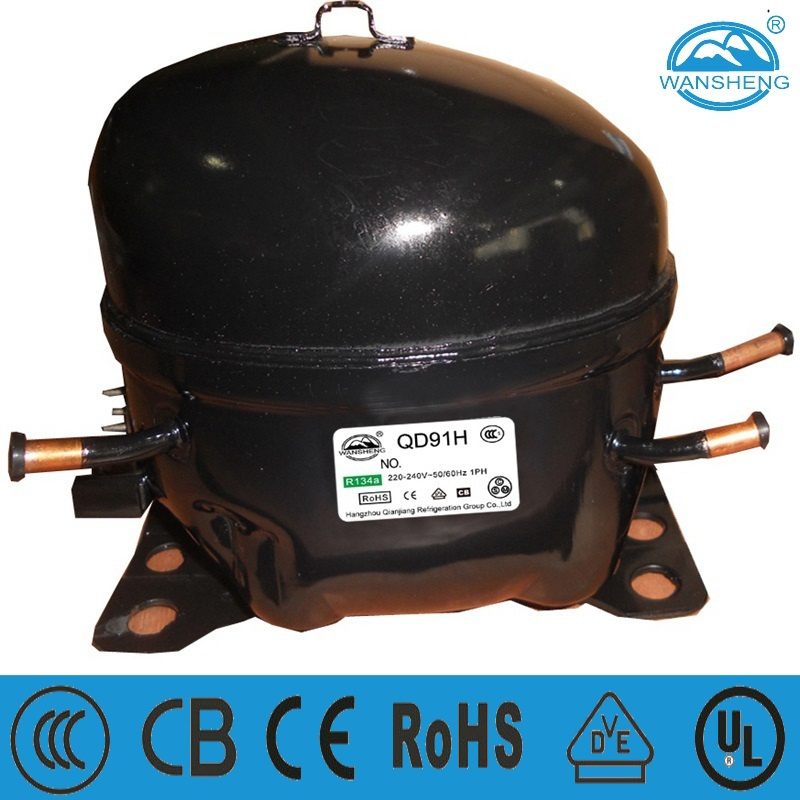

R134A Wansheng Lbp Refrigerator Compressor (QD91H)
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T |
| Prod Model: |
QD91H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Type: |
Piston |
| Drive Mode: |
Electric |
| Piston Type: |
Closed |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Material: |
Copper |
| Lubrication Style: |
Lubricated |
| Mute: |
Not Mute |
| Application: |
Low Back Pressure Type |
Product Description
Test Conditions
Evap. Temp.: -23.3º C
Cond. Temp.: 54.4º C
Amb. Temp.: 32.2º C
Suction. Temp.: 32.2º C
Subcooling Temp.: 32.2º C
LBP ASHRAE
Model: QD91H
Power Supply: 220-240V/50Hz
Displacement (cm³ ): 9.1
Cooling Capacity (W): 208
Rated Power (W): 183
Nominal power (HP): 1/4
COP (W/W): 1.13
Rated Current (A): 1.55
Motor Type: RSIR
Capacitor (μ F): /
Starting Relay: Applying Relay
Cooling Type: S
Packing (PCS/pallet): 100
1× 20'FCL (PCS): 2000
Characteristics
1. Small size,
2. High efficiency & reliability
3. Reliable starting performance
4. Low sound & vibration
Application
LBP, used for drinking fountain, refrigerator, freezer, liquor cabinet, ice-making machine and other medium and small sized refrigeration machines.
1. use R134a refrigerant
2. 220V/50-60Hz,applicated LBP
3. used for display cabinets and other medium-sized,large refrigeration equipment
4. with CCC/CE certification
220V/50-60HZ Compressors: WS Series are in fully enclosed crank and connecting rod structure and with reciprocating piston in the semi-direct suction mode
The main feature: good startup performance,low noise and good reliability| R134a-LBP COMPRESSOR PERFORMANCE PARAMETER |
| Wansheng R134a low back pressure(LBP) compressor | Test Conditions | Evap. Temp.: -23.3°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction. Temp.: 32.2°C |
| Subcooling Temp.: 32.2°C | LBP ASHRAE |
| Model | Displacement (cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Capacitor (μF) | Starting Relay | Cooling Type |
| WS series 220V/50Hz |
| QD91H | 9.1 | 208/235 | 173/181 | 1/4 | 1.2/1.3 | RSIR | / | PTC | S |

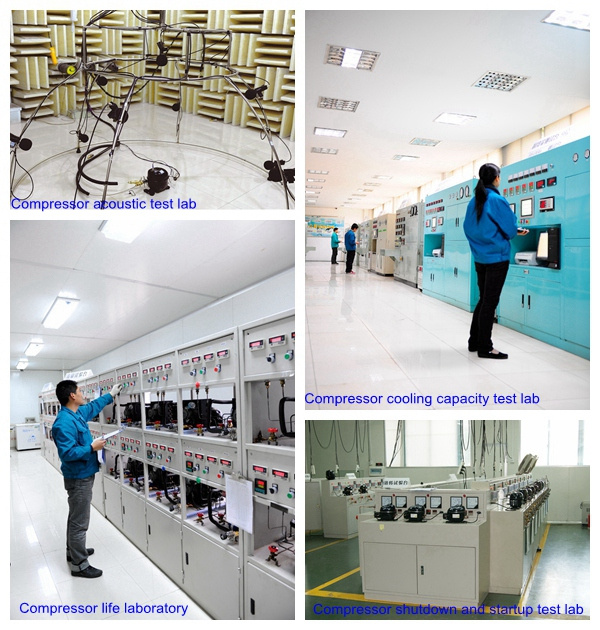

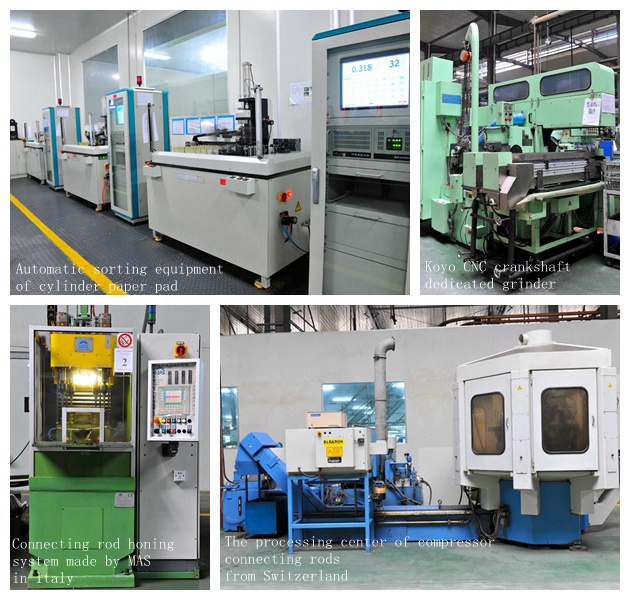

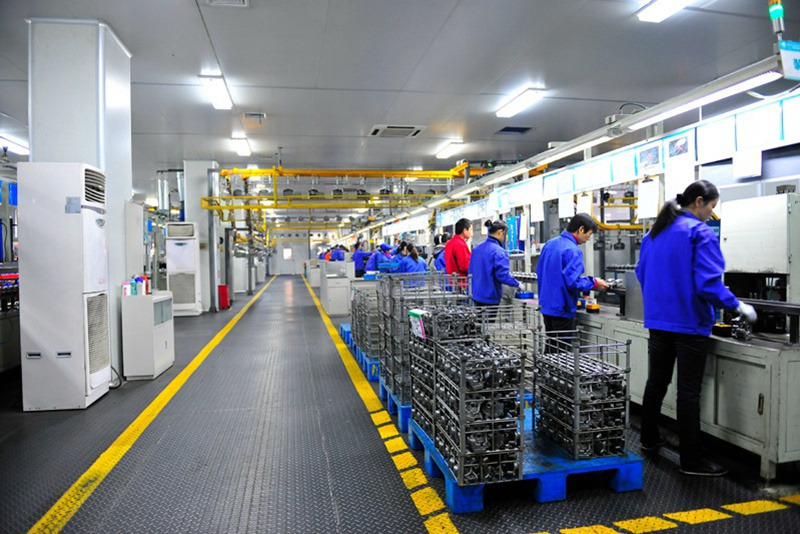

Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
