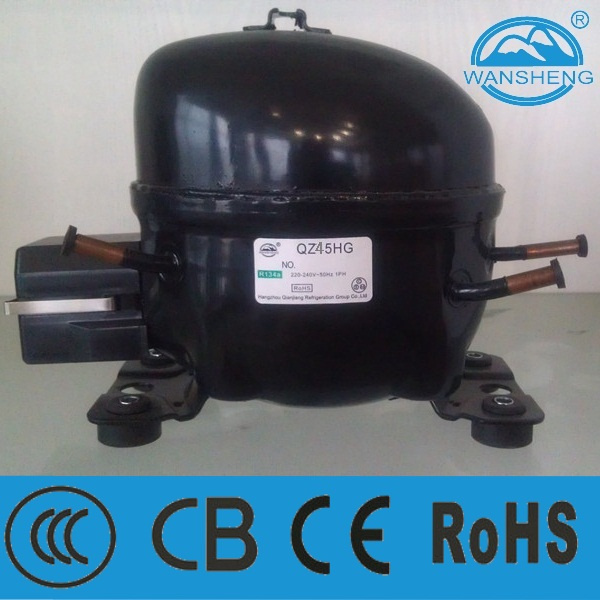

R134A Refrigerator Compressor Qz45hg
| Price: |
US $ 1-100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
QZ45HG-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
High Back Pressure Type |
| Mute: |
Not Mute |
Product Description
1. High reliability
2. Low sound
3. Low vibration
4. Use R134a refrigerant
5. R134a is Qianjiang injection compressor refrigeration approved for lipid oil, are not allowed to randomly pour or add
6. R134a refrigerant system should strictly control the moisture, impurities, paraffin wax, such as silicone oil, and the content of chloride ion.
7. RSIR Motor
8. QZ45HG has passed CCC/CE certification
9. Medium & high back pressure
10. Application in cabinet, liquor cabinet, etc.
11. Starting device is PTC
12. High cooling capacity under the different evap. Temp, details as the below separately table
13. Frequency only for 50Hz
14. Voltage application from 220 to 240V15. High efficiency
| R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor |
|
|
|
|
| R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor | Test Conditions | Evap. Temp.: 7.2°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
|
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 35°C |
|
|
|
|
|
|
|
| Subcooling Temp.: 46.1°C |
|
| M/HBP |
|
|
|
|
|
|
|
| Model | Displacement
(cm³) | Power Supply
(V/Hz) | (-10°C )
Cooling Capacity
(W) | (-5°C )
Cooling Capacity
(W) | (0°C )
Cooling Capacity
(W) | (7.2°C)
Cooling Capacity
(W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
Packing
(Pcs/Pallet) | 1×20'FCL
(PCS) |
Certification |
| WT/WS Series 220-240V~50Hz |
| QZ45HG | 4.5 | 220-240V~50Hz | 184 | 232 | 286 | 380 | RSIR | PTC | / | / | F1 | 120 | 2160 | CCC/CE |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
