| Prod Model: |
WQ110H-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Piston |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
Customer from Iran
Customer from Brazil
Customer from Italy

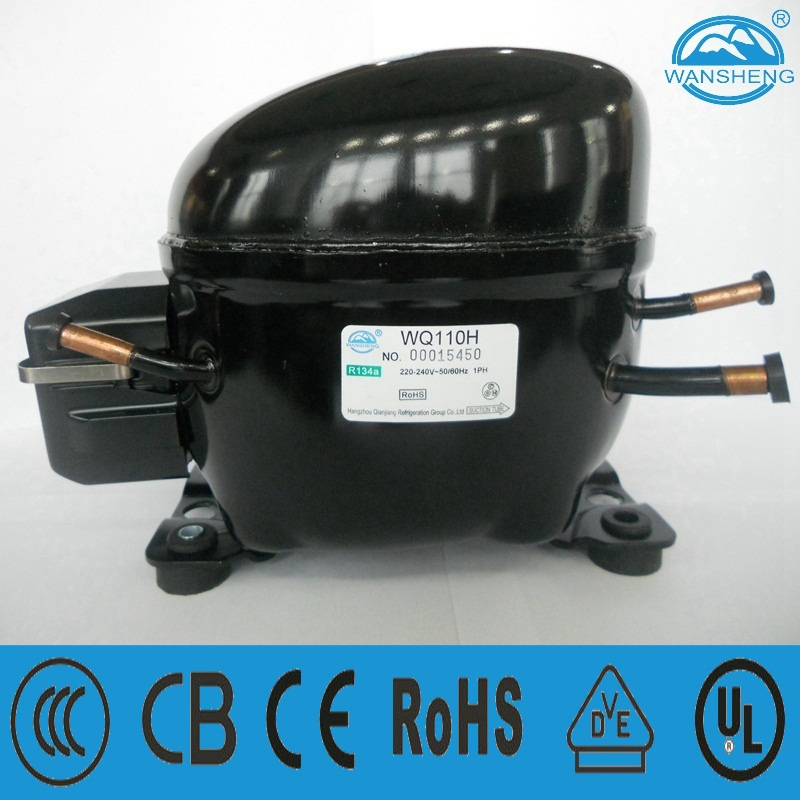

| R134a WANSHENG Low Back Pressure (LBP) Compressor |
| R134a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C Suction. Temp.: 32.2°C |
| Subcooling Temp.: 32.2°C LBP ASHRAE |
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WQ series 220~240V/50-60Hz |
| WQ110H | 11.0 | 280/305 | 207/218 | 2/7 | 1.35/1.40 | RSIR | / | / | Starting Relay/PTC | F |
R134a compressor should be used in line with the dry filter
Don't keep the R134a compressor connect pipe open too long better, no more than 10 minutes
Mainly used in refrigerators, freezers, water-dispensers, etc.
Double frequency 50Hz and 60HZ
Low vibration
Light noise
Good start-up performance
High stability
High reliability
Voltage application from 220 to 240V
Mainly used in refrigerators, freezers, display cabinets, wine chests, etc.
WQ110H has passed CCC and CE certification
WQ series WQ110H with the semi-direct suction structure
The structure enhance the efficiency
The process or suction tube of direct and semi-direct gas compressor can not be interchanged, or it would be difficult to guarantee the performance of compressor
RSIR Motor
Starting device is starting relay and PTC
Cooling type: F shows "Air cooling of Wind Velocity"
Use R134a refrigerant
