| Prod Model: |
QM70H-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Type: |
Reciprocating |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
Product Description
Voltage application from 220 to 240V
Application in Medium-Large size refrigerator, freezer, cabinet, dehumidifier, liquor cabinet, etc.
Small size
High efficiency
High reliability
Low sound & vibration
COP is 2.06 when Evap. Temp. Is 7.2° C
RSIR Motor
Cooling type F
QM70H has passed CCC certification
High Back Pressure
Several general requirements as below
Compressor should be stored in a dry and drafty place.
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

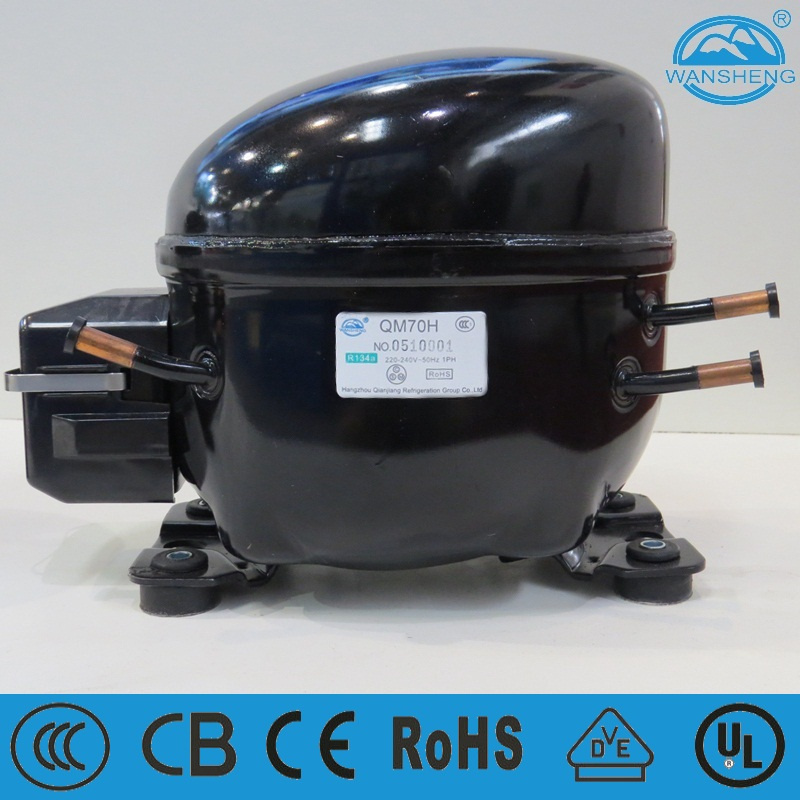

Cabinet Refrigerator Compressor QM70H used in industrial compressor, chest freezer compressor etc.
WQ series QM70H is R134a Compressor
Cheap price and good service provided for the compressor QM70H
Starting device is PTC
Frequency only for 50HZ
| WANSHENG Refrigeration Compressor |
Test Conditions | H/MBP | Subcooling Temp.: 46.1°C |
| Evap. Temp.: 7.2°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction Temp.: 35°C |
Model |
Power Supply
(V/Hz) |
Refrigerant |
(-10°C)
Cooling Capacity
(W) |
(-5°C)
Cooling Capacity
(W) |
(0°C)
Cooling Capacity
(W) | (7.2°C)
Cooling Capacity
(W) | (7.2°C)Input Power(W) | (7.2°C )
COP Power Efficiency
COP (W/W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
| QM70H | 220~240V/50Hz | R134a | 310 | 391 | 482 | 640 | 310 | 2.06 | RSIR | PTC | / | / | F2 |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
