| Prod Model: |
QZ65HG-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Type: |
Piston |
| Drive Mode: |
Electric |
| Piston Type: |
Closed |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Material: |
Copper |
| Lubrication Style: |
Lubricated |
| Mute: |
Not Mute |
| Application: |
High Back Pressure Type |
Product Description
The accumulated productive capacity and sales volume of the company have exceeded 105 million units till the year of 2013. Our products have high popularity and influence among the customers all over the world. The company has strong financial strength supported by Hangzhou Qianjiang Refrigeration Group.
Professional R&D team, professional R&D equipment to ensure the research and development of products meeting various customer demands!

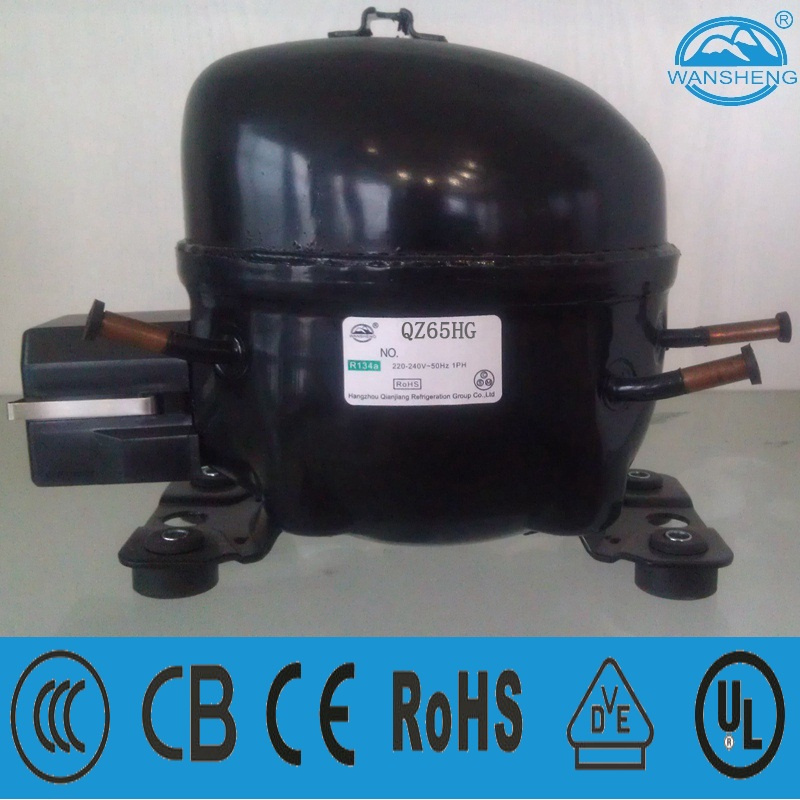

QZ65HG, starting device is PTC
Frequency only for 50HZ
Voltage application from 220 to 240V
High efficiency
High reliability
Low sound
Low vibration
Use R134a refrigerant
R134a is Qianjiang injection compressor refrigeration approved for lipid oil, are not allowed to randomly pour or add
R134a refrigerant system should strictly control the moisture, impurities, paraffin wax, such as silicone oil, and the content of chloride ion.
RSIR Motor
QZ65HG has passed CCC/CE certification
Medium & High Back Pressure
Application in refrigerator, cabinet, liquor cabinet, etc.
High cooling capacity under the different evap. Temp, details as the separately table below

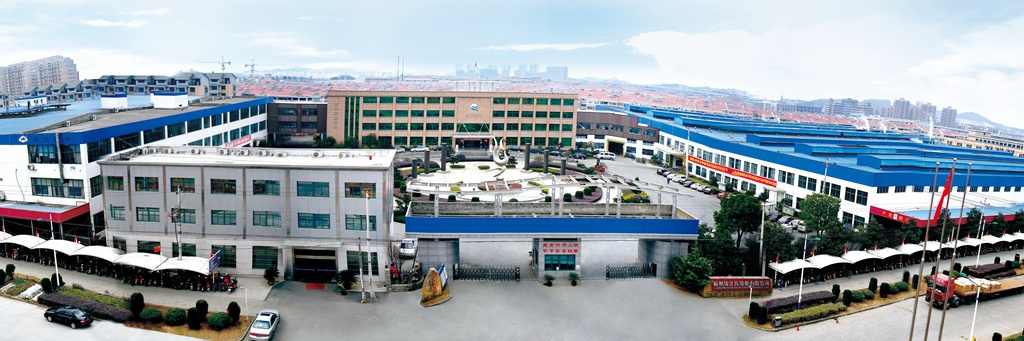

Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd is one of the subsidiaries of Hangzhou Qianjiang Refrigeration Group Co., Ltd, specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. The productive capacity and sales volume of compressors have continuously ranked at the third place in Chinese refrigeration industry for the past four years.
Nowadays, we(Hangzhou Qianjiang Compressor Co., Ltd) produce 10 series of compressors and more than 100 models available (V series, N series, J series, WS series, WQ series, VFC series, SC series, TK series, etc. ), whose power range from 1/12 to 3 horse, including the refrigerant R600a, R134a, R404a, R406a, R22 and R290. The characteristics of all products are high efficiency, high reliability, low noise level, low vibration level, low starting voltage, strong load capability, long life, etc.
The variety of our compressors could be widely applied for refrigerator, freezer, kitchen refrigerator, vending machines, drinking fountains, ice-making machines, dehumidifiers and so on. The different compressors could satisfy the different customers' requirements.
| R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor |
| R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor | Test Conditions | Evap. Temp.: 7.2°C | Cond. Temp.: 54.4°C |
| Amb. Temp.: 32.2°C | Suction. Temp.: 35°C |
| Subcooling Temp.: 46.1°C | LBP ASHRAE |
Model | Displacement
(cm³) |
Power Supply
(V/Hz) | (-10°C )
Cooling Capacity
(W) | (-5°C )
Cooling Capacity
(W) | (0°C )
Cooling Capacity
(W) | (7.2°C)
Cooling Capacity
(W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
| WT Series 220-240V~50Hz |
| QZ65HG | 6.5 | 220-240V~50Hz | 281 | 355 | 437 | 580 | RSIR | PTC | / | / | F |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
