| Prod Model: |
QZ55HG-4 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Performance: |
Low Noise |
| Material: |
Copper |
| Drive Mode: |
Electric |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Lubricated |
| Piston Type: |
Closed |
| Mute: |
Not Mute |
| Application: |
12.Medium & High Back Pressure |
Product Description
1. High efficiency
2. High reliability
3. Low sound
4. Low vibration
5. Uses R134a refrigerant
6. R134a refrigerant system strictly controls moisture, impurities, paraffin wax, such as silicone oil, and the content of chloride ion
7. RSIR motor
8. QZ55HG has passed CCC/CE certifications
9. Medium and high back pressure
10. Applications: Cabinet, liquor cabinet and more
11. Starting device: PTC
12. High cooling capacity under the different evaporation temperature (details as the table below)
13. Frequency: Only 50Hz
14. Voltage application: From 220 to 240V

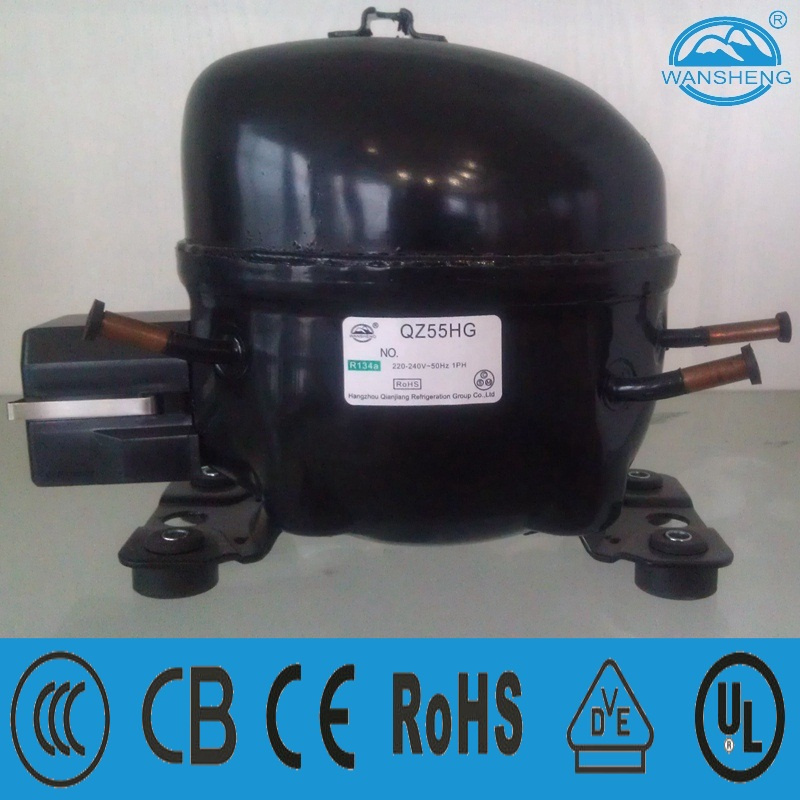

| R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor |
| R134a WANSHENG Medium/High Back Pressure( M/HBP) Compressor | Test Conditions | Evap. Temp.: 7.2°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 35°C |
|
|
|
|
| Subcooling Temp.: 46.1°C |
|
| LBP ASHRAE |
|
|
|
|
| Model | Displacement
(cm³) | (-10°C )
Cooling Capacity
(W) | (-5°C )
Cooling Capacity
(W) | (0°C )
Cooling Capacity
(W) | (7.2°C)
Cooling Capacity
(W) |
Motor Type |
Starting Device |
Starting Capacitor
(μF) |
Running Capacitor
(μF) |
Cooling Type |
| Power Supply (V/Hz) 220-240V/50Hz |
| QZ55HG | 5.5 | 221 | 278 | 343 | 455 | RSIR | PTC | / | / | F1 |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
