| Prod Model: |
J75HL-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black |
| Status: |
New |
| Configuration: |
Stationary |
| Power Source: |
AC Power |
| Type: |
Piston |
| Lubrication Style: |
Oil-free |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
Small size
Cheap price provided for the compressor J75HL makes the customers better choice
Experienced staff ensure produce of the compressors with good quality
Use R134a refrigerant
Aluminum compressor
Starting device is PTC
Frequency both for 50HZ & 60HZ
Voltage application from220 to 240V
Application in cooling and other refrigeration equipments.
Low vibration
Good reliability
COP is 1.2/1.3 with the cooling capacity 180/200W
RSIR Motor
Cooling type Static
Low Back Pressure
Compressor should be stored in a dry and drafty place.
Compressor should not be tilted or inverted in storage, transportation and installation; Collision should be avoided.
Rubber plugs should not be pulled out from discharge tube before installation so as to avoid impurity and humidity. During the installation, the rubber plugs of discharge tube should be pulled out at first, then the rubber plugs of process tube, and the rubber plugs of process suction tube at last. The installation should be completed within 10 min after that.
The accessories (eg. Starter, thermal protection etc. ) are nor installed into the compressor while delivery, but in the accessory case. Be sure to select the corresponding starter and thermal protection models rightly.

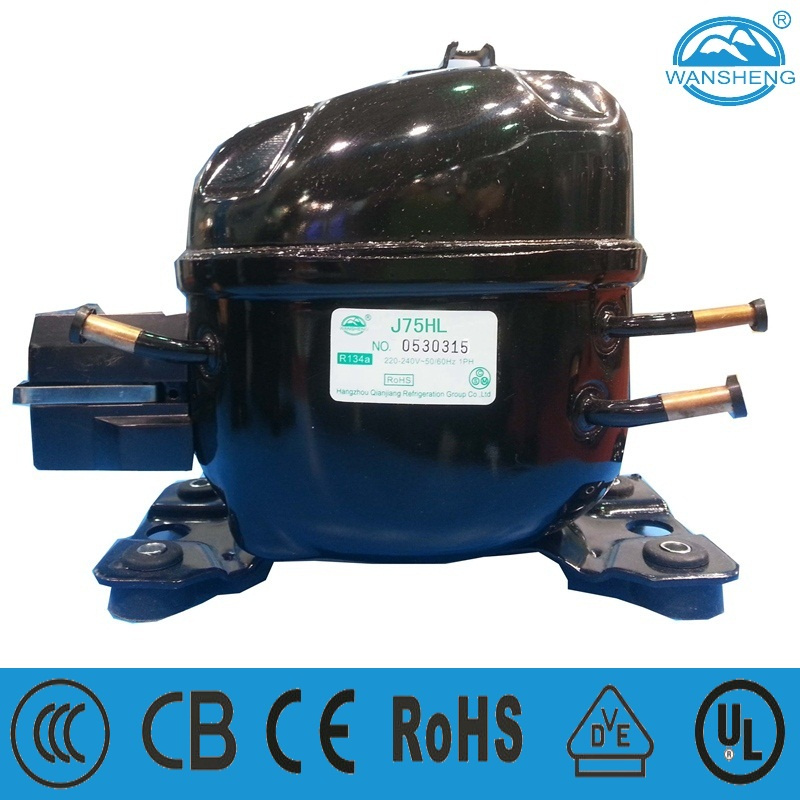

J series J75HL is our new product with high efficiency
|
Wansheng R134a compressors technology parameters |
Test Conditions |
Evap. Temp.: -23.3°C |
|
Cond. Temp.: 54.4°C |
|
|
Amb. Temp.: 32.2°C |
|
Suction. Temp.: 32.2°C |
|
|
Subcooling Temp.: 32.2°C |
|
LBP ASHRAE |
|
|
Model |
Displacement (cm³) |
Cooling Capacity (W) |
Rated Power (W) |
Nominal power (HP) |
COP (W/W) |
Motor Type |
Capacitor (μF) |
Starting Relay |
Cooling Type |
|
J series 220-240V/50-60Hz |
|
J75HL |
6.9 |
180/200 |
150/154 |
1/5 |
1.2/1.3 |
RSIR |
/ |
PTC |
S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
