| Prod Model: |
SZH964 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer: |
2 |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Solder Mask Colour: |
Green |
| Silk Screen Colour: |
White |
| Tg Value: |
130 |
| Cti Rating: |
175 |
| Surface Finish: |
Enig |
| Min Hole: |
0.3mm |
| Min Trace Width/Space: |
0.15/0.15mm |
| Structure: |
Double-Sided Rigid PCB |
| Production Process: |
Semi-Additive Process |
| Material: |
Epoxide Woven Glass Fabric Laminate |
Product Description

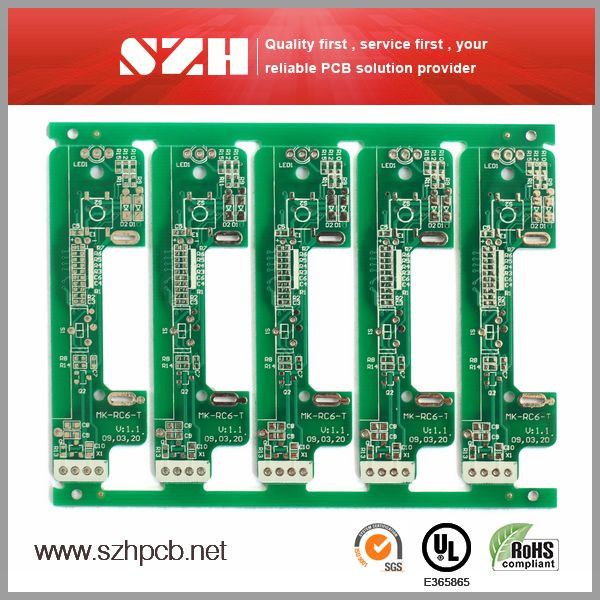

Quality 94V0 FR4 induction cooker PCB
1, RoHS & Lead Free
2, UL & ISO certified
3, Quality & service
4, Quick turn PCB
5, Surface finish: Immersion Gold/HALS/OSP/Gold finger/Carbon print/Peelable mask/Plating gold
6, Solder mask colour: Green/white/yellow/blue/red/black
7, Silk screen: White/black/yellow/red/blue/green
8, Applied in industrial facilities/medical facilities/consumer electronics/telecommunications/power supply
We deliver services, not only products.
We offer solutions, not only goods.
Sunthone is a professional PCB supplier, manufacture quick turn PCB prototypes, samples, and low volume orders with short lead time and high quality.
Sunthone populates and produces one panel with many different PCB orders-so that the tooling costs of this panel can be shared between the various PCB customers. In this way, Sunthone gives rise to a huge reduction in the costs normally associated with prototype and sample manufacturing.
With excellent performance on quality and lead time, Sunthone can be your best partner, either you are a factory or trader from east or west.
Established in 2006, Sunthone expands the plant area to 6, 000 and facility capacity to 15, 000 PCB boards per month.
The company products are widely applied in many areas, such as Industrial Control, Security System, Medical Facilities, Military Products, Power Supply, Computers and Communications. The company focuses on major markets including Domestic Market, America, Europe, Oceania, Southeast Asia and Middle East.
The company's innovative management system, advanced facilities and top grade raw materials lead to the high-quality PCB boards.
Sunthone aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry.
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.075mm | Min Annular Ring | 0.1mm |
| Min Space | 0.075mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.15mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White |
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP |
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic |
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD |
| CAM software | Genesis, CAM350 |
Sunthone is a one-stop PCB & PCBA solutions provider, offers PCB manufacturing, PCB assembly, components sourcing, stencils and PCBA testing services, and helps to simplify your job, improve your efficency and focus on your strength.
Firstly established as a PCB factory, more and more of our existing PCB customers ask us for fully Assembled Printed Circuit Boards delivered to their door to take away all the time consuming stress of component procurement and assembly. In order to meet customers' request and market developing trends, Sunthone develops into a one-stop PCB & PCBA solutions provider with all related services.
Sunthone has ISO 9001 and UL certificates, so all the products delivered from Sunthone are quality guaranteed with ISO and UL standards. Under such quality guarantees, its products are widely applied in many industrials, such as Industrial Control, Security System, LED & lightning, Medical Facilities, Power Supply, Computers and Communications. The UL certificate of power supply thick copper PCBs is available, too.
Flexibility is another strength of Sunthone. It provides various services at flexible quantities from prototype to mass production in a flexible way, to meet different requirements from clients.
Sunthone is always having an open mind and listening ears to learn your ideas, willing to work with you on a mutual beneficial basis to achieve bilateral success.
