| Prod Model: |
SZH914 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Layer: |
2 |
| Copper Thickness: |
1oz |
| Board Thickness: |
1.6mm |
| Solder Mask Colour: |
Green |
| Silk Screen Colour: |
White |
| Tg Value: |
140 |
| Cti Rating: |
175 |
| Surface Finish: |
Enig |
| Min Hole: |
0.25mm |
| Min Trace Width/Space: |
0.1/0.1mm |
| Structure: |
Double-Sided Rigid PCB |
| Material: |
Epoxide Woven Glass Fabric Laminate |
| Production Process: |
Semi-Additive Process |
Product Description

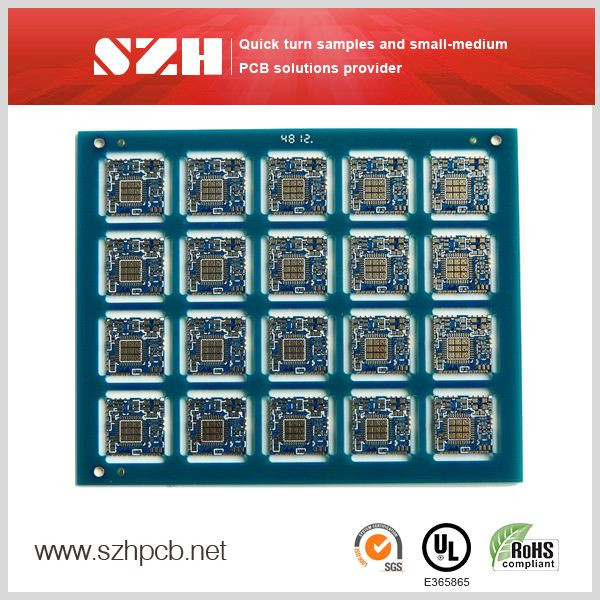

FR4 1.6MM 1OZ Circuit PCB BoardOne-Stop PCB&PCBA Service Provider
1. PCB, PCBA, PCB Design,PCB Layout,PCB Assembly
2. UL, ROHS,CE
3.Lead free technology
4. ISO9001 certificate
5. SMT Pick And Place PCB Assembly
6. Fast delivery with quality assured
PCB/PCBA assembly service
| PCB capability and services: |
1. Single-sided, double side & multi-layer PCB. FPC. Flex Rigid PCB with competitive price,
good quality and excellent service |
| 2. CEM-1, FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc |
| 3. HAL, HAL lead free, Immersion Gold, OSP surface treatment |
| 4. Quantities range from sample to mass order |
| 5. 100% E-Test |
| SMT (Surface mounting technology), COB, DIP. |
| 1. Material Sourcing Service |
| 2. SMT assembly and Through hole components insertion |
| 3. IC pre-programming / Burning on-line |
| 4. Function testing as requested |
| 5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc) |
| 6.OEM/ODM also welcomed |
Our advantages :
1) High-end, Small volume and Various kinds of PCBA service offered;
2) Speedy, Flexible and one-stop service in PCBA;
3) Assembly and Purchasing service offered, all components are promised to be purchased 100%
from Original factories or their pointed agents;
4) Transparent quotation,cost and benefit are detailedly opened to customer;
5) With professional Engineers and Long-term successful experience in cooperating with
customers inland and overseas, all new projects can be developed faster and better than expected;
6) With USA or Japan imported tin cream and tin bar, and 100% AOI testing during production,
all PCBAs we made are more reliable.
What we need:
* Gerber files of the bare PCB
* Bill of materials to include: Manufacturer's part number, type of part, type of packaging,
component locations listed by reference designators and quantity
* Dimensional specifications for non-standard components
* Assembly drawing, including any change notices
* Final test procedures (if available)
Welcome to Sunthone Technology Circuit Co,.Ltd
1. Who we are
| PCB Manufacturer | Flexibility | Quality |
| Sunthone, firstly established as a PCB manufacturer, has its own PCB factory with advanced manufacturing facilities, capable in fabricating up to 24 layers PCB boards. The factory is ISO9001 certified, with its PCB products UL approved and RoHS compliant. Your PCB cost and lead time can be reduced to buy PCBs from us. | Sunthone is highly customer oriented catering for customer's specific requirements. There are various kinds of available services, you can choose either full turn-key solutions or any single specific service. We can handle any size project from minimum quantity one piece to mass production. And we provide quick turn PCB and PCBA manufacturing service. | Sunthone fully understands the importance of quality for your projects. The quality control system is integrated in each step from preliminary PCB manufacturing to final PCBA packing, and a well-organized inspection and test procedure is performed to ensure the superior quality. All the products are 100% inspected for each shipment. |
2.Technical capability & support| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm |
| Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm |
| Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm |
| Min Trace | 0.1mm | Min Annular Ring | 0.1mm |
| Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm |
| Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm |
| Board Warp | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm |
| Solder Mask | Green, Yellow, Red, Black, Blue, White |
| Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP |
| Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic |
| Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD |
| CAM software | Genesis, CAM350 |
3.Service for production
| Standard lead time |
| 2 layers | 4WD |
| 4 layers | 5WD |
| 6 layers | 6WD |
| 8 layers | 7WD |
| 10 layers | 8WD |
| 12 layers | 8WD |
| 14 layers | 9WD |
| More than 16 layers | Up to difficulty |
| Competitive Price |
| Sunthone works with customers to reduce their purchase cost, by our rich experience in management and manufacture, maximized utilization of materials and facilities, and well-trained operational workers.Sunthone's price can be as low as 20% only of some other competitors on some cases. |
| Management Innovation | Raw Material Utilization Rate | Facilities Utilization Rate | Labor Efficiency |
| Sunthone | 100% | 100% | 95% |
| Competitors | 50% | 30% | 50% |
| Values | Maximized raw material utilization reduces the material cost greatly, and enables Sunthone to use better raw materials. | Maximized facilities utilization improves Sunthone's production efficiency and shorten the lead time. | High labor efficiency reduces labor cost, and enables Sunthone to provide better training and welfare for the workers. |
| Customer Benefits | Better quality with better raw materials. | Saves valuable time and money for customer. | Well trained and efficient worker improves quality and lead time. |
4.Others service can be provided
Quick response, Sunthone will reply Customer's any inquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.
Experienced Impedance Designer.
