| Prod Model: |
QD52H-6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Reciprocating |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
1. The vacuum pump and the charging system must only be dedicated to R134a.
2. R134a refrigerant R134a system should be used in line with the dry filter.
3. RSIR Motor
4. Cooling type: S shows "Static Cooling"
5. WV series QD52H with the crank and the connecting rod, piston reciprocating Structure
6. The structure makes low noise and Lower vibration
7. Compact structure also makes high efficiency
8. Good start-up performance
9. Use R134a refrigerant
10.220V to 240V power supply
11. Frequency only for 50HZ
12. Passed CCC/CB/CE/VDE certification
13. LBP
14. Mainly used in mini refrigerators, freezers, water-dispensers, etc. Especially suit for mini fridge
15. The process or suction tube of direct and semi-direct gas compressor can not be interchanged, or it would be difficult to guarantee the performance of compressor
16. The stocking period must be less than 6 months after the date of production. If longer, you have to check whether the filled dry nitrogen is sufficient. Replenishment must be done if necessary.
17. Don't keep the R134a compressor connect pipe open too long better, no more than 10 minutes.
Customer from Brazil
Customer from India

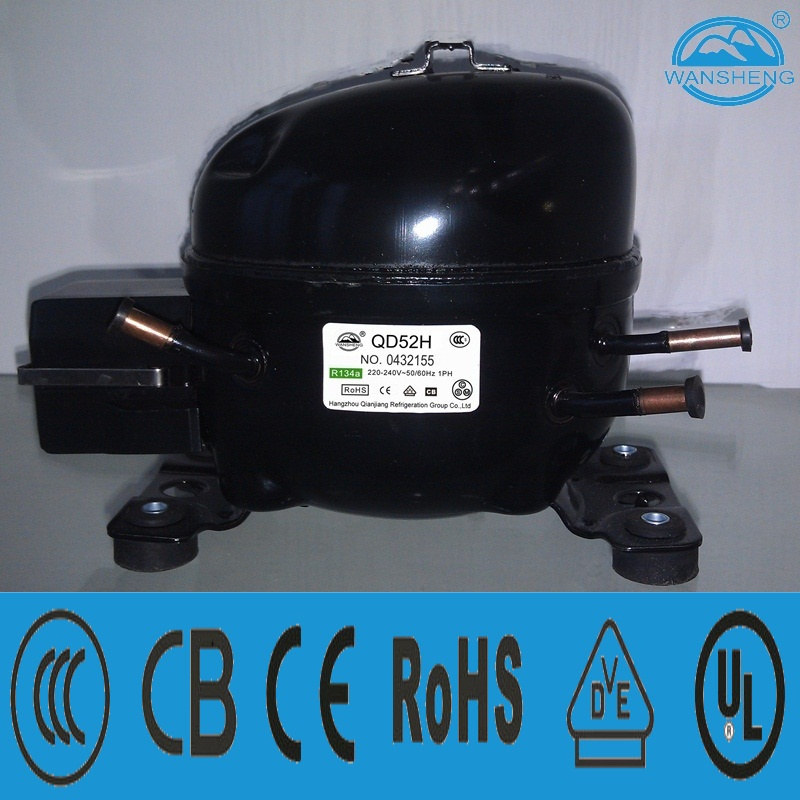

| R134a WANSHENG Low Back Pressure (LBP) Compressor |
| R134a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WV series 220~240V/50-60Hz |
| QD52H | 5.2 | 130/150 | 113/120 | 1/7 | 1.15/1.25 | RSIR | / | / | PTC | S |
Founded in December 1994, Hangzhou Qianjiang Compressor Co., Ltd., is specialized in producing hermetic compressors for refrigerators, freezers and various household appliances. Due to attaching great importance to technical innovation and development of new products, the company owns a technical team to pursue the excellent and constant self-development.
