| Prod Model: |
QD110Y-5 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Reciprocating |
| Performance: |
Low Noise |
| Drive Mode: |
Electric |
| Power Source: |
AC Power |
| Configuration: |
Stationary |
| Material: |
Copper |
| Piston Type: |
Closed |
| Lubrication Style: |
Lubricated |
| Application: |
Low Back Pressure Type |
| Mute: |
Not Mute |
Product Description
Customer from Brazil
Customer from India
1. The compressor meets the needs of different customers.
2. Low vibration and noise
3. High efficiency
4. Good start-up performance
5. High stability
6. High reliability
7. Cooling type: S shows "Static Cooling"
8. R600a compressor should be used in line with PTC starting device
9. RSIR Motor
10. Compressor working condition: Wansheng R600a series compressors can start and run under the 0.25Mpa(gauge) balance pressure and 85% rated voltage; under special conditions voltage low to 165V and high to 242 is allowable.
11. Strictly processed refrigerant oil has been authorized by Wansheng Compressor to add into R600a compressor. It is not allowed to pour out or add randomly; otherwise all technical assurance would be invalid.
12. LBP
13. Mainly used in refrigerators, freezers, display cabinets, wine chests, etc.
14. The process or suction tube of direct and semi-direct gas compressor can not be interchanged, or it would be difficult to guarantee the performance of compressor.
15. The stocking period must be less than 6 months after the date of production. If longer, you have to check whether the filled dry nitrogen is sufficient. Replenishment must be done if necessary.16. Use R600a refrigerant17. Voltage application from 220 to 240V
18. Frequency only for 50HZ
19. WT series QD110Y work within a widely voltage range

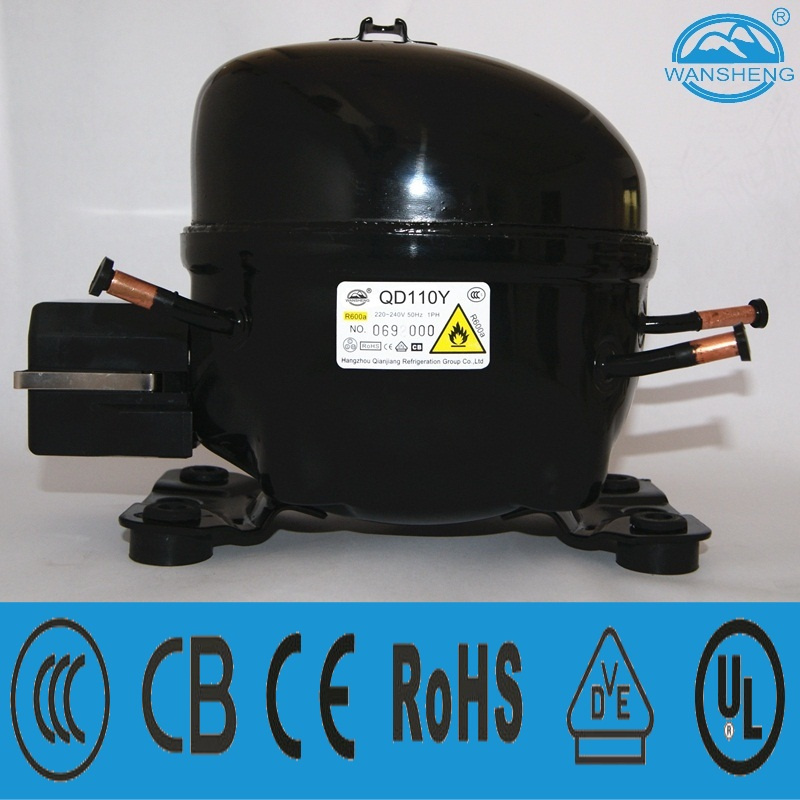

| R600a WANSHENG Low Back Pressure (LBP) Compressor |
| R600a WANSHENG Low Back Pressure (LBP) Compressor | Test Conditions | Evap. Temp.: -23.3°C |
|
| Cond. Temp.: 54.4°C |
|
|
|
| Amb. Temp.: 32.2°C |
|
| Suction. Temp.: 32.2°C |
|
|
|
| Subcooling Temp.: 32.2°C |
|
| LBP ASHRAE |
|
|
|
| Model | Displacement
(cm³) | Cooling Capacity (W) | Rated Power (W) | Nominal power (HP) | COP (W/W) | Motor Type | Starting Capacitor
(μF) | Running Capacitor
(μF) | Starting Relay | Cooling Type |
| WT series 220-240V~50Hz |
| QD110Y | 11.0 | 187 | 134 | 1/6 | 1.4 | RSIR | / | / | PTC | S |
