Q-7 Professional Switch Power Supply Amplifier 700W
Price: |
US $ 100-200/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
L/C,T/T,Western Union,Paypal |
Prod Model: |
Q-7 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Weight: |
Light |
Circuit: |
Switch Mode Amplifier |
Shipping Cost: |
Huge Lower Than Transformer Based |
Circuit Protection: |
Fully and Perfect |
Type: |
Professional Amplifier |
Function: |
Post Amplifier |
Usage: |
Club, Stage, Shool, Church |
Element Number: |
Push-Pull Amplifier |
Used For: |
Professional |
Conductive Mode: |
AB |
Tube Type: |
Transistor Amplifier |
Voltage: |
90V~240V |
Output Number: |
3 |
Sound Channel: |
2.0 |
Product Description
Switch Power Supply Amplifier 700W(Q-7) 1)Adopting SMT technology.It looks on top grade
2)Switching power supply technology is used in power supply to lower the power consumption
3)XLR cannon and terminal block output to make machine more stability
4)With 50HZ /30HZ low cut and channel clipping selector switch
5)It has stereo,bridge and merge output ,Easy operation of function bill in the back side
6)There is a independent protection, clip, signal instruction, so it can monitor the working status of each channel easily.
7)It has overtemperature protection, current protection, short circuit protection
8)built in intelligent limiter system,It can detect output signal is distortion or not.when the distortion is more than 0.5%, the machine will turn into a limiter circuit situation, then reducing the output level to ensure that the amplifier output signal within a certain range will not be clipping, to avoid damage to the speaker unit
9)The amplifier can be 2 ohm mode
700W*2 8 ohm
1100W*2 4 ohm
1500W*2 2 ohm.
Bridge output power is 2000W 8 ohmBridge output power is 3000W 4 ohmVoltage can be 90V~240VNet weight is 11Kg for Q-7 700W and 10.5Kg for Q-5 500W.
Gross weight is 14Kg.
Size is 483*380*88.8mm

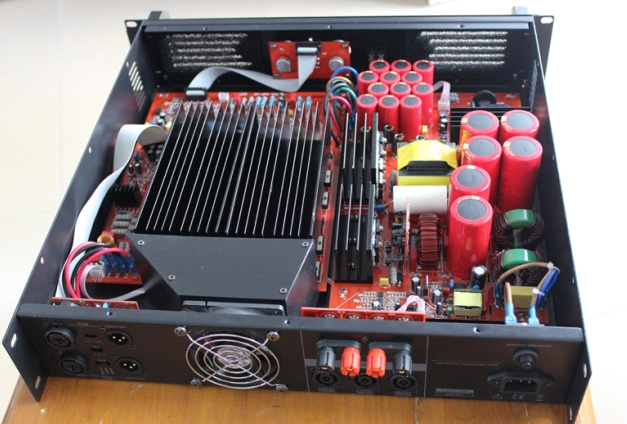

pictures as follows:
Model | Q7 | Q5 |
Power 8Ω | 700W×2 | 500W×2 |
Power 4Ω | 1100W×2 | 800W×2 |
Power 2Ω | 1500W×2 | 1200W×2 |
Bridge output power 8Ω | 2000W | 1700W |
Bridge output power 4Ω | 3000W | 2500W |
Frequency response | +-0.3dB | +-0.3dB |
Signal to noise | ≥100dB | ≥100dB |
Input sensitivity | 0.775V | 0.775V |
THD | ≤0.05%(1KHz) | ≤0.05%(1KHz) |
Damping factor | ≥300 | ≥300 |
Supply power | 3800W | 3300W |
Net weight | 11KG | 10.5KG |
Height | 3U | 3U |
Size(mm) | 484W × 360D × 88H | 484W × 360D × 88H |
Package size(mm) | 590W × 520D × 145H | 590W × 520D × 145H |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
2016 Prolight + Sound Guangzhou
Our booth is A70 4.1.
Address: Area A, China Import & Export Fair Complex. No. 380, Yuejiang Zhong Road, Guangzhou, China.
Time is 29 February~3th, March, 2016
