| Prod Model: |
FP14000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Weight: |
12kg |
| Circuit: |
Switch Power Supply Amplifier |
| Circuit Protection: |
Fully and Perfect |
| Gross Weight: |
16.3kg |
| Logo Brand Change: |
Allow |
| Sample: |
Allow |
| Type: |
Professional Amplifier |
| Usage: |
Club, Stage, Shool, Church |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Post Amplifier |
| Element Number: |
Push-Pull Amplifier |
| Conductive Mode: |
D |
| Sound Channel: |
2.0 |
| Output Number: |
2 |
| Voltage: |
90V~240V |
Product Description
Hot sale FP14000 extreme power amplifier 8ohm 2350W*2channel1pc sample accepted
welcome OEM, warranty 2 year FP14000 technical parameters
8Ω Stereo Power: 2X2350W
4Ω stereo power: 2X4400W
2Ω stereo power: 2X7000W
8Ω Bridged Power: 8800W
4Ω Bridged Power:14000W
Frequency response (+0 /-0.3dB, 1W/8Ω): 20Hz-34KHz
THD 20 Hz-20 kHz 1W: <0.1%
SNR:> 112dB
channel separation (crosstalk) 1 kHz:> 70dB
input connector: XLR female
output connectors: Speakon Block
input impedance: 20KΩ balanced
level adjustment: Front panel potentiometer, from minus infinity to 0dB
cooling: variable speed fan, airflow from front to rear
amplifier protection: short circuit, DC voltage, overheating, RF, ultra-low frequency protection power Specifications: AC 220V (± 10%) 50-60Hz
chassis size (H * W * L): 88mmX483mm × 396mm
packing Size (H * W * L): 180mmX560mm × 500mm
The transisitors are Onsemi transistors.
the resistors are 1% metal film

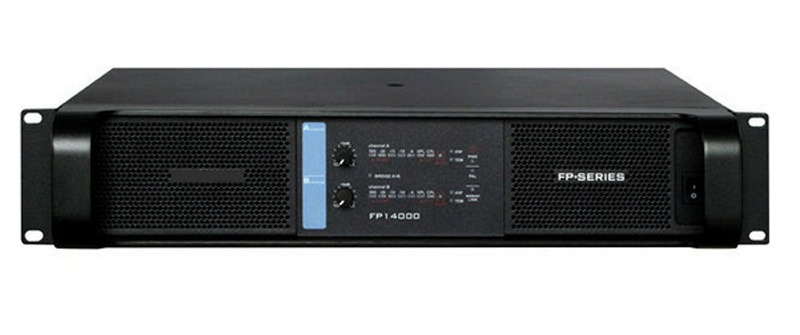

Front picture:

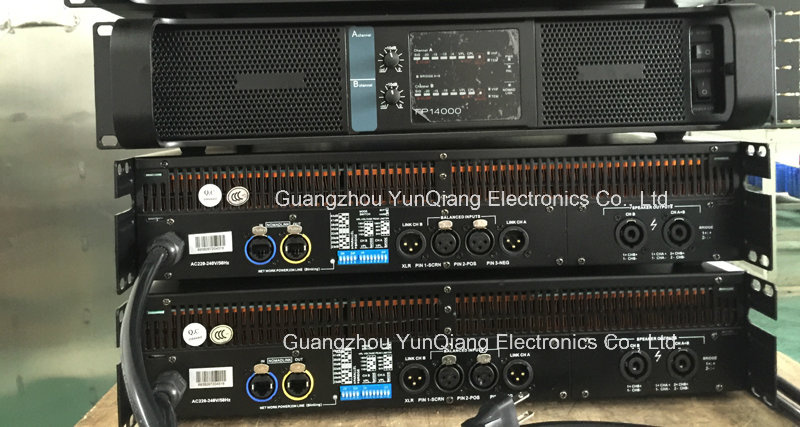

Panel pictures:
Inside Picture:
| P Series | FP7000 | FP9000 | FP14000 | FP6000Q | FP10000Q |
| 8ΩStereo Power(RMS) | 1500WX2 | 1800WX2 | 2400WX2 | 700WX4 | 1350WX4 |
| 4ΩStereo Power(RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1300WX4 | 2700WX4 |
| 2ΩStereo Power(RMS) | 3500WX2 | 4500WX2 | 7000WX2 | 1500WX4 | 2500WX4 |
| 8ΩBridged Power(RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 |
| 4ΩBridged Power(RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 dBA |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD |
| TourClass Protection | ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush, sub/ultrasonic input |
| Operating voltage, 230 V / 115 V nominal | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 kOhm |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
| Net weight(kg) | 12 |
| Gross weight(kg) | 15 |
Guangzhou YunQiang Electronics Co., Ltd. is a professional audio manufacturer which has R& D, Production department, Marketing Dept., and Technical and service Dept.,
The main products include: Power Amplifier, Karaoke amplifier, Professional Speaker, Karaoke speaker, Sound Mixer, Audio processor and Conferencing systems.
Nowadays, in professional sound industry, more and more people are seeking for amplifiers with light weight, high power output, high sound quality and high stability.
To get good sound quality, we should have high quality components. And to ensure the stability, we must solve the problem of heat dissipation. Now, we have this amplifier FP14000, FP10000Q, FP-8000Q. Our FP14000, FP10000Q, FP-8000Q is Class TD switching amplifier fixed with NOVER (from UK) power capacitors, ON-Semi power transistors other high quality electronic spare parts. Professional circuit design and actual copper heat sink with better structure make fast heat dissipation possible. And fast heat dissipation contributes to high stability of the amplifier. Once you have our amplifiers at your hands, open the chassis, you will find artwork and detail difference. The swich power amplifier can be used to drive line array loudspeaker systems in touring, living show and other applications with high requirement on sound quality and stability.
Since the foundation of our enterprises, we have been concentrating on designing new products, doing research on new sound technology, training our staff, as well as improving our quality to products and management system. And now we have had a unique management experience, advanced production equipment, abundant design capability, and the large marketing network and after-sales service system.
Now we have passed newest CE, FCC, RoHS, SGS, CCC, ISO9001 on March, 2015.
