| Prod Model: |
HS-600 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Guangzhou ,Cn |
| Brand Name: |
Qqchinapa |
| Use: |
Hotel,School,Airport,Departmen,Church |
| Certificate: |
CE, FCC,RoHS,CB |
| Protetion: |
High Temp,Overload&Short-C |
| Factory History: |
More Than 10 Years |
| Warranty: |
3 Years |
| Deliver Time: |
2-25days |
| Factory Ability: |
OEM ODM |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Function: |
Pure Amplifier |
| Output Number: |
2 |
| Conductive Mode: |
H |
Product Description

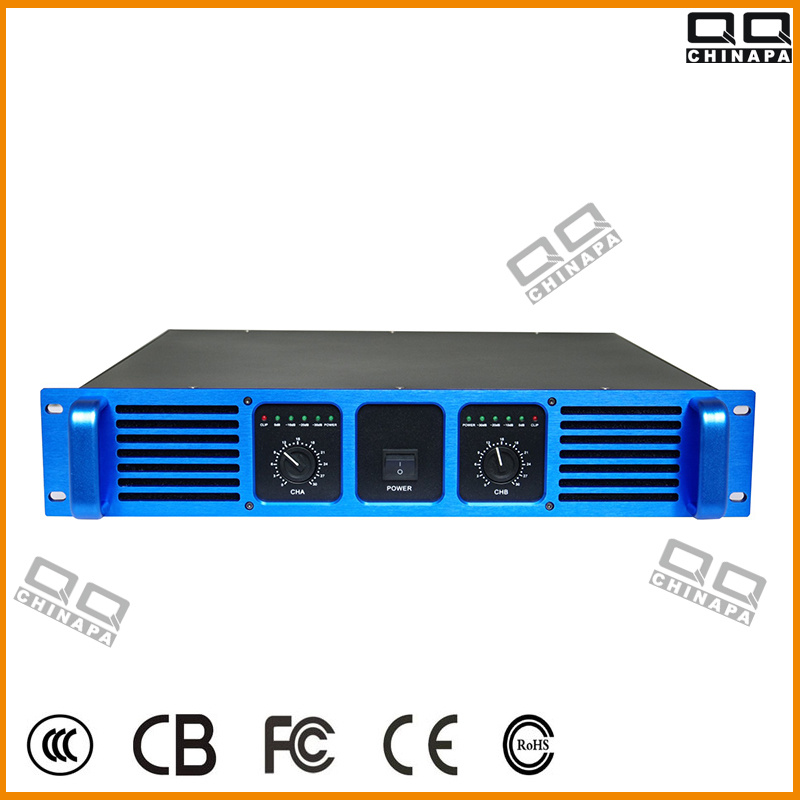

Professional Subwoofer Power Amplifiers 350W-800W
Class H amplifier
High power amplifier
Light weight amplifier
Features
with short circuit protection automatic locking circuit
Smt modular design, advanced circuit protection, unique heat dissipation design.
Thd @ rated power 4 ohms 1 khz<0.01%
20hz - 20khz<0.03%
Hum&noise-103db
Input cmrr>80 db
Gain
36db
Damping factor 1 khz, 8 ohms> 200
Input sensitivity0.775v(0db) 1.22v 1.6v
Frequency response20hz-20khz, +0/-0.5db
Input impedance(actively balanced)20kω
Power requirement
220 va @ 18amps
| Model | HS350 | HS450 | HS650 | HS800 |
|
| 8Ohm Stereo Power | 2X350W | 2X450W | 2X650W | 2X800W |
|
| 4Ohm Stereo Power | 2X525W | 2X700W | 2X950W | 2X1200W |
|
| 2Ohm Stereo Power | 2X680W | 2X1200W | 2X1300W | 2X1800W |
|
| 8 BTL | 800W | 1400W | 1800W | 1500W |
|
| S/N Ratio | >100dB | >100dB | >100dB | >100dB |
|
| Damping Factor | >300:1 | >300:1 | >300:1 | >700:1 |
|
| Height | 2U | 2U | 2U | 3U |
|
