| Prod Model: |
ME602 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
2*600W |
| Place Of Origin: |
Guangzhou, Cn |
| Brand Name: |
Qqchinapa |
| Use: |
Hotel, School, Airport, Departmen, Church |
| Certificate: |
CE, FCC, RoHS, CB |
| Protetion: |
High Temp, Overload&Short-C |
| Factory History: |
More Than 10 Years |
| Warranty: |
3 Years |
| Deliver Time: |
2-25days |
| Factory Ability: |
OEM ODM |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
IC Amplifier |
| Function: |
Pre-amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
D |
| Sound Channel: |
Bi-Channel Power Amplifier |
| Output Number: |
2 |
Product Description

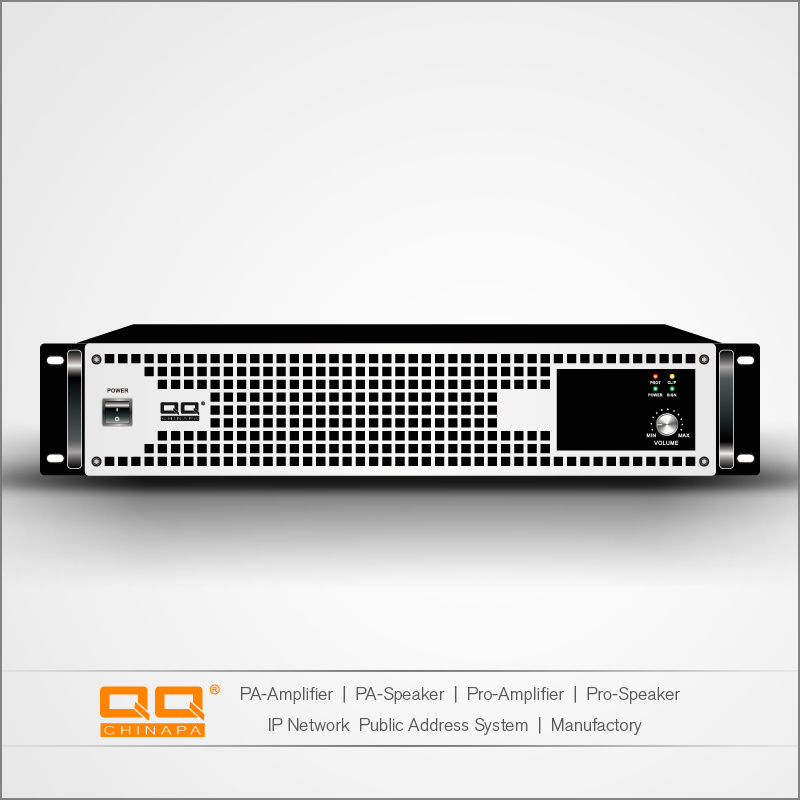

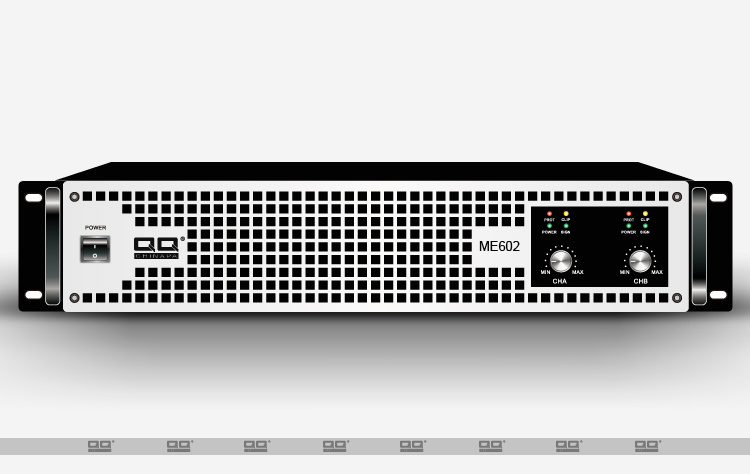

ME602 professional power amplifiers subwoofer power amplifier
Transformer amplifier
2-channel amplifier
8 ohms: 2X600W amplifier
4 ohms: 2X900W amplifier
ME602 POWER AMPLIFIER SPECIFICATIONS
Features
SMT modular design, advanced circuit protection, unique heat dissipation design.
THD @ Rated Power 4 ohms 1 KHz<0.01%
20Hz - 20KHz<0.03%
Hum&Noise-103dB
Input CMRR>80 dB
Gain
36dB
Damping Factor 1 kHz, 8 ohms> 200
Input Sensitivity0.775V(0dB) 1.22V 1.6V
Frequency Response20Hz-20kHz, +0/-0.5dB
Input Impedance(actively balanced)20kΩ
Power Requirement
220 VA @ 18amps
Dimension & Weight
Amplifier Dimension(H*W*L): 88mmX483mmX483mm
Carton Dimension(H*W*L): 155mmX600mmX640mm
Net Weight: 19.5kg
Gross Weight: 23.7kg
| Model | ME252 | ME352 | ME452 | ME602 | ME752 | ME902 | ME1202 | ME1402 |
| Power 8 Ohms | 2*250W | 2*350W | 2*450W | 2*600W | 2*750W | 2*900W | 2*1200W | 2*1400W |
| Power 4 Ohms | 2*400W | 2*550W | 2*700W | 2*900W | 2*1200W | 2*1400W | 2*1850W | 2*2100W |
| Power 8 Oh | 800W
| 1100W
| 1400W
| 1800W
| 2400W
| 2800W
| 3700W
| 3700W
|
| Damiping Facto | >200
| >200
| >200 | >200
| >200
| >200
| >200
| >200
|
| Signal to Noise Rate | >=80dB
| >=80dB
| >=80dB
| >=80dB
| >=80dB
| >=80dB
| >=80dB
| >=80dB
|
CrossTalk
| >=70dB
| >=70dB
| >=70dB
| >=70dB
| >=70dB
| >=70dB
| >=70dB
| >=70dB
|
N.W.Kgs
| 17
| 18.5
| 19
| 19.5
| 23
| 25
| 27
| 29
|
G.W.Kgs
| 21.2
| 22.7
| 23.2
| 23.7
| 27.2
| 29.2
| 31.2
| 33.2
|
Frequency Response:20Hz-20KHz,+0/-0.5dB
THD+N:1KHz:<0.01%,20Hz-20KHz:<0.03%
Input Impedance:0.775V(0dB) 1.2V 1.6V
Cooling:Front-Rear airflow.temperature controlled speed
Amplfier Protection:Short-C,Over heat,Over Load,direct Voltage,Open Circuit,Radio Frequency
