| Prod Model: |

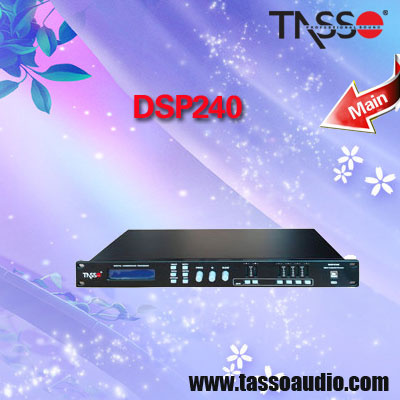

DSP240 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Stage Audio Processor |
| Application: |
Stage Concert Disco Club |
| Certification: |
CCC |
Product Description
1. Digital speaker processor,
2. Loudspeaker power amplifier and line array PA system are our strong points
3. Selling to 95 countries and regions
4. Most are CE and RoHS certified.
5. Fantastic sound with good price!
To get the best goods with least money is an eternal yearn for a user while to achieve it is just TASSO's target. Bearing this in mind, our aim is always to "good value for
Money" products to our customers. And, continuous researching and developing ensure that our products can meet the most demanding needs of our customers. Our products have been selling to over 95 countries and regions and it is now well and widely recognized. Rapid growth of our export market is the best attestation. OEM production is another proportion of our growing business.
"Quality, customer foremost and to be excelsior" is our mission. Hand in Hand cooperation and Heart to Heart service is our target.
Contact information
Tel: +86-20-39141508
Fax: +86-20-31190966
Website: www.tassoaudio.com
|
INPUT IMPEDANCE |
>10k Ohm,electronically balanced |
|
CMMR |
>50dB(3Hz-20KHz) |
|
OUTPUT IMPEDANCE |
50 Ohms,electronically balanced |
|
MAXIMUM INPUT LEVEL |
+20dBu |
|
MAXIMUM OUTPUT LEVEL |
+20dBu into 600 Ohms or greater |
|
|
15Hz-20KHz,25dB 15Hz-40KHz |
|
DYNAMICRANGE |
112dB unweighted 22Hz to 22kHz, |
|
|
>117dB on AES?EBU input |
|
DISTORTION(THD) |
< 0.005%,20Hz-20kHz@+10dBu output |
|
DELAY STEP |
21us |
|
MAXIMUM DELAY |
7ms |
|
OUTPUTGAIN |
±21dB variable in 0.1dB steps |
|
INPUTGAIN |
±15dB variable in 0.1dB steps |
|
MAXIMUM NUMBER OF EQ FILTERS |
60(depending on crossover slopes) |
|
EQ GAIN |
±15dB variable in 0.2dB steps |
|
Q(BANDWIDTH) |
0.05 to 3 octaves,variable in 0.05 steps |
|
EQ FREQ |
15Hz to 20kHz |
|
DYNAMIC SLOPE |
2:1 to 20:1 (dynamic EQ's only) |
|
Dimensions(HWD) |
47×483×160mm |
|
Shipping(HWD) |
80×525×250mm(0.03CBM) |
|
Net weight |
3.6kg |
|
GROSS WEIGHT |
5.0kg |
