| Prod Model: |

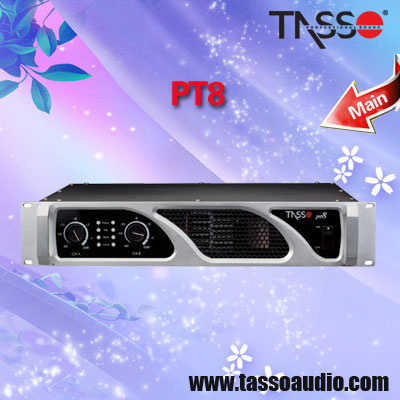

PT8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Power Amplifier |
| Application: |
Commercial |
| Certification: |
CCC |
Product Description
The PT Series amplifier is a flagship in TASSO family. The PT amplifier represents a new benchmark for demanding idea: Advantages of low-weight and reduced heat, while preserving sound. This series is competitively priced and is well-suited for different applications.
Features:
1. Low current draw
2. Latest generation of high-speed, wide-bandwidth output devices.
3. Cooled by variable speed fan with back-to-front airflow.
4. Mode selector switch for stereo, parallel and bridged-mono operation.
Contact information
Tel: +86-20-39141508
Fax: +86-20-31190966
Website: www.tassoaudio.com
| Specifications | Pt3 | Pt6 | Pt8 |
| 8Ω Stereo power | 2×200W | 2×300W | 2×400W |
| 4Ω Stereo power | 2×300W | 2×400W | 2×700W |
| 8Ω Bridged power | 600W | 800W | 1400W |
| Frequency Response | 20Hz-20KHz,±0.1/-3dB(1W/8Ω) |
| THD into(4Ω,1KHz) | <0.05%@300W | <0.05%@400W | <0.05%@700W |
| SMPTE IMD | <0.01%@150W | <0.01%@250W | <0.01%@350W into 8Ω(60Hz&7KHz) |
| into 8Ω(60Hz&7KHz) | into 8Ω(60Hz&7KHz) |
| Slew Rate | 20V/μS | 28V/μS | 30V/μS |
| Damping Factor | 150:1,1KHz@8Ω | 200:1,1KHz@8Ω | 250:1,1KHz@8Ω |
| Input CMRR (@1KHz) | 60dB "> >60dB |
| Voltage Gain | 29×Standard | 40×Standard | 49×Standard |
| Input sensitivity | 0.775V for full rated power |
| Input Impedance | 20KΩ,balanced ;10KΩ,unbalanced. |
| Hum and Noise | -103dB |
| Crosstalk | <60dB |
| Connectors(Per channel) | Female XLR (Pin2+), TRS (tip+),5-way output binding post. |
| Power Supply | 220V/50Hz-60Hz |
| Cooling | 1 variable speed DC fans |
| Controls | 2 front panel attenuators, rear panel signal ground lift jumper. |
| Indicators(Per channel) | Protect LED, clip LED, signal LED, power LED. |
| Protection | Temperature, DC, sub/ultra-sonic, short circuit, IGM, output |
| Max current Draw 220V | 8A |
| Dimension HWD(mm) | 100×483×408 |
| Shipping HWD(mm) | 140×570×480(0.04CBM) |
| Net Weight(Kg) | 14.5 | 16 | 16.5 |
| Gross Weight(Kg) | 16 | 17.5 | 18 |
