| Prod Model: |
Sanway FB-4K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connectors: |
Original Neutrik |
| Class: |
Td |
| Type: |
Professional Amplifier |
| Function: |
Pre-amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Conductive Mode: |
D |
| Usage: |
KTV System |
| Sound Channel: |
2.1 |
| Output Number: |
2 |
Product Description

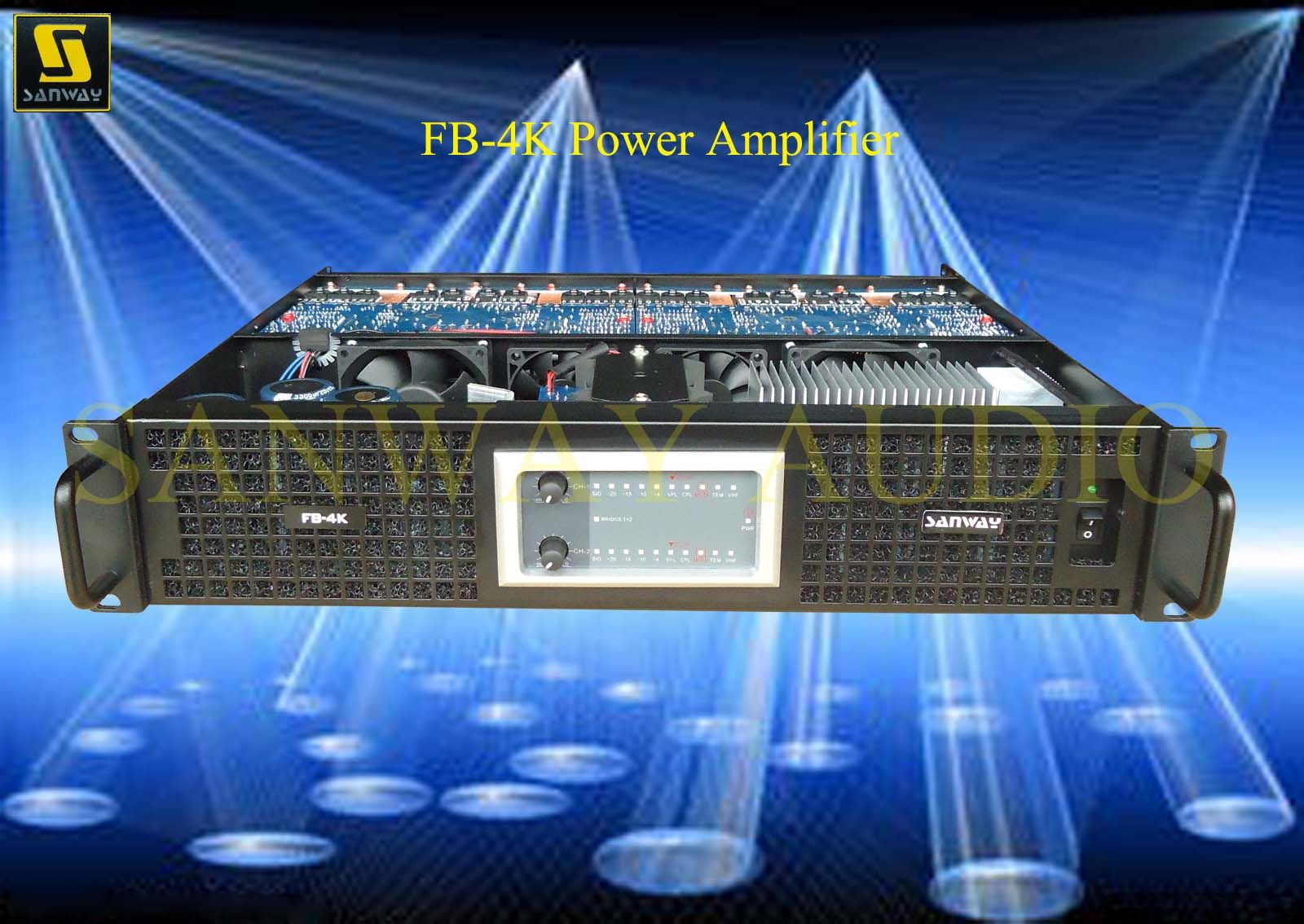

Professional Power 850W Amplifier (FB-4K)
1>. Excellent Performance Sound System Amplifier
2>. Lightweight Swtiching Power Amplifier
3>. High Reliability; High Stability
4>. Net Weight: 13kg
5>. Perfect for Disco Installation or Touring Live Sound Events
6>. Good Price and Fast Delivery
FB-4K Stereo Power Amplifier
ITEMFB-4K
Output Power20-20kHz, 1W with 1 kHz
8Ω Stereo Power(RMS)800WX2
4Ω Stereo Power(RMS)1600WX2
2Ω Stereo Power(RMS)2000WX2
8Ω Bridged Power(RMS)3200W
4Ω Bridged Power(RMS)4600W
Frequency Response(+o/-0.3dB, 1W/8Ω )20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1 W< 0.1%
Signal-to-Noise Ratio> 112 dBA
Channel separation (Crosstalk) at 1 kHz> 70 dB
Input Connectors (per channel)3-pin XLR, electronically balanced
Output Connectors (per channel)Binding Posts 2-pole
ClassTD
TourClass Protectionshort circuit, DC voltage, turn-on/off transient, current, inrush
Operating voltage130-265 V / 65-135 V selectable
Voltage Gain(dB)23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance20 Kohms
Level adjustment (per CH. ) Front-panel potentiometer, 31 position detented from -inf to 0 dB
Dimensions (W× H× D)483× 88× 396mm
Packing dimension575× 140× 550mm
Net weight(kg)12
|
FB-4K Stereo Power Amplifier |
|
|
|
|
ITEM |
FB-4K |
|
Output Power |
20-20kHz, 1W with 1 KHz |
|
8Ω Stereo Power(RMS) |
800WX2 |
|
4Ω Stereo Power(RMS) |
1600WX2 |
|
2Ω Stereo Power(RMS) |
2000WX2 |
|
8Ω Bridged Power(RMS) |
3200W |
|
4Ω Bridged Power(RMS) |
4600W |
|
Frequency Response(+o/-0.3dB, 1W/8Ω ) |
20 Hz - 34 kHz |
|
THD 20 Hz - 20 kHz for 1 W |
< 0.1% |
|
Signal-to-Noise Ratio |
> 112 dBA |
|
Channel separation (Crosstalk) at 1 kHz |
> 70 dB |
|
Input Connectors (per channel) |
3-pin XLR, electronically balanced |
|
Output Connectors (per channel) |
Binding Posts 2-pole |
|
Class |
TD |
|
TourClass Protection |
short circuit, DC voltage, turn-on/off transient, current, inrush |
|
Operating voltage |
130-265 V / 65-135 V selectable |
|
Voltage Gain(dB) |
23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
|
Input impedance |
20 Kohms |
|
Level adjustment (per ch. ) |
Front-panel potentiometer, 31 position detented from -inf to 0 dB |
|
Dimensions (W× H× D) |
483× 88× 396mm |
|
Packing dimension |
580× 180× 560mm |
|
Net weight(kg) |
13 |
