| Prod Model: |
QW15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| 446W*450*677h: |
Peak Power :2400W |
| Sound Channel: |
2 |
Product Description

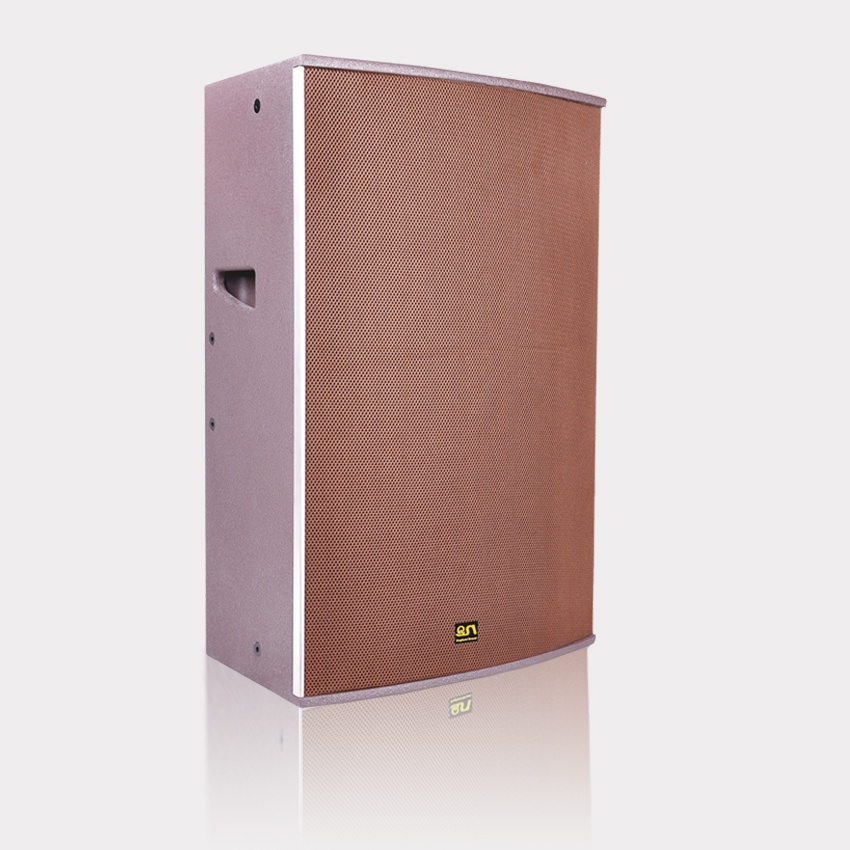

Name: Professional audio speaker/lound speaker QW15
Product Feature:
The side has the aluminum batten, it shows a high class quality.
Speaker net surface trend of using elastic screen cloth, beautiful and elegant, texture.
Soft tone with stiffness, low-frequency mellow plump, real natural, delicate treble bright.
Box structure of the multilayer birch plywood made of strong, durable, the surface is
Provided with multiple installation, lifting hole, suitable for professional speakers in various places arbitrary suspension.
Divider treble part adopts the over-current protection circuit, can effectively protect the tweeter in long-term speaker power
Working condition, very good to prevent the current is too large for a variety of reasons and damage the soprano.
Applicable to a variety of high-grade places, such as a large wine, high-end KTV, multi-function hall, etc.
|
Model |
QW15 |
QW12 |
|
System |
2-WAY FULL RANGE |
2-WAY FULL RANGE |
|
Frequency response |
45Hz-18KHz |
55Hz-18KHz |
|
Driver |
LF:15" × 1,HF:3"×1 |
LF:12" × 1,HF:1.73"×1 |
|
Nomina limpedance |
8 Ohms |
8 Ohms |
|
System sensitivity |
100dB |
97dB |
|
Rated power |
600W |
450W |
|
Peak power |
2400W |
1800W |
|
Maximum SPL |
134dB |
130dB |
|
Coverage angle |
horizon90°,verticality60° |
|
Crossover mode |
Inside crossovers |
|
Suspension |
with flying points |
|
Net weight |
31.7KG |
22.5kg |
|
Size(mm) |
446W × 450D × 677H |
370W × 385D × 595H |
|
Package size(mm) |
545W × 537D × 795H |
465W × 485D × 723H |
