| Prod Model: |
Sanway W8LM |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe |
| Finish: |
Black or Grey Textured Paint |
| Net Weight: |
29kg |
| Speaker System: |
Optional Combination |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Wire / Remote Control |
| Speaker Material: |
Wood |
| Monitor: |
VFD Screen |
| Application: |
Commercial |
| THD: |
0.005%-0.01% |
| Noise: |
<102dB |
Product Description

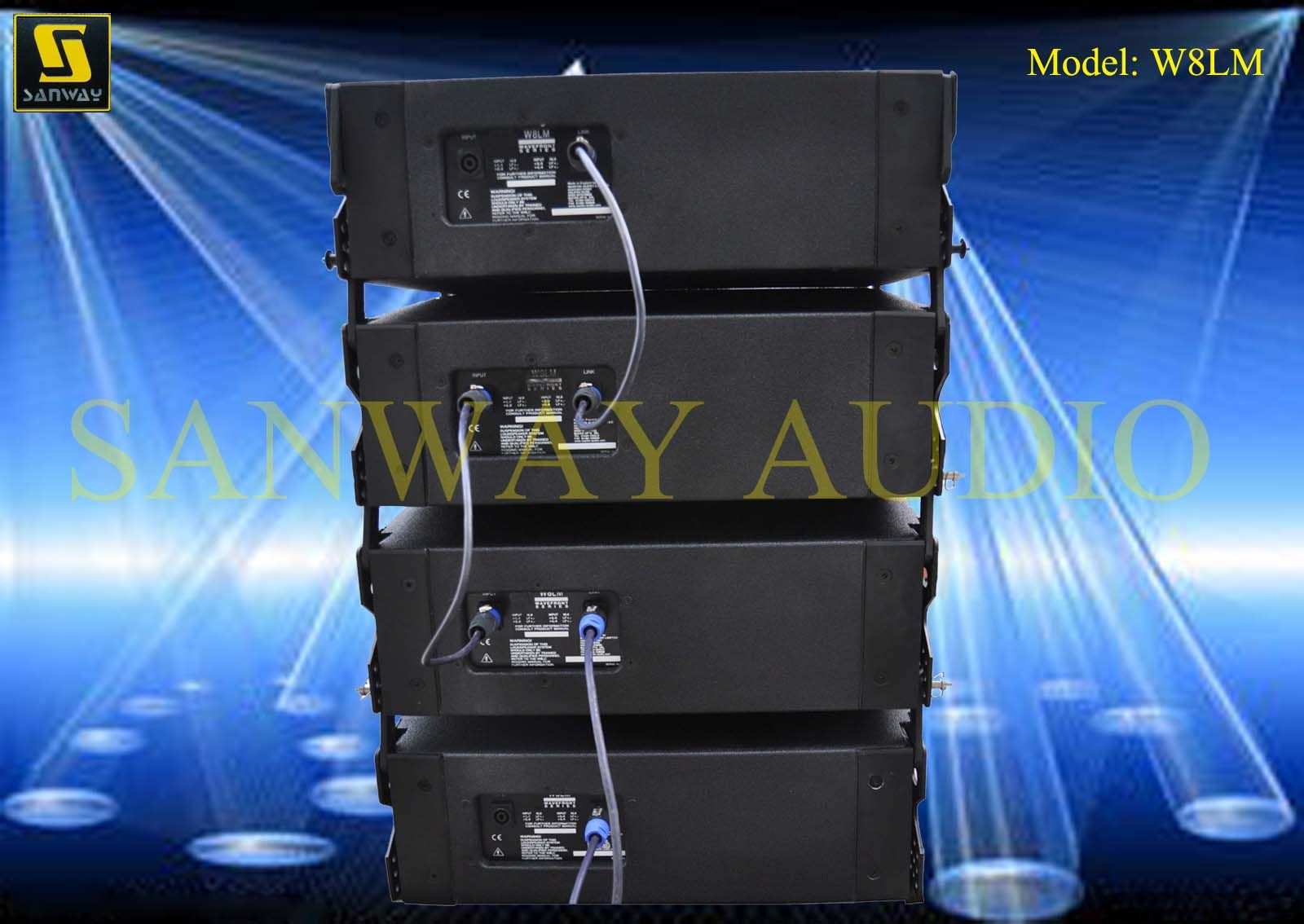

PRO Audio, Sound System W8LM
1). PRO audio line array speaker system
2). Water proof, with LF8''x1, MF8''x1 and HF1.4''x2 neodymium dirivers
3). Textured paint Waterproof Line Array Sound System
4). Mini PRO Audio Line Array Speaker with Neodymium Drivers
China best seller FP10000Q Power Amplifier:
http://cnsanway.en.made-in-china.com/product/DqimbPglZeWC/China-10000W-Audio-Amplifier-PA-Power-AMP-Professional-Amplifiers-Fp10000q.html
Applications
Theatre Sound Reinforcement, line array DJ speaker
Live Sound Reinforcement, line array sound system
Corporate Events, professional line array audio
Fixed Installations
Delay systems for large scale outdoor PRO audio sound reinforcement
TECHNICAL SPECIFICATION
|
Type |
Sanway W8LM 8'' Three Way Mini PRO Audio Line Array |
|
Drivers: LF+MF section |
8" (200mm)/2" (50mm) voice coil, reflex-loaded direct radiator
8" (200mm)/2" (50mm) voice coil, front horn loaded, rear reflex loaded |
|
Drivers: HF section |
2 x 1" (25mm) exit HF compression drivers, horn loaded |
|
Rated Power: |
LF + MF: 400W AES, 1600W peak HF: 75W AES, 300W peak |
|
Sensitivity: |
LF+MF:100dB, HF:106dB |
|
Maximum SPL |
LF + MF: 125dB continuous, 131dB peak
HF: 125dB continuous, 131dB peak |
|
Nominal Impedance |
LF + MF: 12 ohms
HF: 12 ohms |
|
Enclosure |
Vertical , trapezoid with 3.75º wall angle, multi-laminate ply-wood construction |
|
Finish |
Textured paint |
|
Protective Grille |
Perforated steel |
|
Connectors |
2x NL4 |
|
Dimensions: |
W) 620mm * (H) 243 mm * (D) 400mm |
|
Weight: |
29kg |
