Prod Model: |
Sanway W8LC |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
Type: |
Three Way Line Array |
Color: |
Black and Grey |
Enclosure Material: |
18mm Plywood |
Speaker Material: |
Wood |
Amplification Type: |
Passive |
Usage: |
Music Live |
SNR: |
81-90dB |
Structure: |
Closed Enclosure |
Product Description

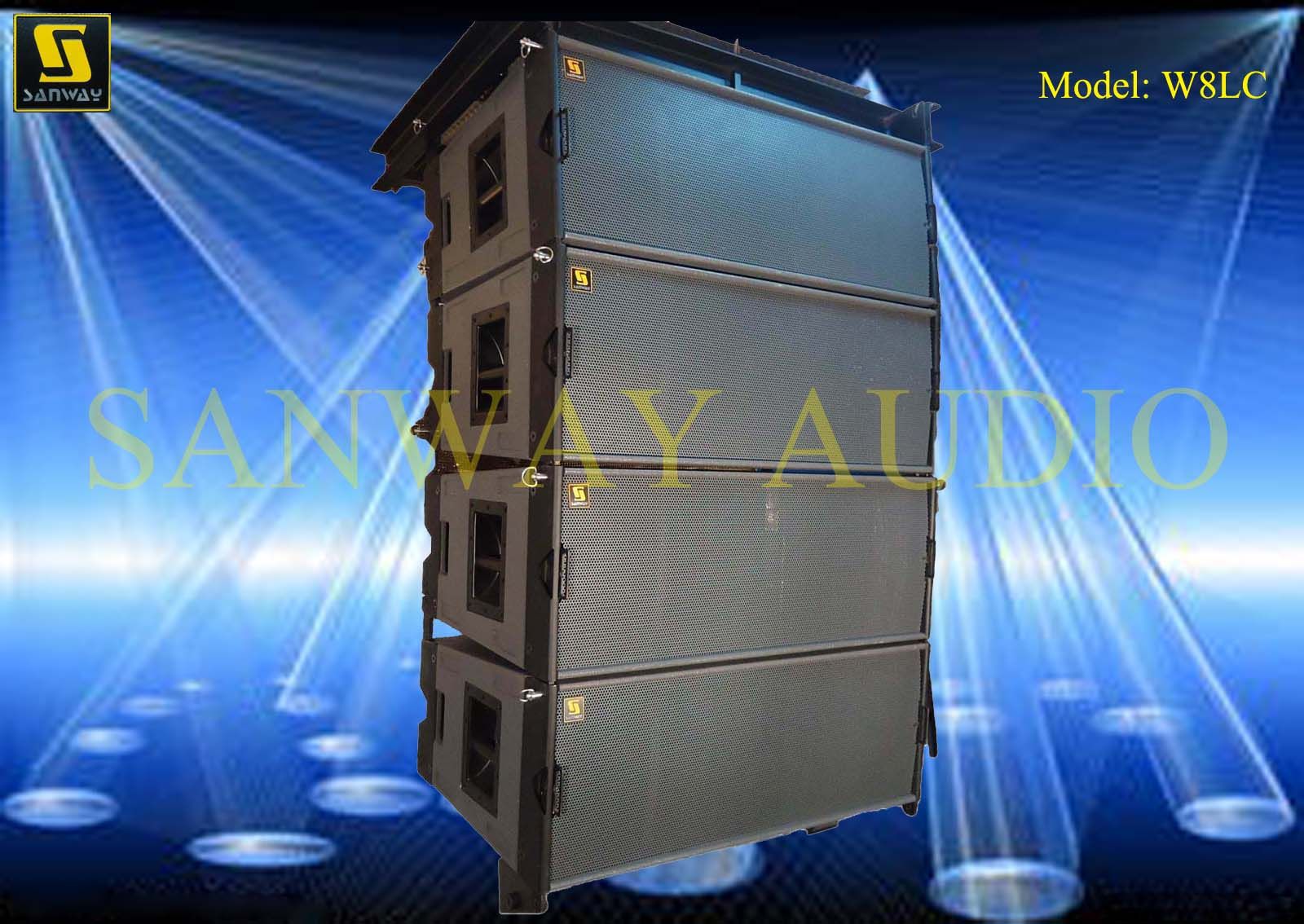

Single 12" Neodymium Line Array Pro Audio Loudspeaker ( W8LC )
1>. Line Array Loudspeaker
2>. 12'' Three way Line Array System
3>. Audio Speaker Line Array Professional
4>. Single 12" Neodymium Line Array
Sanway Hotseller FP10000Q Power Amplifier Link: http://cnsanway.en.made-in-china.com/product/DqimbPglZeWC/China-10000W-Audio-Amplifier-PA-Power-AMP-Professional-Amplifiers-Fp10000q.html
FEATURES
1). Compact, high performance three-way line array enclosure
2). High power - maximum SPL 129dB continuous, 135dB peak (single unit)
3). Superior bass impact - all horn design
4). Wide bandwidth - 60Hz-18kHz ± 3dB (single unit)
5). True 90° (-6dB) horizontal MID and HF pattern control
6). Very smooth off-axis response - useable out to 120° (-10dB)
7). Compatible with the full-sized W8L Line Array
8). Fast, integral rigging system with variable splay angles from 0° To 7.5°
9). Common grid may be used for flying or ground stacking
Specifications:
W8LC Neodymium line array speaker system |
Frequency Response (±3 dB) |
60 Hz - 18 kHz |
Sensitivity (1w/1m) |
LF 103 dB / MF 106 dB / HF 109 dB |
Maximum SPL |
LF 135 dB / MF 135 dB / HF 135 dB |
Nominal Impedance |
LF: 8 ohms MF: 8 ohms HF: 8 ohms |
Power rated(rms) |
LF: 400 watt MF: 200 watt HF: 100 watt |
Peak Power handling |
LF: 1600 watt MF: 800 watt HF: 400 watt |
Nominal Dispersion |
90ºH optional×7.5ºV |
Dimensions (H x W x D) |
367 mm x 1000 mm x 550 mm |
Enclosure Material |
18 mm plywood |
Surface Finished |
Textured grey wear-resistant paint |
Grille |
heavy grey perforated steel framed |
Net weight |
58kg |
Low Frequency Driver |
12" high effeciency Neodymium magnet driver |
Mid Frequency Driver |
2×6.5" high effeciency Neodymium magnet driver |
High Frequency Driver |
3×1" effeciency Neodymium magnet driver |
Input Connectors |
Speakon NL8×2 |
