| Prod Model: |
P-260 |
| Markets: |
Mid East |
| Hi-Fi: |
Hi-Fi |
| Operation Mode: |
Button Control |
| Application: |
Home |

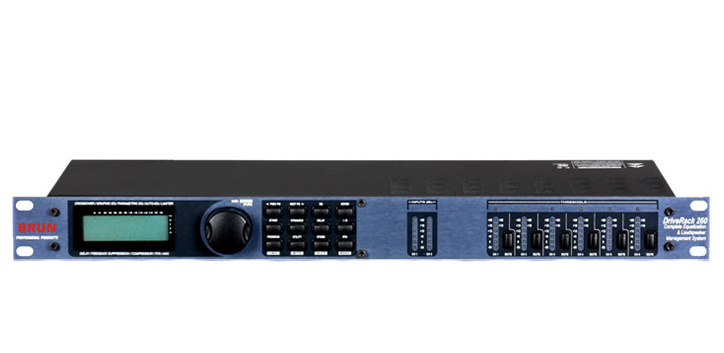

Product Description
Features
Stereo Feedback Suppressor 2 × 12 group fast tracking notch filter
dual 28-band graphic equalizer
classic compressor
120A sub-harmonic synthesizer
2 × 3,2 × 4,2 × 5,2 × 6 crossover format available
stereo multi-band parametric equalizer
stereo output limiter
speaker trimming delay
pink noise generator
Auto-EQ automatic room equalization compensation
JBL Speaker and Crown Power Amp Tunings with Setup Wizard
(Set navigation elf) function
25 factory preset / 25 user setting program memory
2 input, 6-output
RTA-M real-time spectrum analyzer is located in the panel microphone inputs with phantom power
24-Bit A / D converter provides a dynamic range of greater than 110dB
Patent Type IVTMA / D converter circuit
LCD display
Technical Parameters
Analog Input: Enter Quantity: (1 group) RTA microphone input
(2 groups) Line Input
Type: Electronically balanced / RF filtering, XLR female
Impedance:> 40kΩ
Maximum input level: +20 dBu
CMRR:> 45dB
RTA microphone phantom power: +15 VDC
RTA Microphone Equivalent Input Noise: <-110dBu, 22Hz,-22kHz, 150Ω
Analog output:
outputs: (6 groups) Line Output
Type: Electronically balanced / RF filtering, XLR Male
Impedance: 120Ω
Maximum Output Level: +20 dBu
A / D characteristics:
Category: Type Iv Conversion
Dynamic range: 110dB A-weighted, 107dB without weighted
Type IV dynamic range: 123dB, with transient signals, A-weighted, 22kHz BW
121dB, with transient signal, no weighting, 22kHz BW
115dB, with the program signal, A-weighted, 22kHz BW
Sampling Frequency: 48kHz
A / D characteristics:
Dynamic range: 112dB A-weighted, 110dB without weighting
System features:
Dynamic range:> 110dB non-weighted,> 107dB A-weighted
THD + Noise: 0.002%, +4 dBu, 1kHz, 0dB input gain
Frequency Response: 20Hz-20kHz, ± 0.5dB
Channel Crosstalk: <-110dB, 120dB general
Input to Output Crosstalk: <-110dB
Delay: Each output channel 10ms (of 60ms)
