Prod Model: |
SC-234XL |
Markets: |
Southeast Asia |
Hi-Fi: |
Not Hi-Fi |
Operation Mode: |
Button Control |
Application: |
Home |
THD: |
<0.005% |
Product Description

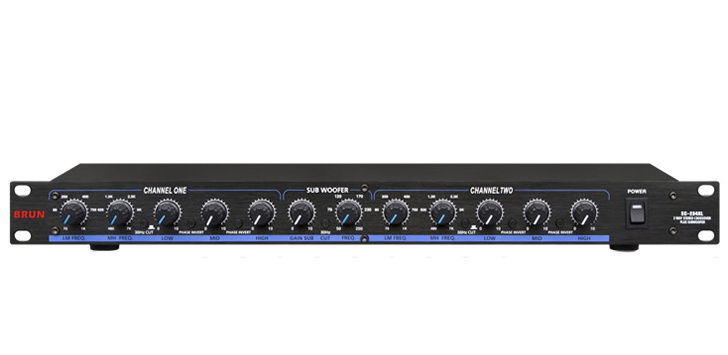

234XL is a stereo 3-way, stereo 2-way and mono 4-way electronic crossover. The most important feature of this crossover is that it can achieve the crossover function for stereo3-way, stereo 2-way and mono 4-way by converted the switch on rear panel, and the frequency point between high /mid frequency, mid / low frequency can be adjusted within a certain range. In addition, this crossover can select stereo subwoofer output or mono subwoofer summed by left and right channels. Two channels have x10 elected range switch and 40HZ high-pass filter (cut the low-frequency). All outputs with phase reverse function.
Technical Parameters
TRS or XLR differential balanced input and output
Selectable stereo or subwoofer summed by the left and right channel
two channels have x10 elected range switch
Two channels have 40Hz high-pass filter (low cut)
All outputs with phase reverse switch
output level on all bands can be independently adjusted
24dB/oct Linkwitz-Riley filters (the professional standard)
Stereo / Mono status indication LED lights indicate the selected operating mode
crossover point between the high and low frequency can be adjusted continuously
Working voltage: 220V
Located in Enping city with convenient traffic, Brun Audio Equipment Factory is a professional manufacturer of audio equipment, power amplifier and mixer. We integrate design, research, production and sales and adopt advanced technology.
Our products widely use for Entertainment, meeting room, performance and so on. With years of production experience, we are able to meet all the needs from our clients. We have won a high reputation both at home and abroad. We sincerely hope to cooperate with customers from all over the world to create a bright future together. If you are interested in any of our products, please contact us for more details.
