| Prod Model: |
CT-IP01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Mid East,Eastern Asia,Western Europe |
| Inner Tank: |
Stainless Steel |
| Outer Tank: |
Galvanized Steel |
| Insulation: |
High Density Polyurethane Foam 50mm |
| Heat Pipe: |
Red Copper |
| Vacuum Tube: |
Three Target Vacuum Tube58*1800mm |
| Bracket: |
Galvanized Steel/Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Pressure: |
Pressurized |
| Structure: |
Compact Type |
| Interior Material: |
Stainless Steel |
| Certification: |
ISO9001 |
Product Description
Characteristics

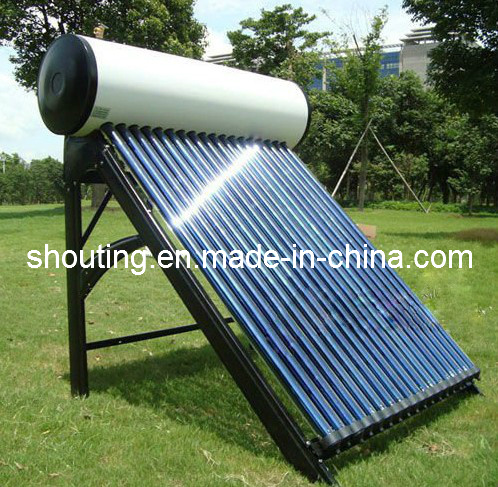

This model works with high pressure, so it can be connected with city water directly. With the heat pipe in the vacuum tube, therefore no water in the tube, each tube can work alone, so the solar colletcor can work even one tube is broken.
1. Highly efficient absorber of high performance with daily average efficiency over 50%
2. Start up quickly, the water is heated rapidly by heat pipe which will transfer the heat energy into the tank
3. Withstand pressure of 6 bar, more comfortable to use
4. Simple structure, easy to assembly and install
5. Can be used all year even in the cold climate area
6. Long service life, can be use over 15 years
Technical Parameters
Inner tank SUS 304-2B/1.2mm
Outer tank Galvanized steel/0.41mm
SUS304-2B/0.41mm
Insulation high density polyurethane foam 50mm
Vacuum tube 47*1500mm/58*1800mm
SS-CU-AIN/ALN or AL-N-AL coating
Bracket Galvanized steel 1.5mm/SUS 201 1.2mm
20/25/38/45/50 degree
Capacity: 100L 150L 180L 200L 240L 250L 300L
Remark
1. Inner tank and outer tank: Diameter(mm)360/460
2. Vent connection(inch): 1/2
3. Electrical heating connection(mm): 47
4. Water connection(mm): 1/2, 3/4
| Type | Area | vacuum tube | Capacity
(L) | Gross
Weight(Kg) | 20GP/40GP/40HQ
Loading Qty(sets) |
| Φ (mm) | Length(mm) | Qty(pcs) |
| CT-IP01-10 |
1.280 |
58 |
1800 |
10 |
100 |
69 |
68/136/165 |
CT-IP01-15 |
1.939 |
58 |
1800 |
15 |
150 |
91 |
48/100/117 |
CT-IP01-18 |
2.335 |
58 |
1800 |
18 |
180 |
102 |
40/88/100 |
CT-IP01-20 |
2.423 |
58 |
1800 |
20 |
200 |
115 |
38/77/90 |
CT-IP01-24 |
2.555 |
58 |
1800 |
24 |
240 |
135 |
34/70/83 |
Shouting-P01-25 |
3.251 |
58 |
1800 |
25 |
250 |
143 |
32/68/80 |
Shouting-P01-30 |
30907 |
58 |
1800 |
30 |
300 |
173 |
26/55/64 |
