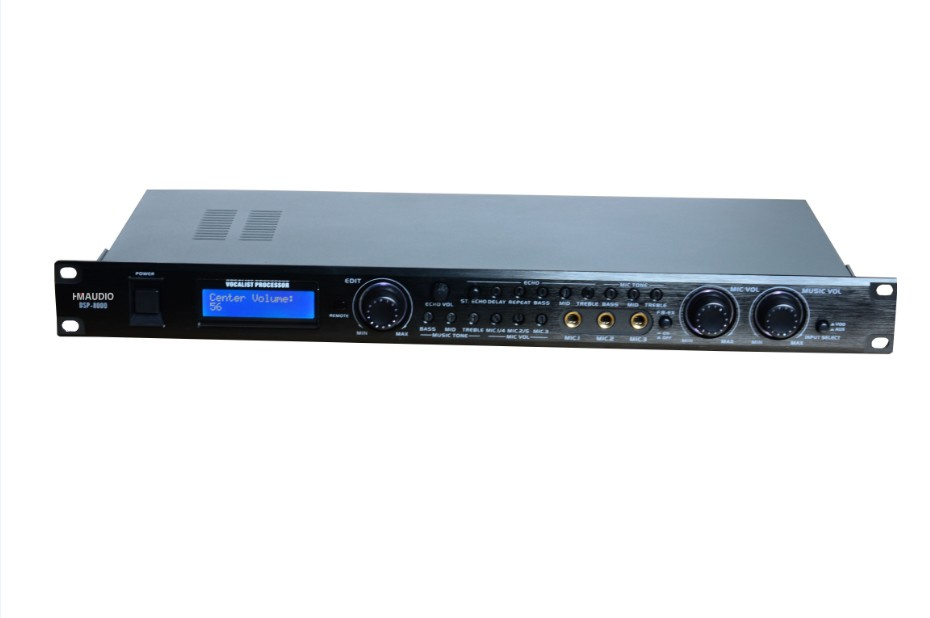

Prod Model: |
DSP-8000 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Certification: |
CCC |
Product Description
Double reverb classic analog effect.
LCD parameters display, easy to parameters adjust.
Reverb effect of agile change.
Design is the overall module. More reliable.
Professional F. B restraint module, easily solved screaming.
Channel output has 7 groups balance & 7 groups unbalance(L/R/L-surround/R-surround/L-SUB/R-SUB/center), can be flexible with the power op-AMP
Center & surround output channel, vocal & music its volume ratio independent adjust.
SUB channel has 45-500Hz phase adjust the volume can be control independently
Music & MIC 3 band parameters EQ adjust, analog effect has 2 parameters EQ adjust.
Technical Parameter
Items Parameter Test
Output channel main output(L/R) √
Center √
SUB √
Surround(L/R) √
dB S/N MIC 75dB 1kHz OdB input
MUSIC 90dB
THD MIC 0.0003 1kHz OdB
MUSIC 0.0001 input
MAX Input Level MIC 300mv 1kHz
MUSIC 6V input
MAX Input Level MIC 10Vrms 1kHz
MUSIC 10Vrms input
Sensitivity MIC 15mV
MUSIC 300mv
(Ω ) MIC 10K unbalance
Input impedance MUSIC 47K unbalance
Channel resolution 85dB
(Ω ) Output impedance 300 balance, 1K unbalance
Feed back inhibition √
Tone adj MIC BASS: 100Hz(± 15dB), MID: 1kHz(± 15dB), TREBLE: 10kHz(± 15dB)
MUSIC BASS: 100Hz(± 15dB), MID: 1kHz(± 15dB), TREBLE: 10kHz(± 15dB)
Weight Net Weight 3.0KG
Total Weight 3.5KG
Dimensions(W*H*D) Unit Dimensions 485*170*50mm
Pack Dimensions 500*253*103mm.
Technical Parameter |
Items |
Parameter |
Test |
Output channel |
main output(L/R) |
√ |
|
center |
√ |
SUB |
√ |
surround(L/R) |
√ |
dB S/N |
MIC |
75dB |
1KHz OdB input |
MUSIC |
90dB |
THD |
MIC |
0.0003 |
1KHz OdB |
MUSIC |
0.0001 |
input |
MAX Input Level |
MIC |
300mv |
1KHz |
MUSIC |
6V |
input |
MAX Input Level |
MIC |
10Vrms |
1KHz |
MUSIC |
10Vrms |
input |
Sensitivity |
MIC |
15mV |
MUSIC |
300mv |
(Ω ) |
MIC |
10K unbalance |
Input impedance |
MUSIC |
47K unbalance |
Channel resolution |
85dB |
(Ω ) Output impedance |
300 balance, 1K unbalance |
Feed back inhibition |
√ |
Tone adj |
MIC |
BASS: 100Hz(± 15dB), MID: 1KHz(± 15dB), TREBLE: 10KHz(± 15dB) |
MUSIC |
BASS: 100Hz(± 15dB), MID: 1KHz(± 15dB), TREBLE: 10KHz(± 15dB) |
Weight |
Net Weight |
3.0KG |
Total Weight |
3.5KG |
Dimensions(W*H*D) |
Unit Dimensions |
485*170*50mm |
Pack Dimensions |
500*253*103mm |
Since 1999 Huimig Electronic Technology Co., Ltd. Has been manufacturing DSP processor professional audio & karaoke system. In digital audio DSP treatment effect has development & production experience & many variety of DSP audio solutions. Our team has committde itself to the development & production with every possible effort toward top quality, customer satisfaction, quick delivery & good service.
HM adopts production management systems & advanced production technologies. We're the best OEM/ODM business partner.
