| Prod Model: |
X-8 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Application: |
Commercial |
| THD: |
<0.03% |
| Certification: |
CCC |

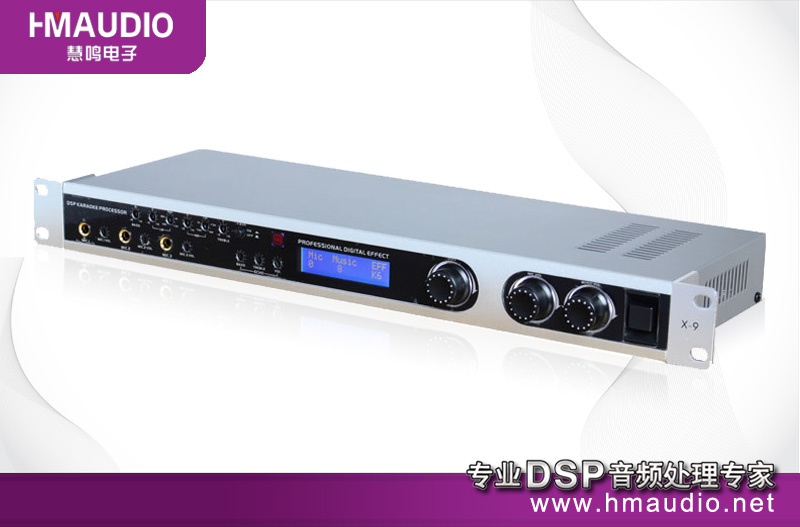

Product Description
Features:
1, This karaoke processor is with LCD screen.
2, The karaoke processor with feedback, it can protect your speaker and amplfiers from burning.
3, With 7 bands music PEQ and 6 bands mic PEQ in this processor.
4, 5.1 output, the processor is with 8 groups of pre-set effects and 8 groups of Users.
|
Technical Parameter |
|
Items |
Parameter |
Test |
|
Output channel |
main output L/R |
√ |
|
|
center |
√ |
|
SUB |
√ |
|
surround L/R |
√ |
|
dB S/N |
MIC |
75dB |
1KHz OdB input |
|
MUSIC |
90dB |
|
THD |
MIC |
0.0003 |
1KHz OdB |
|
MUSIC |
0.0001 |
input |
|
MAX Input Level |
MIC |
300mv |
1KHz |
|
MUSIC |
6V |
input |
|
MAX Input Level |
MIC |
10Vrms |
1KHz |
|
MUSIC |
10Vrms |
input |
|
Sensitivity |
MIC |
15mV |
|
MUSIC |
300mv |
|
(Ω ) |
MIC |
10K unbalance |
|
Input impedance |
MUSIC |
47K unbalance |
|
Channel resolution |
85dB |
|
(Ω ) Output impedance |
300 balance, 1K unbalance |
|
Feed back inhibition |
√ |
|
Tone adj |
MIC |
BASS: 100Hz(± 15dB), LM: 100~1.5k(± 15dB), HM: 700~10k(± 15dB), TREBLE: 10KHz(± 15dB) |
|
MUSIC |
57Hz, 134Hz, 400Hz, 1kHz, 2.2kHz, 6.3kHz, 16kHz(± 15dB) |
|
Weight |
NET Weight |
2.6KG |
|
Total Weight |
3.3KG |
|
Dimensions(W*H*D) |
Unit Dimensions |
485*200*50mm |
|
Pack Dimensions |
500*253*103mm |
Since 1999 Huimig Electronic Technology Co., Ltd. Has been manufacturing DSP processor professional audio & karaoke system. In digital audio DSP treatment effect has development & production experience & many variety of DSP audio solutions. Our team has committde itself to the development & production with every possible effort toward top quality, customer satisfaction, quick delivery & good service.
HM adopts production management systems & advanced production technologies. We're the best OEM/ODM business partner.
