| Prod Model: |
UV-550 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Function: |
Post Amplifier |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Output Number: |
4 |
| Usage: |
AV |
| Used For: |
Professional, Civilian |
| Conductive Mode: |
H |
| Sound Channel: |
2 Channel |
Product Description

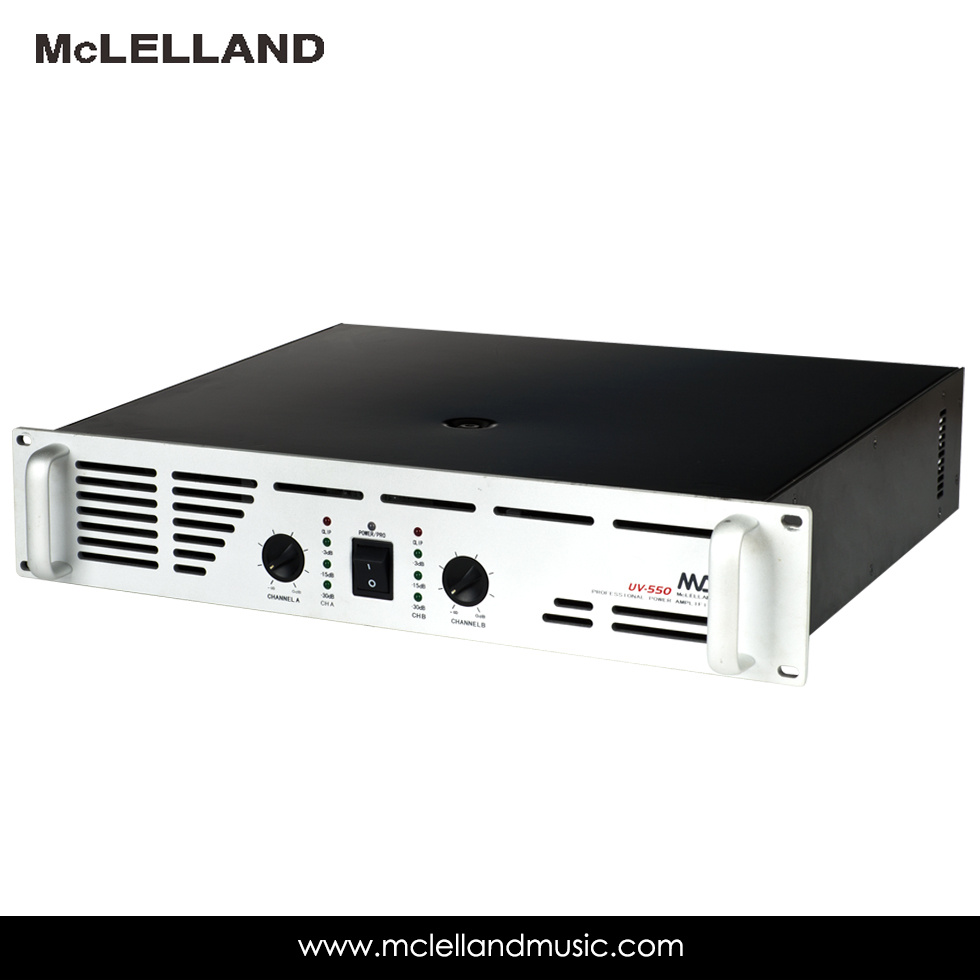

Power Amplifier UV550
Features:
1. Building upon a reputation for sonic quality and rugged reliability with what now McLelland presents the new UV-series of power amplifiers to include the new UV-350, UV-550 are now shipping.
2. Designed to meet the demanding needs of live performance, UV-series amplifiers are offering power outputs of up to 4, 400 watts, which are perfect for extremely high-powered bridged mono operation, or driving up the PA Loudspeakers from each amp channel at a 2 Ohms load (except the model UV-350).
3. Competitively priced, the amps provide reliable and accurate delivery of high power sound to churches, clubs, and other music venues.
Specification:
1. Watts @8ohms Per Channel: 550W x 2
2. Watts @4ohms Per Channel: 900W x 2
Watts @2ohms Per Channel: 1300Wx2
Watts Bridge 8 Ohms: 1800W
Watts Bridge 4 Ohms: 2500W
Freq Response: 20Hz-20KHz
Hum & Noise (S/N): <0.02%@100W into 8 ohms (60Hz & 7KHz)
THD ( 1KHz, 4 ohms ): 0.03%@ 1KHz
Input Sensitivity: 1V / 1.5V
Input Impedance: 22K Ohms Balance / 11K Ohms Unbalance
LED: Power/ Pro, Clip
Power Amp Type: H
Dimensions ( H x W x D): 88 x 483 x 481mm
Weight: 24.5 Kg
|
Model |
UV-350 |
UV-550 |
|
Watts@8ohms Per Channel |
350Wx2 |
550Wx2 |
|
Watts@4ohms Per Channel |
580Wx2 |
900Wx2 |
|
Watts@2ohms Per Channel |
None |
1300Wx2 |
|
Watts Bridge 8 ohms |
1160W |
1800W |
|
Watts Bridge 4 ohms |
None |
2500W |
|
Fred Response |
20Hz-20KHz |
|
Hum & Noise(S/N) |
< 0.02%@100W into 8 Ohms(60Hz&7Khz) |
|
THD(1KHZ,4 Ohms) |
0.03%@1KHz |
|
Input Sensitivity: |
1V / 1.5V |
|
Input Impedance(Ω): |
22K Ohms Balance/11K Ohms Unbalance |
|
LED |
Power / Pro,Clip |
|
Power Amp Type |
AB |
H |
|
Dimensions(H * W * D) |
88x483x481mm |
|
Weight |
21.5KG |
24.5KG |
Mansion Industry Co., Ltd. is a professional audio manufacturer, which includes R&D, design, sales and services department, was established in 1985, at the following address 5F, NO. 6, Szu-Wei Lane, Cheng Road, Hsin-Tien City, Taipei, Taiwan, R. O. C.
Our main products are Equalizers, Crossovers, Power Amplifiers, Video Signal Solution, MIDI Controller, USB/Firewire Audio Interface, Mixers, Digital Effect Processors, Speaker, Microphones and Home Installation Audio products.
We promote our own products all over the world, also we welcome the OEM cooperation. To keep the quality be perfect and satisfy customer's requirements is our company's top target.
At present, we own more than 300 employees. Among them, engineers and technical personnel fifty six people. The high-level employees group and advanced technique help to produce the products with competitive.
Mansion would like to set up a faithful partner relationship with every friend and provide the sincere service. We have been move a new factory about 16000 SQM located within the town of Shenzhen.
