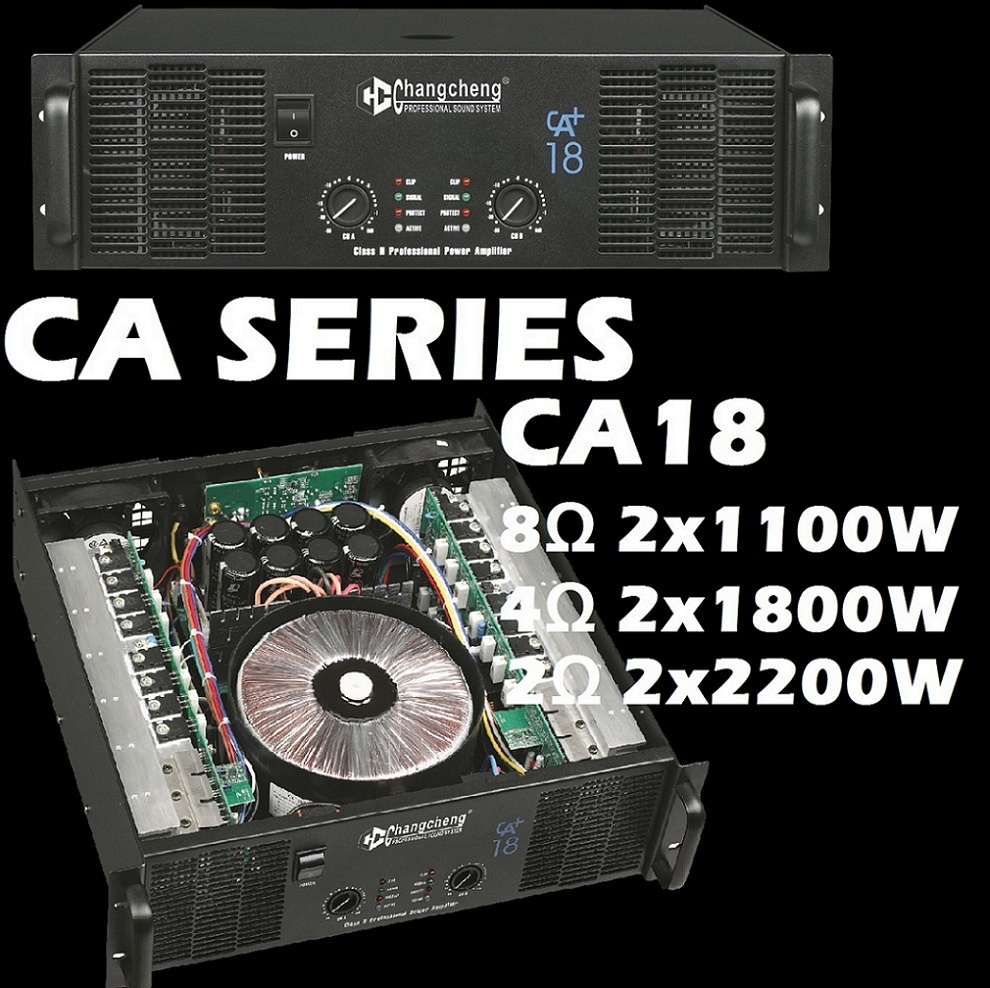

Power Amplifier (CA18 +)
| Price: |
Negotiable |
| Trade Terms: |
Negotiable |
| Min Order: |
1 /Piece |
| Pay Type: |
T/T,Western Union |
| Prod Model: |
CA18 + |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Voltage.: |
110V-240V 50Hz or 60Hz |
| Transistors: |
Toshiba Mosfet |
| Color: |
Custom |
| Logo: |
Your Logo, Changcheng |
| Channels: |
2 |
| Class H: |
3 Step |
Product Description
CA 18 Professional Power Amplifier
1100W/per channel at 8ohms
1800W/per channel at 4ohms
2200W/per channel at 2ohms
Tosiba Mosfet Transistors used
2SA1943
2SC5200
Features
- CA Series provide extensive protection features such as Overheat short currents, DC protection, zero current, clip limiter, soft start
- Flow-through ventilation from front to back
- Offered in 150W-1300W power area
- High power toroidal transformer
- Internal heat sinks with forced air cooling for rapid, heat dissipation
- Dual fans for proper cooling to maintain performance and proper working levels
-Suitable to various Input / Output Connectors. Has 3 Ways Sensitivity Switches for Stereo, Bridged Mono and Parallel Mono. Also connects swiftly to speakers VIA Speakon.
- Can endure 8ohm, 4ohm and 2ohm loads
- Highly reliable and stable
-Noise Free product.
-Less Distortion for better quality sound.
-Excellent & Natural Timbre.
-Crossover Selector in the 3U CA Series to use with one or more subwoofer speakers.
The CA Series Amplifier offered by us are designed and made by expert engineers using superior quality material.
Available in different power variations, these CA Series Amplifiers are high on demand across the globe.
|
CA SERIES PROFESSIONAL POWER AMPLIFIER |
|
Model |
CA2+ |
CA4+ |
CA6+ |
CA9+ |
CA12+ |
CA18+ |
CA20+ |
|
Stereo Power8Ω |
150W |
250W |
400W |
520W |
800W |
1100W |
1300W |
|
Stereo Power4Ω |
225W |
275W |
600W |
780W |
1200W |
1800W |
1950W |
|
Stereo Power2Ω |
270W |
500W |
800W |
1040W |
1600W |
2200W |
2600W |
|
BTL 8Ω |
450W |
750W |
1200W |
1560W |
2400W |
3600W |
3900W |
|
BTL 4Ω |
540W |
1000W |
1600W |
2080W |
3200W |
4400 |
5200W |
|
Frequency Response |
20Hz - 20KHz +0/-0.3dB |
|
THD+N |
< 0.03%@8Ω 1KHz |
|
S/N Ratio |
> 90dB |
> 90dB |
> 95dB |
> 95dB |
> 93dB |
> 93dB |
> 93dB |
|
Slew Ratio |
20V/ u S |
20V/ u S |
30V/ u S |
30V/ u S |
40V/ u S |
44V/ u S |
44V/ u S |
|
Damping Factor |
> 400 |
> 400 |
> 400 |
> 400 |
> 300 |
> 300 |
> 300 |
|
Crosstalk |
> 70dB@8Ω 1KHz |
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
|
Input Sensitivity |
0.775V/1.0V/1.4V |
|
Protection Features |
Overheat short circuits, DC, limit and--softstart, Output |
|
relay-Zero Current Switch, Intellctual Clip limiter |
|
Rack Size |
2U |
2U |
2U |
2U |
3U |
3U |
3U |
|
Gross Weight |
21.25KG |
23.75KG |
25KG |
27KG |
42.5KG |
43KG |
41KG |
|
Packing Dimensions |
590× 570× 150MM |
650× 585× 200MM |
