CA18 Ca Serie Amplifier
| Price: |
Negotiable |
| Trade Terms: |
Negotiable |
| Min Order: |
1 /Piece |
| Pay Type: |
T/T,Western Union |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Attribute (E. G.: Size): |
Value (E. G.: 12 Inches) |
| Transistors: |
Toshiba Mosfet |
| Color: |
Custom |
| Logo: |
Your Logo, Changcheng |
| Channels: |
2 |
| 3 Step: |
Class H |
Product Description

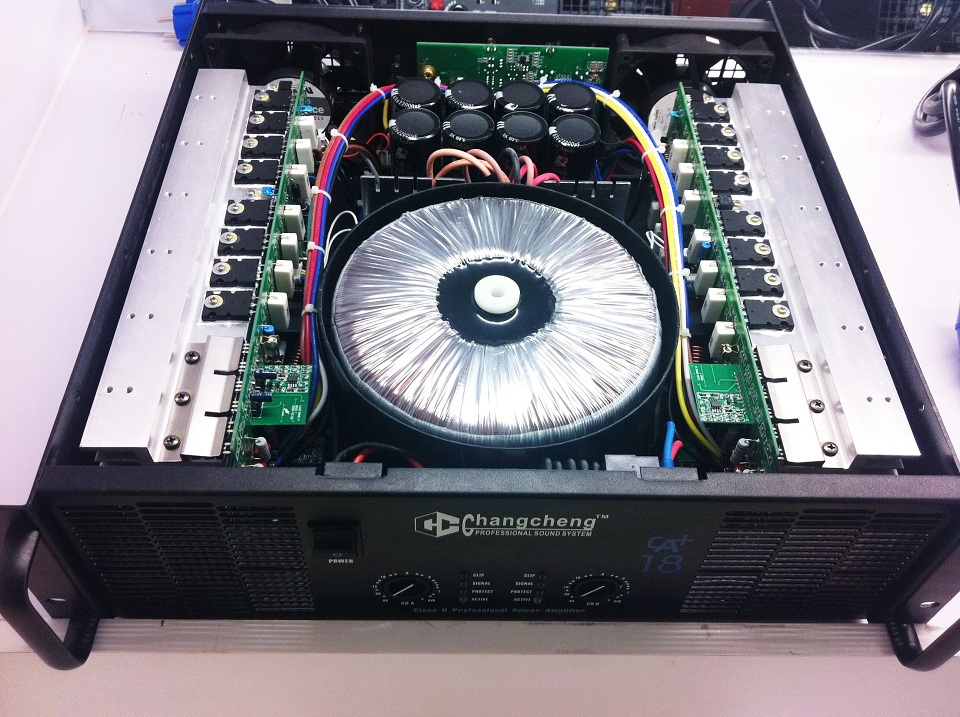

CA 18 Professional Power Amplifier
1100W/per channel at 8ohms
1800W/per channel at 4ohms
2200W/per channel at 2ohms
Tosiba Mosfet Transistors used
2SA1943
2SC5200
Features
- CA Series provide extensive protection features such as Overheat short currents, DC protection, zero current, clip limiter, soft start
- Flow-through ventilation from front to back
- Offered in 150W-1300W power area
- High power toroidal transformer
- Internal heat sinks with forced air cooling for rapid, heat dissipation
- Dual fans for proper cooling to maintain performance and proper working levels
-Suitable to various Input / Output Connectors. Has 3 Ways Sensitivity Switches for Stereo, Bridged Mono and Parallel Mono. Also connects swiftly to speakers VIA Speakon.
- Can endure 8ohm, 4ohm and 2ohm loads
- Highly reliable and stable
-Noise Free product.
-Less Distortion for better quality sound.
-Excellent & Natural Timbre.
-Crossover Selector in the 3U CA Series to use with one or more subwoofer speakers.
The CA Series Amplifier offered by us are designed and made by expert engineers using superior quality material.
Available in different power variations, these CA Series Amplifiers are high on demand across the globe.
|
CA SERIES PROFESSIONAL POWER AMPLIFIER |
|
Model |
CA2+ |
CA4+ |
CA6+ |
CA9+ |
CA12+ |
CA18+ |
CA20+ |
|
Stereo Power8Ω |
150W |
250W |
400W |
520W |
800W |
1100W |
1300W |
|
Stereo Power4Ω |
225W |
275W |
600W |
780W |
1200W |
1800W |
1950W |
|
Stereo Power2Ω |
270W |
500W |
800W |
1040W |
1600W |
2200W |
2600W |
|
BTL 8Ω |
450W |
750W |
1200W |
1560W |
2400W |
3600W |
3900W |
|
BTL 4Ω |
540W |
1000W |
1600W |
2080W |
3200W |
4400 |
5200W |
|
Frequency Response |
20Hz - 20KHz +0/-0.3dB |
|
THD+N |
< 0.03%@8Ω 1KHz |
|
S/N Ratio |
> 90dB |
> 90dB |
> 95dB |
> 95dB |
> 93dB |
> 93dB |
> 93dB |
|
Slew Ratio |
20V/ u S |
20V/ u S |
30V/ u S |
30V/ u S |
40V/ u S |
44V/ u S |
44V/ u S |
|
Damping Factor |
> 400 |
> 400 |
> 400 |
> 400 |
> 300 |
> 300 |
> 300 |
|
Crosstalk |
> 70dB@8Ω 1KHz |
|
Input Impedance |
20KΩ (Balance)/10KΩ (Unbalance) |
|
Input Sensitivity |
0.775V/1.0V/1.4V |
|
Protection Features |
Overheat short circuits, DC, limit and--softstart, Output |
|
relay-Zero Current Switch, Intellctual Clip limiter |
|
Rack Size |
2U |
2U |
2U |
2U |
3U |
3U |
3U |
|
Gross Weight |
21.25KG |
23.75KG |
25KG |
27KG |
42.5KG |
43KG |
41KG |
|
Packing Dimensions |
590× 570× 150MM |
650× 585× 200MM |
Lingte Electronic Technology Co. Ltd. " is a professional manufacturer of PRO-audio products in Enping City, Guangdong China. We are a factory that specializes in research, developing, manufacturing, sales and technical and offer top quality products and service. We have more than 70 model numbers for your selection to fit your needs.
Application: Our products are suitable for various of PRO audio, entertainment and commercial uses...Such as live event performance, touring concert church, , Band, stadium, gymnasium, theaters, Cinema, concert halls, auditorium, hotel, School, discos, club, wedding, etc.
Main products: Professional power amplifiers, Signal processors, Equalizer, Compressor and crossover
Strong R&D Team: Our engineers and technicians have extensive experience in the PRO audio industry. Continuous researching and developing ensure that our products in high standard to give you the competitive advantage to your customers and market.
Company & Factory: With emphasis on quality and innovation our company has modern assembly line, strict quality control and hard working staff. We are a PRO audio factory that will give you top end products. We put a emphasis on purchasing the high grade raw materials to give you a high performance product. With fully trained workers we ensure that you will only get the finest quality and performance product that comes off of our assembly lines.
OEM / ODM: OEM is our main business line, we have OEM for over 100 brands all over the world. ODM is also one of our R&D business item too, we do the products according to your design and requirements.
High quality product and a cost effective price. Our products have received high appraisal from our partners in building their brand name. Made at the highest quality products, strong technical support, advanced production equipments, perfect test system, as well as our heart to heart service and competitive prices, more and more clients choose Lingte as our faithful partners import our PRO audio products for their market.
We welcome with open arms visits to our factory or visit us at our next trade show. Contact us for a quote and negotiation. We look forward to discussing a potential long term partnership with you.
