| Prod Model: |

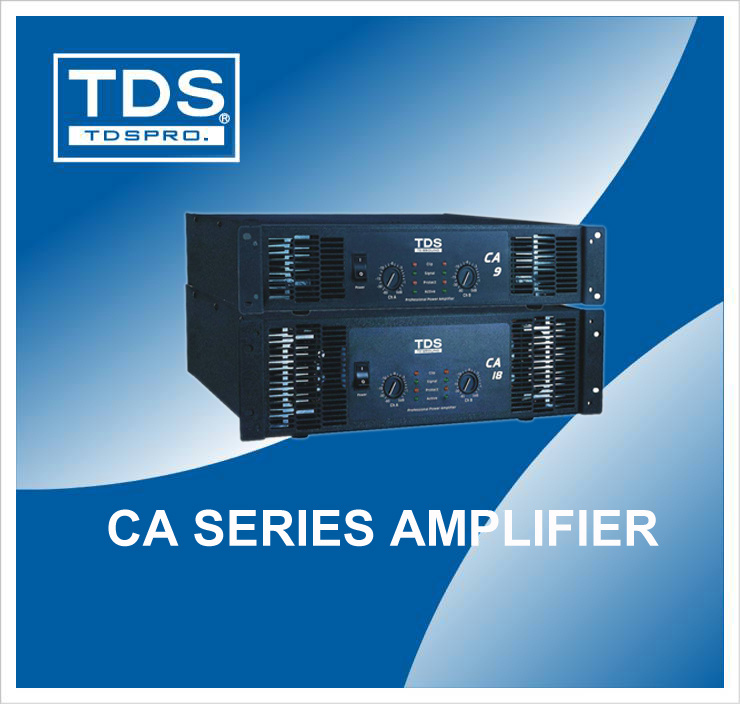

CA SERIES AMPLIFIER |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Tdspro. |
| Product Type: |
Power Amplifier |
| Place Of Orignal: |
Guangzhou China |
| Product Warranty: |
4 Years |
| Function: |
Amplifier Combined |
| Tube Type: |
Transistor Amplifier |
| Voltage: |
AC 220V |
| Element Number: |
Push-Pull Amplifier |
| Used For: |
Professional |
| Conductive Mode: |
A |
| Usage: |
KTV System |
| Output Number: |
2 |
| Sound Channel: |
2CH |
Product Description
POWER AMPLIFIER
Features.
1. CA series amplifier adopt Toshiba transistor.
2. High quality transforma inside.
3. Long time continuous working ability.
4.4 years products warranty.
|
POWER AMPLIFIER |
|
|
|
SPECIFICATIONS |
CA6 |
CA9 |
CA12 |
CA18 |
|
8ohm Stereo Power(RMS) |
400W |
600W |
700W |
1000W |
|
4ohm Stereo Power(RMS) |
600W |
900W |
1200W |
1800W |
|
2ohm Stereo Power(RMS) |
750W |
1000W |
1400W |
2500W |
|
8ohm Bridge Mono Power |
1000W |
1600W |
2200W |
3400W |
|
Max RMS Output Voltage (each Channel) |
73V |
82V |
90V |
99V |
|
Max Peak Output Voltage |
103V |
116V |
126V |
140V |
|
Frequency Response(+0/-0.3dB, 1W/8ohm) |
20Hz - 20KHz -3dB@135Hz |
|
THD+N (rated power 4ohm/ 1KHz) |
<0.01% |
|
Damping Factor (10-400Hz @ 8ohm) |
400:1 |
700:1 |
800:1 |
800:1 |
|
Input CMRR (1KHz) |
> -60dB |
|
Stand Input Sensitivity (rated power at 8ohm) |
0.775V |
|
Stand Voltage Gain (rated power @ 8ohm) |
X68 |
X97.5 |
X68 |
X115 |
|
Input Impedance (balanced / unbalanced) |
>20K ohm / >10K ohm |
|
Class |
H |
|
Filter Storage |
68.000 UF |
80.000UF |
140.000Uf |
144.000UF |
|
Power Supply |
200V -- 240V, 50-60Hz |
|
Dimensions (H x W x D) |
89 x 483 x 475mm |
89 x 483 x 475mm |
133 x 483 x 475mm |
133 x 483 x 475mm |
|
Gross Weight |
20kg |
22kg |
25kg |
35kg |
