| Prod Model: |
1380mm |
| Markets: |
Southeast Asia,Africa,Oceania,Mid East |
| Size: |
1380*1380*1400mm |
| Blades No: |
3 PCS |
| Blades Thickness: |
2mm |
| Blade Style: |
Hot Galvanized Sheet |
| Certification: |
CCC |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Blade Material: |
Hot Galvanized Sheet Frame |
Product Description

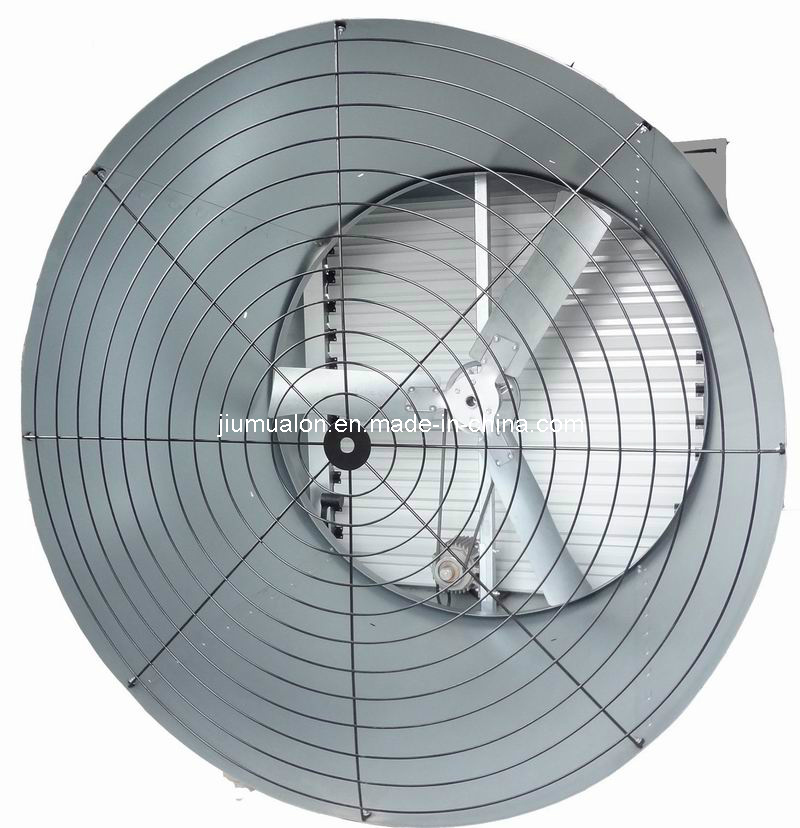

Poultry New Style Cone Fan Featured:
High-quality galvanized steel sheets frame, zinkthickness 275G/M2
Galvanized Fan 3 Blades
More air volume without distortion
Automatic belt tensioned
Water proof dust proof
Save more energy
Attributes:
Work without distortion
Attractive and durable
High intensity
Low noise
Long service life
Applications: -
Poultry
Agriculture
Workshops
Greenhouse
Industries
|
CONE FAN TECHNICAL DATA(SHM-3) |
|
Fan size |
1380mm × 1380mm × 1400mm |
|
Frame |
Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm, zinkthickness 275g per square |
|
Motor |
Simens motor, Other motor accordingly, CE certificate |
|
Motor technical data |
1100w 380 V 50 Hz three phase |
|
Motor RPM |
1440r/min |
|
Noise |
65db |
|
Blade diameter |
φ 1270 mm |
|
Blade No |
3 |
|
Blade material |
Mirror face stainless steel, avoid dust accumulation |
|
Blade RPM |
460r/min |
|
Blade instruction |
Weight difference between blades is less than 0.5k, blades will go through
balance test after assembled which can assure steady running and even airflow. |
|
Shutter |
Centrifugal system opening, spring close system, shutter can be opened at 90 degree. |
|
Shutter No. |
10 |
|
Thickness of shutter |
2 mm , others 1.5mm or 0.8 mm |
|
belt |
Mistuboshi belt |
|
Housing |
galvanized |
|
Airflow |
52000m3/h |
Qingdao Super Husbandry Machinery Co., Ltd is a famous enterprise engages in the study, designing and manufacturing of the husbandry ventilation equipments as well as the livestock and poultry ventilation. It is a hi-tech enterprise that enjoys the fast development speed, accompanied by the most effective technologies and top-ranking sales quantum.
Meanwhile, it has the ability of development, engineer designing, installing and servicing at the same time.
We have been supplying our products in China and overseas markets like the Asia, Middle East, Arab Countries, South America, etc. The excellent performance and services get a good reputation from the clients, we keep hard working to provide the better and better products and service for more and more customers
