| Prod Model: |
SHM1000 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No.: |
Qoma-Hh/1380 and Qoma-Hh/1000 |
| Power Supply: |
Electric |
| Application: |
Cow House,Poultry ,Agriculture,Workshops,Greenhous |
| Power: |
>300W |
| Installation: |
Ceiling |
| Type: |
Air Cooling Fan |
| Cooling Method: |
Direct Cooling |
| Export Markets: |
Global |
| Material: |
Stainless Steel |
| Usage: |
for Air Conditioner |
| Flow Direction: |
Cross Flow |
| Pressure: |
Medium Pressure |
| Certification: |
CE |

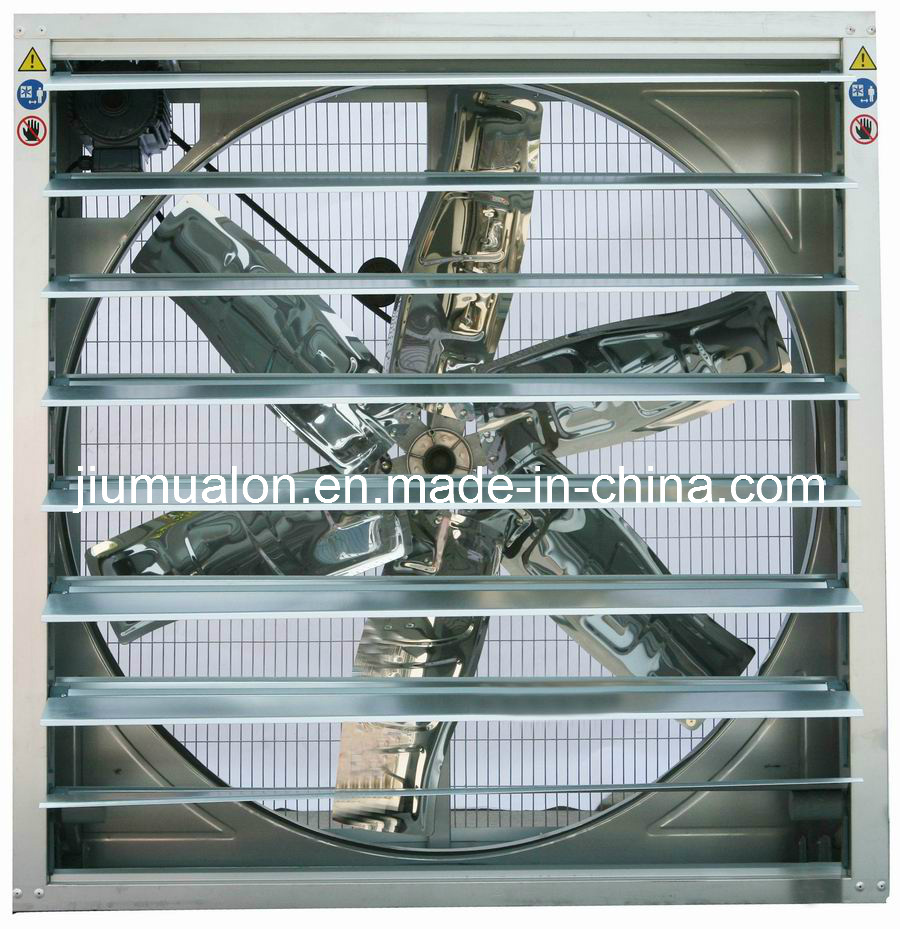

Product Description
Featured with:
High-quality galvanized steel sheets frame, Zinc thickness 275G/M2
Mirror face stainless steel Fan Blades
Big air volume without distortion
Automatic belt tensioned
Water proof dust proof
Energy-saving motor
Attributes:
Work without distortion
Attractive and durable
High intensity
Low noise
Long service life
Applications: -
Poultry
Agriculture
Workshops
Greenhouse
Industries
| 50" fan technical data |
| Fan size | 1380mm× 1380mm× 450mm |
| Frame | Hot galvanized sheet, high anti-corrosive durability, sheet thickness1.0mm, zinc thickness 275g/m2 |
| Motor | Siemens motor, Other motor accordingly, CE certificate |
| Motor technical data | 1.1 Kw 380 V 50 Hz three phase |
| Motor RPM | 1440r/min |
| Noise | 65db |
| Blade diameter | φ 1270 mm |
| Blade No | 6 |
| Blade material | Mirror face stainless steel, avoid dust accumulation |
| Blade RPM | 460r/min |
| Blade instruction | Weight difference between blades is less than 0.5k, blades will go through
balance test after assembled which can assure steady running and even airflow. |
| Shutter | Centrifugal system opening, spring close system, shutter can be opened at 90 degree. |
| Shutter No. | 10 |
| Thickness of shutter | 1.5 mm , others 0.8 mm |
| belt | Mistuboshi belt |
| Housing | galvanized |
| Airflow | 43170m3/h |
