| Prod Model: |
JL-1380/1220/1000/900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
for Air Conditioner |
| Cooling Method: |
Direct Cooling |
| Blade Thickness: |
1.2mm |
| Motor Brand: |
Laoyite |
| Belt Brand: |
Sanlux |
| Blade Material: |
Stainless Steel |
| Electric Current Type: |
AC |
| Mounting: |
Wall Fan |
| Certification: |
CE |
| Material: |
Metal, Galvanized Steel or Stainless Steel |

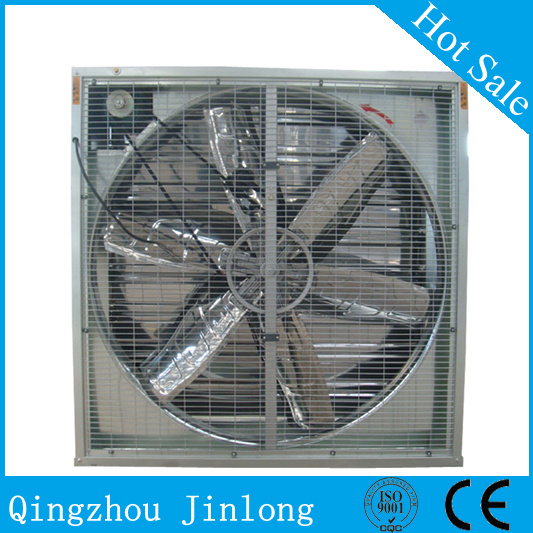

Product Description
Products Features:
1) Shutter: With a centrifugal system which can ensure the shutter open and close automatically, and makes it dustproof, waterproof.
2) Motor: The high efficient and energy-saving motor with protection grades: IP55, insulation class: F
3) Belt: Automatic tensioner to prevent the belt loosing and dropping off.
4) Stainless steel blade, no disortion, no broken
| Model | Diameter Blades
(mm) | Air Volume (m 3 /h) | Power (kw) | Outer Size(mm) (H*W*T) | Voltage |
| JLF-620(24" ) | 500 | 5700 | 0.25 | 620*620*400 | 380V |
| JLF-780(30" ) | 710 | 23000 | 0.75 | 780*780*420 | 380V |
| JLF-830(32" ) | 720 | 20000 | 0.55 | 830*830*400 | 380V |
| JLF-900(35" ) | 750 | 22000 | 0.37 | 900*900*400 | 380V |
| JLF-1000(39" ) | 900 | 25000 | 0.75 | 1000*1000*400 | 380V |
| JLF-1100(43" ) | 1000 | 32500 | 0.75 | 1100*1100*400 | 380V |
| JLF-1220(48" ) | 1100 | 38000 | 0.75 | 1220*1220*400 | 380V |
| JLF-1380(54" ) | 1250 | 44000 | 1.1 | 1380*1380*400 | 380V |
| JLF-1530(60" ) | 1400 | 55800 | 1.5 | 1530*1530*400 | 380V
|
Welcome to contact me for more exhaust fan's details
Contact person: Darcy
Mob: 0086-15966082361
Tel: 0086-3529853
Fax: 0086-3529387
