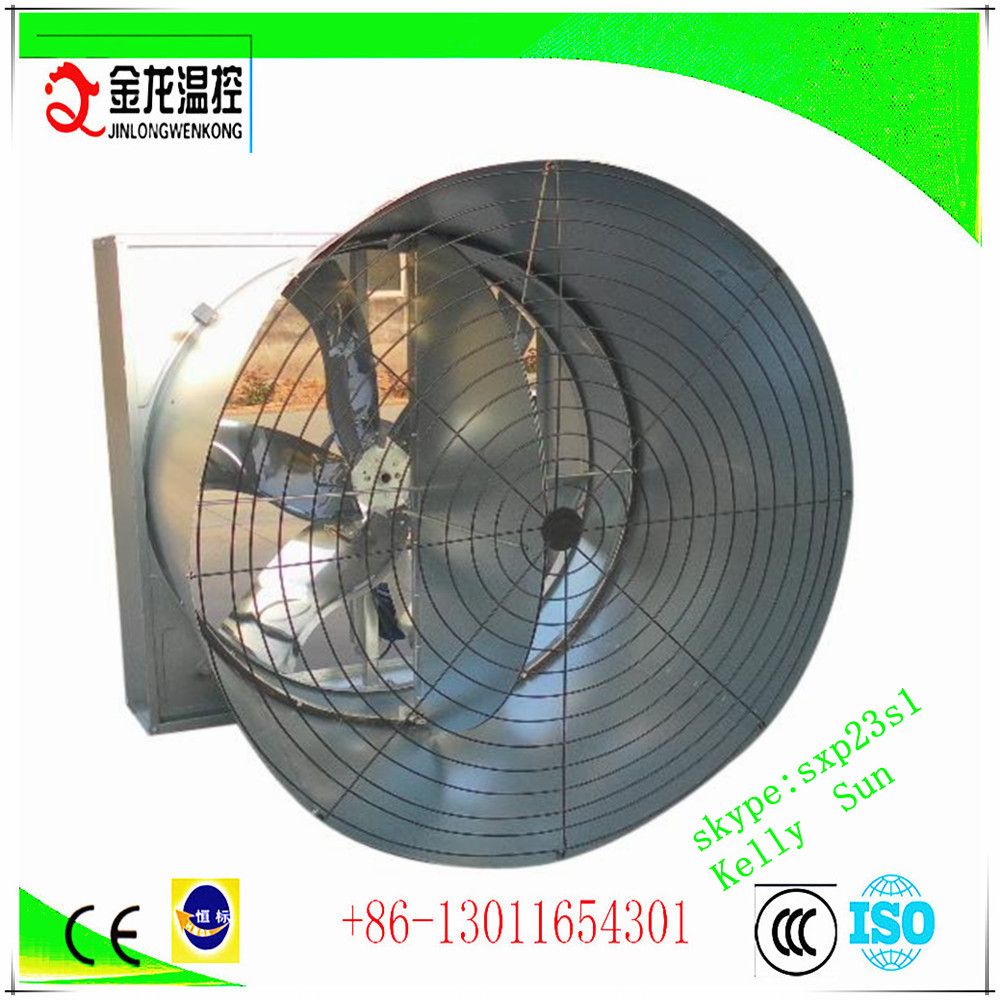

Poultry Fan
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T |
Product Description
Technical Details :| Model | Diameter
blades
(mm) | Blades
speed
(r/min) | Motor
speed
(r/min) | Air
flow
( m³ /h) | Noise decibel |
power
(w) | Rated
voltage(v) | Height
(mm) | Width
(mm) | Thickness
(mm) |
| JLF(C)-620 | 500 | 1400 | 1400 | 5700 | ≤70 | 250 | 380 | 620 | 620 | 400 |
| JLF(C)-780 | 710 | 960 | 960 | 23000 | ≤70 | 750 | 380 | 780 | 780 | 400 |
| JLF(C)-830 | 720 | 660 | 1400 | 20000 | ≤60 | 550 | 380 | 830 | 830 | 400 |
| JLF(C)-900 | 750 | 630 | 1400 | 22000 | ≤65 | 370 | 380 | 900 | 900 | 400 |
| JLF(C)-1000 | 900 | 610 | 1400 | 30000 | ≤70 | 750 | 380 | 1000 | 1000 | 400 |
| JLF(C)-1100 | 1000 | 600 | 1400 | 32500 | ≤70 | 750 | 380 | 1100 | 1100 | 400 |
| JLF(C)-1220 | 1100 | 460 | 1400 | 38000 | ≤70 | 750 | 380 | 1220 | 1220 | 400 |
| JLF(C)-1380 | 1250 | 435 | 1400 | 40000 | ≤70 | 1100 | 380 | 1380 | 1380 | 400 |
| JLF(C)-1530 | 1400 | 325 | 1400 | 55800 | ≤70 | 1500 | 380 | 1530 | 1530 | 400 |
: The characteristics of Cooling Fan for Farm and factory:1. Certificate, CE, ISO9001:2008, ISO14001:2004.2. Frame, all the frames are made of hot galvanized board, thickness 1.0mm,galvanizing layer 280g/m².3. Blade,6 pieces of blades and all the blades are made by 430 stainless steel ,thickness 1.2mm,mirror face.4. Impeller, casting aluminum alloy impeller ,diameter 300mm. 5. Bearing of impeller, permanently sealed bearing, size 633313.6. Venture, internal diameter, 1290mm, galvanized board, thickness 1.0mm.7. Blade tip clearance, 25mm.8. Inlet wind protecting net, spraying paint steel wire, thickness 2.8mm.9. Electrical motor, national-grade aluminum alloy frame motor, 380V, 0.25KW, 50Hz, 3phase, 1380r/m, IP55, class F, efficiency 90%, top/foot mounted, certification, CCC&CE.(motor can be supplied as demand)10. Motor bearing , NSK or SKF. 11. V-belt, A type belt, imported from Korea or Japan12. V-belt pulley,motor side,diameter 95 mm,shaft hole size 14mm,material,casting aluminum alloy.13. Belt tensioned, bearing size,6201.14. Shutters,8 pieces of shutters, galvanized board,0.5mm thickness. Galvanizing layer ,280kg/m2.
Qingzhou JINLONG Temperature-controlled Equipment Co., Ltd is a professional livestock machinery manufacturer in Shandong province, China, which is a high technology enterprise composed with design, production, sale and after-sales service.
Our company has advanced machining equipment and strong technical force. We introduced advanced quality control equipment, static and dynamic balancing machine and hydraulic repressive machinery. The main products include ventilation fans, air circulation fan, roof fans, wall fans, cooling system, evaporative cooling pad, air cooler, automatic feeding and drinking system, automatic oil-burning and coal-burning hot blast stove, totally more than 30 kinds, which have absorbed the quintessences of similar products home and abroad, made of high quality materials by advanced technology.
The products are all energy saving, smooth operation, low noise, stable performance, solid and durable with elegant appearance, and widely used in the fields of agriculture, flowers and plants, livestock, textile, mining, chemical, pharmaceutical and timber. Our company always insists on the tenet of "survive with quality, develop with credibility". We provide first-rate products and service for customers with the enterprise spirit as "keep faithfulness, and race to the top ". Our products have been exported to Southeast Asia, Middle East, West Europe, Canada and Australia and get favorable comments.
