| Prod Model: |
CPOS800 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4 Inch |
| Memory: |
1GB Lpddr RAM, 4/8GB Nand Flash ROM |
| Dimensions: |
180mm*75mm*33/46mm |
| Print: |
Built-in Thermal Printer, 58mm, Speed:60mm/S |
| Type: |
Barcoder |
| Touch Screen: |
Touch Screen |
| Printer: |
Thermal |
| Certification: |
CCC |
| Card Type: |
Contact Contactless IC Card |
| CPU: |
Qualcomm 8909, 1.2GHz, Quad Core |
| System: |
Android 5.1.1 |
Product Description

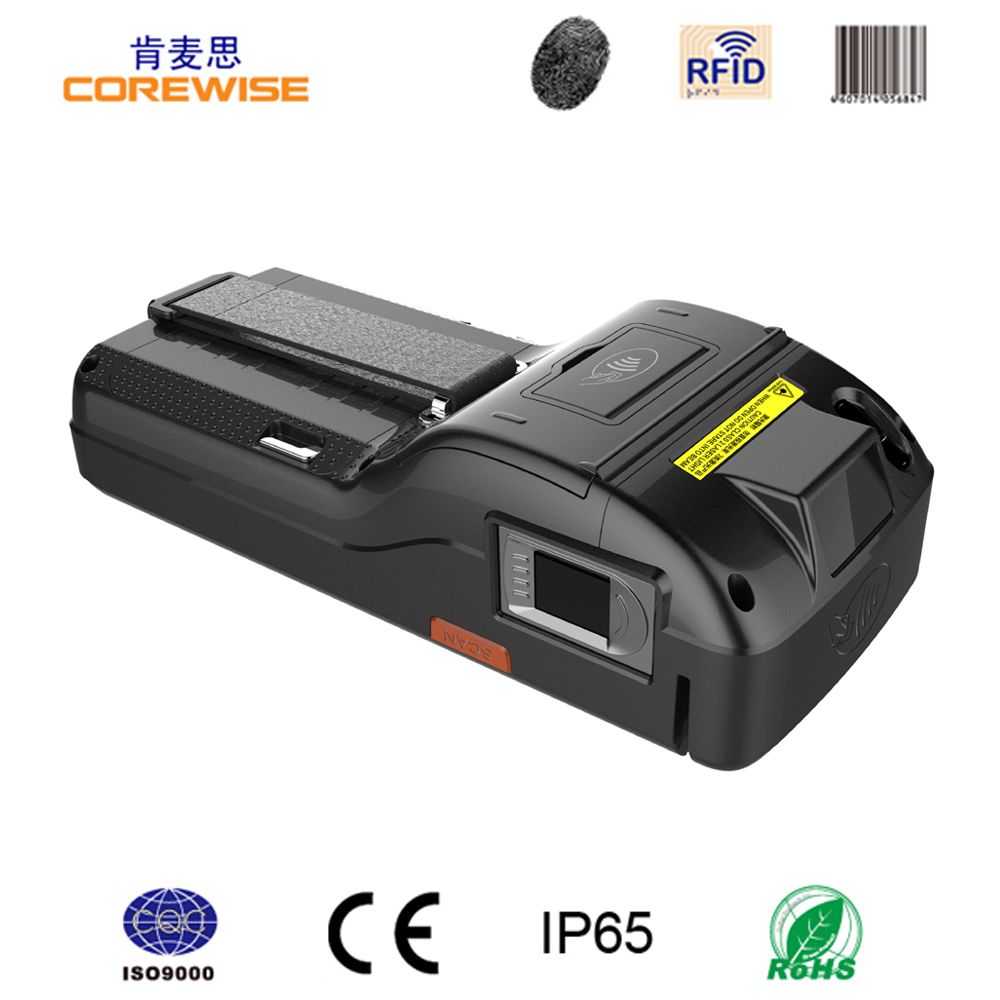

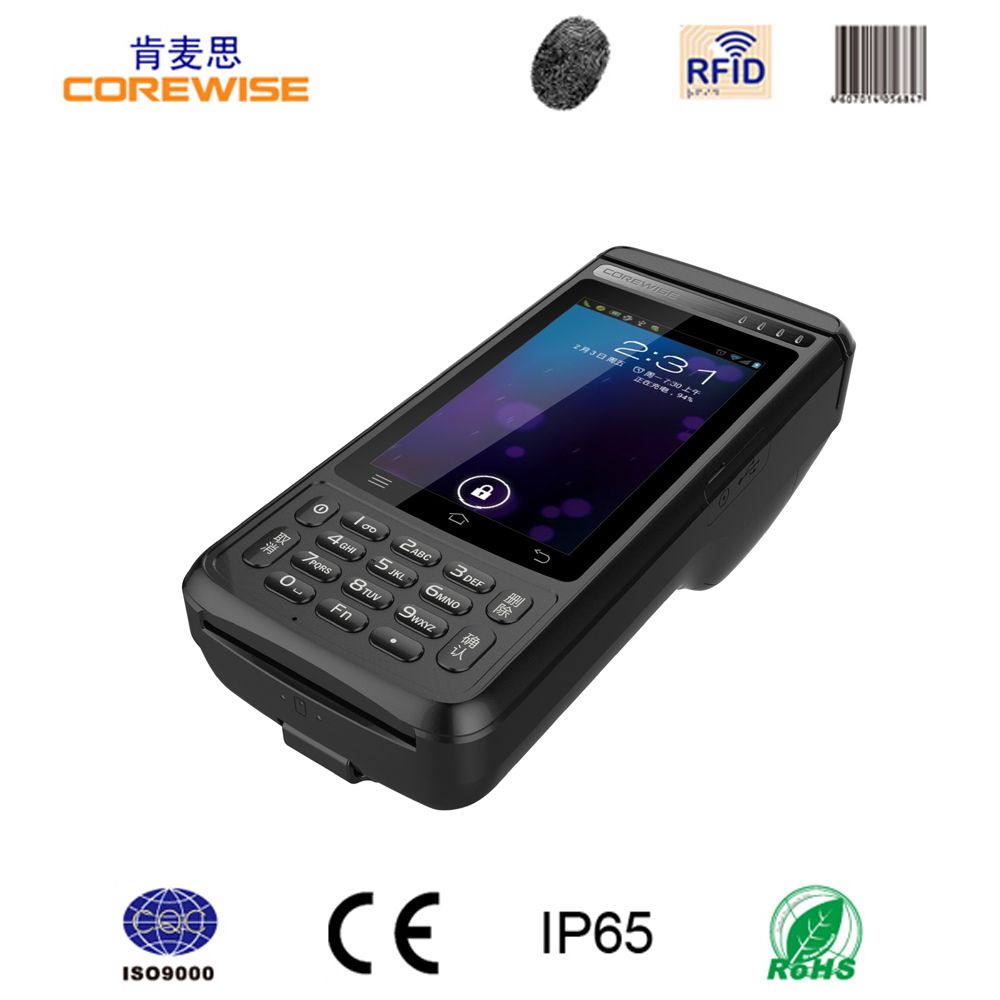

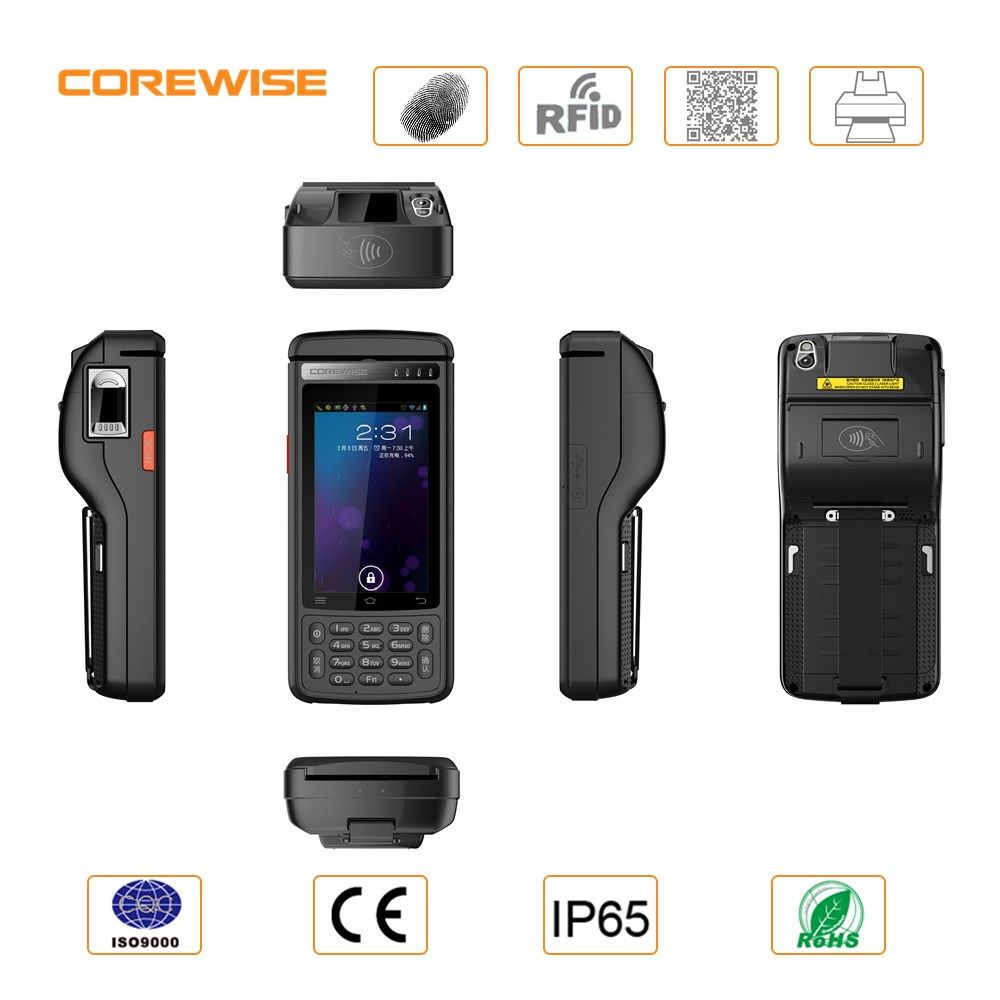

POS Terminal Touch Screen
Pin: android portable usb fingerprint reader price, pos terminal wireless fingerprint reader, gold supplier 2d barcode scanner fingerprint scanner module, HF RFID card reader writer
CPOS800 Description
Physical Parameter |
| Design | Bar phone | Keys | Seventeen |
| Dimensions (L*W*D) | 180mm*75mm*33/46mm | Weight | 420g |
| Function Parameter |
| Operating System | Android 5.1.1 | Display | 4 inch TFT LCD, Resolution 800*480 |
| CPU | Qualcomm 8909, 1.2Ghz, Quad Core | Panel | Capacitive touch screen |
| Memory and Extension | T-Flash/Micro SD Card, up to 32GB | Camera | Rear 5.0M Pixels, Auto Focus with Flash |
| GPS | GPS,GLONASS supported,10m | Networks(Upgrade to 4G LTE) | GSM: 850/900/1800/1900WCDMA:B1/B2/B5
CDMA: BC0
TDS-CDMA:B34/B39
TDD-LTE:B38/B39/B40/B41
FDD-LTE:B1/B3 |
| Bluetooth | BT4.0 LTE |
| WIFI | IEEE 802.11b/g/n |
| Memory | 1GB RAM,8GB ROM/1GB RAM ,4GB ROM |
| Optional Functions |
| Printer | 58mm,thermal printer,speed 40mm/s | Barcode Scanner | 1D Linear Scanner :
UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes |
| MSR | SUPPORTED |
| Contactless IC Card | ISO/IEC 14443 Type A/B,ISO15693 |
| Contact IC Card | Compatible with ISO 7816-3 and EMV4.2
payment standard | 2D Imager Scanner:
PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet, US Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
| PSAM Card | 1 Psam card slots |
| ID Card | Reading distance 0~5cm |
| Fingerprint Sensor | Capacitive Sensor, 508 DPI |
| Other Parameter |
| Battery Pack | 7.4V, 2300mAh ,MTBF no less than 10000 hours | Headphone | Supported, 3.5mm |
| Serial | UART or RS232 | Speaker | supported |
| USB | Mini USB OTG,USB 2.0 HS compatible | Voice Call | Supported |
| AC/DC Adapter | DC 9V/1.5 | Vibration | Supported |
| Ruggedness | IP54 , Waterproof , Dustproof |
|
|
| User Environment |
| Operating Temp | -10ºC ~ 50ºC | Humidity | 5% ~ 95% (non condensing) |
| Storage Temp | -20ºC ~ 70ºC | Roller Drop Test | 500 times (1000 hits) |
Company Information
Nanjing Corewise Smart Technology Inc. (hereinafter referred to as "Corewise") was founded in 2005 in Nanjing, Jiangsu Province, China.
Nanjing Corewise Smart Technology Inc. is a dedicated hardware manufacturer, a leading vendor of
handheld terminals, a high-tech enterprise specialized in R&D of portable devices integrated with 3G
functions, including rugged tablet PCs, MID, UMPC, netbooks, biometric fingerprint sensors, HF/UHF
RFID writers/readers (13.56Mhz for proximity or 840-960Mhz for long distance), barcode (QR code)
scanners, built-in thermal printers, and detachable POS machines (MSR, contact/contactless IC card
supported). These "all-in-one" innovative facilities with mobility can be utilized in a wide range of
scenarios, e.g. NFC solutions, identity verification, inventory management, access control, timing &
attendance, etc.
Free downloadable drivers and SDKs for Google Android OS in conjunction with tailor made software and
our customized powerful equipments will enable our clients to
present most controllable applications to bring human, financial, material resources as well as vehicles under absolute control.
Being at the very forefront of technical development Corewise provides quality deliverables made of the highest industrial grade materials, with shortest lead time and sound after-sale services. Corewise help
clients to deliver tangible and supremely effective solutions with sustainability and optimum effects to explore local market and expand geographic reach with product availability and backed guarantee.
Corewise is now headquartered in Nanjing (R&D) with product lines (PLs) in Shenzhen focusing on
procurement & producing. Our annual turnover is around 10 million U.S. Dollars.
Packaging & Shipping
Trade Terms: FOB CHINA INCOTERMS 2010 or other terms to be negotiated
Payment Terms: Confirmed sight and irrevocable L/C
Advace 100% T/T, Western Union, etc.
Packaging: Carton ,neutral packing, or customized packing as required
Delivery Lead Time: 1-100pcs within 7 working days upon receipt of your payment;
100-3000pcs within 35 working days upon receipt of payment.
(Shipping by DHL ,Fedex,UPS or TNT.)
Our Services
After - Sales Service:
1. One-year warranty:
If with nonhuman factors quality problems in two years, Corewise assures you the repair, maintenance or replacement for free.
If with damages caused by users, you need to purchase the accessories for the repair, maintenance or replacement.
If you pay 8% more per piece, with the warranty of one-year more.
2. After the order, Corewise provides you 2% of the accessories in extra, you can select the type and quantity according to the requirements.
3. Corewise and the client undertake respectively 50% of the freight, you are in charge of the one back to China, and we, of the one delivered to you.
4. Corewise ensures to provide the same product during the continuous three years, with the same accessories. But the mainboard or the chip might be changed due to the upgrade process.
FAQ:
1.Q:Are you manufacturer?
A:Yes.Our company headquarters is located in Nanjing of China, factory in shenzhen.
2.Q:Can you provide application software for the hardware?
A:We provide free SDK and User manual of all API to support your development or programming.
3.Q:What is the warranty?
A:The warranty time is 1 year without man-made damage.
3.Q:Does the device have the language default as English?
A:Of course, our device supports multi-language such as English,Spanish, Portuguese ,French, German,Polish,Japanese, Russian and so on.
4.Q:Can your device install the Android Apps that our customers provide?
A:No problem. Just send us your Apps which you need to get the liscense of the apps and then our Engineers can do that for you.
If you have any other question about our products,please don't hesitate to contact us.We will be more than happy to serve you.
