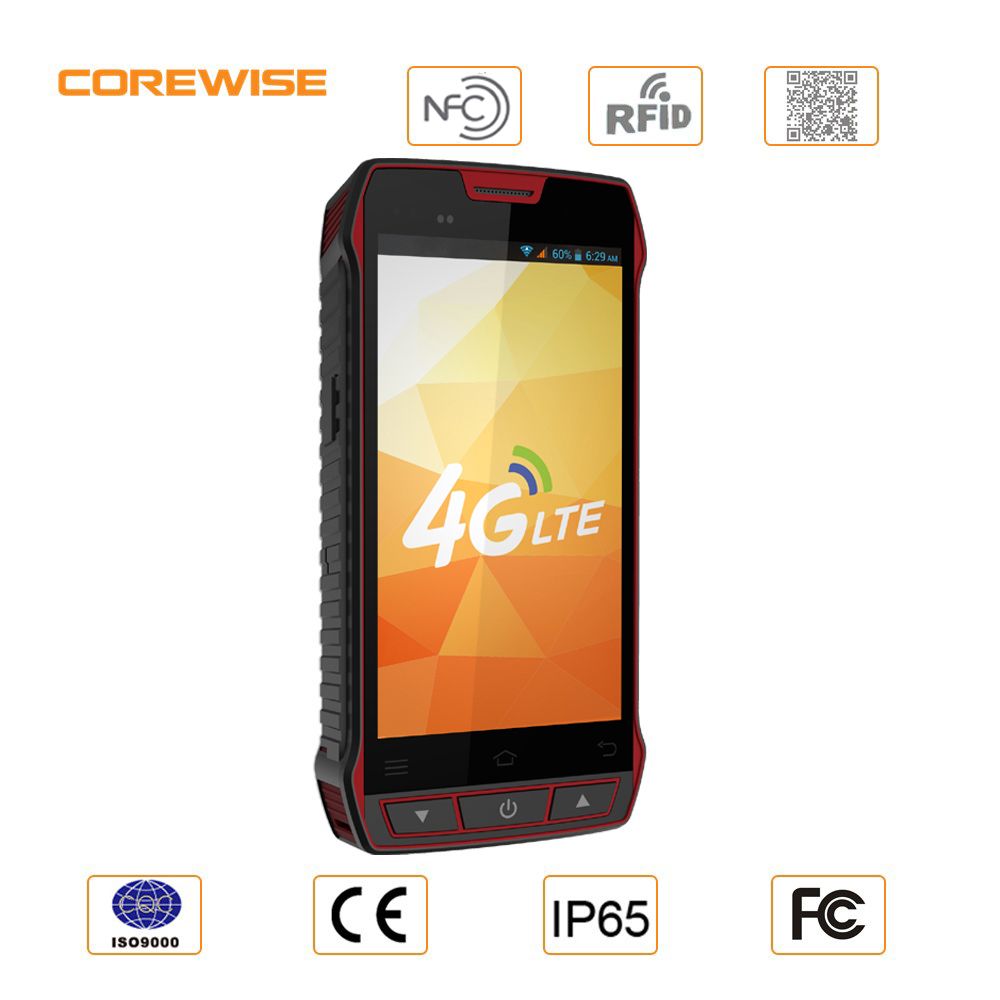

5''android RFID PDA Mobile Phone with Barcode Scanner

Prod Model:	CFON640
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type:	TFT
Screen:	4.3 Inch
Screen Resolution:	800X480
Color:	Black
Ruggedness:	IP65, Waterproof, Dustproof, Shockproof
Reliability:	Mtbf No Less Than 10000 Hours
Contactless IC Card:	ISO/IEC 14443 Type a/B
Contact IC Card:	Compatible with ISO 7816-3 and EMV 4.2
WiFi:	IEEE 802.11b/G/N
Camera:	Front 2.0m and Rear 8.0m Pixels, Auto Focus with F
Style:	3G
Screen Size:	>4.0"
Battery Capacity:	>1500mAh
Front Camera Pixel:	>2MP
Rear Camera Pixel:	>5MP
Design:	Bar
Operation System:	Android
Screen Material:	TFT
Display Color:	4096 Color
Data Interface:	Mini USB
CPU Frequency:	>1GHz
3D:	3D
Technology:	WCDMA 2100MHz CDMA 800MHz GSM 850/900/1800/1900MHz

Product Description

5''android RFID PDA mobile phone with barcode scanner
2D Barcode Scanner, Waterproof, Dustproof, Shockproof, ISO/IEC 14443 Type A/B, SO 18000-6C

Corewise Corporate Information
Nanjing Corewise Smart Technology Inc. Is a leading manufacturer of smart terminals,
Corewise is a high-tech enterprise and specialized in R&D and manufacture of smart terminal. E. G. Tablet pc, barcode scanner, RFID smart card writer/reader, biometric fingerprint sensor, Bluetooth thermal printers, police-use BTS, etc. Integrated with 3G smart phone features, these "all-in-one" terminals with superior performance can be utilized in a wide range of scenarios. Google Android downloadable apps or tailor-made software can work in conjunction with our powerful terminals to create most controllable and versatile solutions to bring human, financial, material resources as well as vehicles under absolute control.

Being at the very forefront of technical development, Corewise provide quality deliverables made of the highest industrial grade materials, with shortest lead time and sound after-sale services. Corewise help clients to deliver tangible and supremely effective solutions with sustainability and optimum effects to explore local market and expand geographic reach with product availability and backed guarantee.

Corewise is now headquartered (R&D) with product lines (PLs) in Shenzhen focusing on procurement & producing. Our annual turnover is around 15 million U. S. Dollars.

Specification
Operating System: Google Android 4.3
Screen: 4.3", 1280*720, LCD, Touch Screen
Battery: 4000mAh
3G Networks: GSM 850/900/1800/1900Mhz, WCDMA 2100Mhz (GPRS, EDGE, HSPA+), CDMA2000 EVDO
CPU Processor: Quad Core, 1.2Ghz
Storage: 1GB RAM, 4GB ROM
WiFi: 802.11 a/b/g/n
GPS: Supported
Bluetooth: BT4.0 with A2DP
USB: Mini-USB 2.0, 10-pin
Camera: 8.0M pixel
Features
RFID: ISO/IEC 14443 Type A/B, SO 18000-6C
Fingerprint Sensor: Capacitive, 508DPI
Barcode Scanner: 2D Barcode Scanner
Ruggedness: Waterproof, Dustproof, Shockproof


Free SDK
L No special training required. Customers can also set up the handheld system in other languages (besides Chinese & English).
L Open API: Free SDK, open software platform for secondary application development and customized programs.
Trade Terms
FOB China INCOTERMS 2010 or DDU Destination Port, TBD
Payment Terms
L L/C, D/P, D/A
L Advance 100% T/T
USD Account Details
BENEFICIARY: LOINCOM TECHNOLOGY CO LTD
BANK: HSBC HONG KONG (The Hongkong and Shanghai Banking Corporation Limited)
BANK ADDRESS: 9/F Tower, HSBC Centre, 1 Sham Mong Road, Kowloon, Hong Kong
SWIFT CODE: HSBC HK HHH KH
A/C NO: 808 243695 838
Delivery Lead Time
L 1~10pieces, within 5 work days upon receipt of payment
L 10~100pieces, 5+N (N=qty/10) work days upon receipt of payment
L >100 pieces, within 20 work days upon receipt of payment
Warranty and AMC
1 year (12 months upon receipt) with extended AMC on paid service basis, extended AMC will be payable, TBD, case by case by negotiation
Courier Charge for Samples
Most samples will be delivered by air express (DHL or FEDEX, etc). Courier will be charged @ USD40.00/unit from China to destination (office or home), which shall be payable on buyer account. For bulk orders, shipping cost would be reduced significantly.
Production Capacity
5000units per month for each model

Dimensions 156.8*79.5*22.2mm Weight 560g Operating System Google Android 4.3 CPU Qualcomm 8X12, 1.2Ghz, Quad Core Memory 1GB RAM, 4GB ROM Networks WCDMA 2100Mhz CDMA 800Mhz GSM 850/900/1800/1900Mhz Display 4.3 inch HD LCD, Capacitive Touch Screen, Resolution 800*480 Camera Front 2.0M and Rear 8.0M Pixels, Auto Focus with Flash GPS Integrated, 10m WiFi IEEE 802.11b/g/n Bluetooth BT 4.0 with A2DP UHF RFID ISO 18000-6C, 0-2m Contact IC Card Compatible with ISO 7816-3 and EMV 4.2  Contactless IC Card ISO/IEC 14443 Type A/B     Barcode Scanner (1D) UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2of5, Discrete 2of5, Codabar, MSI, Chinese 2of5, Matrix 2of5, Inverse 1D, Korean 3of5, GS1 DataBar, Composite Codes Barcode Scanner (2D) PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, Micro QR, QR Inverse, Aztec, Aztec Inverse, US Postnet, US Planet,     US Postal, Japan Postal, Australian Postal, Netherlands KIX Code,                           USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal Extension Storage T-Flash/Micro SD Card, up to 32GB PSAM 1 slot Battery 3.7V, 3000mAh USB Mini-USB 10pin Charger DC 5.5V 1.2A Headphone Supported, 3.5mm Speaker supported Ruggedness IP65, waterproof, dustproof, shockproof Reliability MTBF no less than 10000 hours Temperature -20~+70
