| Prod Model: |
TFT086A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| LCD Type: |
TFT |
| Controller: |
Ili9327 |
| Interface: |
8bit MCU |
| Backlight: |
4LED White |
| Resoluton: |
240*400 |
| Active Area: |
41.76 X 69.6mm |
| Outline Size: |
47.6*80.9*3.9mm |
| Operating Temperature: |
-20~70 Degree |
| Viewing Direction: |
6 O'clock |
| Usage: |
Small-sized LCM |
| Digital LCD Module Type: |
Timing Module |
| Touch Screen Type: |
Resistive |
| Type: |
Color |
| Response Time: |
10ms |
| Viewing Angle: |
IPS |
| Display Technology: |
TFT |
| DOT-Matrix Graphic LCD Module Type: |
Row/Column-Driven Control Type |
| LCD Drive Mode: |
Multiplex Drive LCD Module |
| Customized: |
Customized |
Product Description
1. Gerneral Specification
Place of Origin: Guangdong China (Mainland)
Brand Name: Huayuan
Model Number: TFT086A
Type: TFT

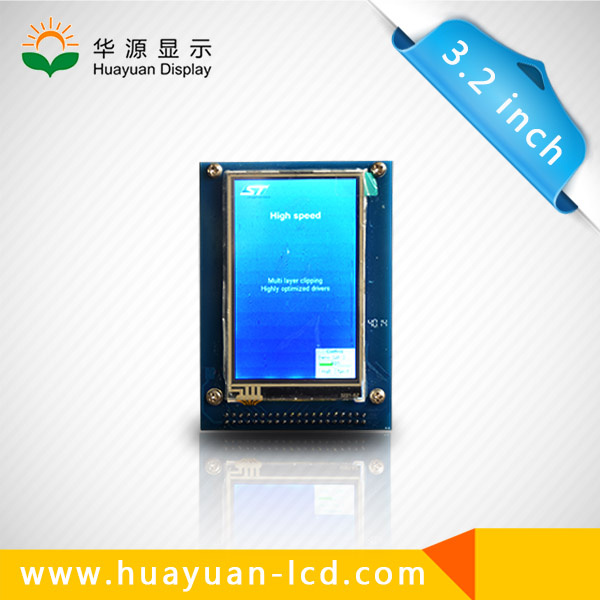

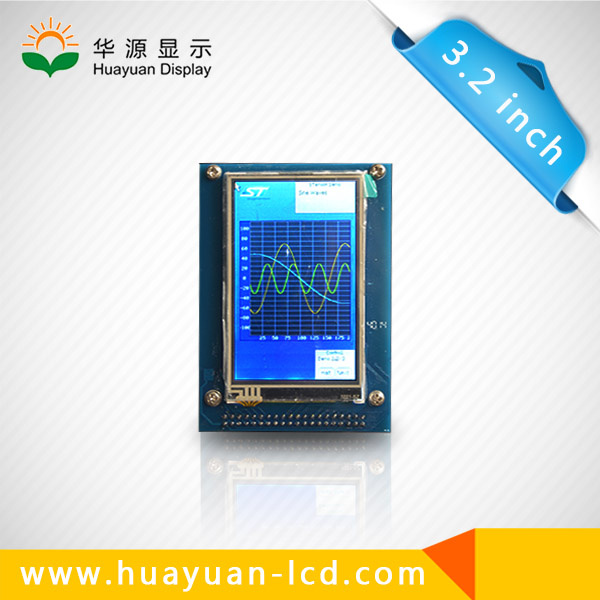

Size: 3.2 inch tft touch display
Resolution: 240x RGB x 400
Backlight: 4 LED in Series
Viewing direction: 6 O'Clock
Driver: ILI9327
Interface: 8 Bit MCU
FPC cable: 44 pin
Touch Panel: With touch panel
Active Area: 41.76 x 69.6mm
Outline dimension: 47.6*80.9*3.9mm
Operating temp: -20 to 70degree
Customized: Available
We specialized in sales of LCD/LCM/TFT liquid crystal displays. Its products are widely used in electric power terminal, numerical control, Instrumentation, medical equipment, security, tax control equipment Industrial automation and other fields.
The company can provide various specifications of TN, STN, FSTN. TFT LCD screens and solutions.
Hunan Huayuan Display Technology Co. Ltd., and Shenzhen Huayuan Display Technique Co. Ltd., which are wholly owned subsidiaries of Huayuan holding, is responsible for the R & D, production and sales of all kinds of LCD, LCM liquid crystal displays.
Hunan Huayuan Display Technology Co., Ltd. is located in Zhuzhou high tech Zone, Hunan Province. The plant area occupies 6000 square meters, with a 100000 grade purification workshop, 2 automatic SMT production lines, the aging room, laboratory and other supporting facilities. The company has a professional R & D team with high quality and high education. At the same time it has a close cooperation with Hunan University, Hunan University of
Technology and other famous domestic universities, research Institutions to focus on R & D, production of various specifications of TN, STN, FSTN, TFT modules, and a variety of customized LCD displays.
Huayuan Holding always adheres to the business philosophy of "innovation, excellence, integrity and dedication, " and strives to make the company become a global well-known enterprises.
